BTC-1833 / BTC-1835
The BTC-1833 / BTC-1835 were 16-bit ISA sound cards compatible with the Sound Blaster, Sound Blaster Pro, and Windows Sound System.
|
Released | Early 1996 |
| Bus | ISA 16-bit | |
| FM Synth | (built into chipset) | |
| Audio Codec | (built into chipset) | |
| Chipset | ESS ES1868F | |
| Standards | Ad Lib, Sound Blaster, Sound Blaster Pro, Windows Sound System | |

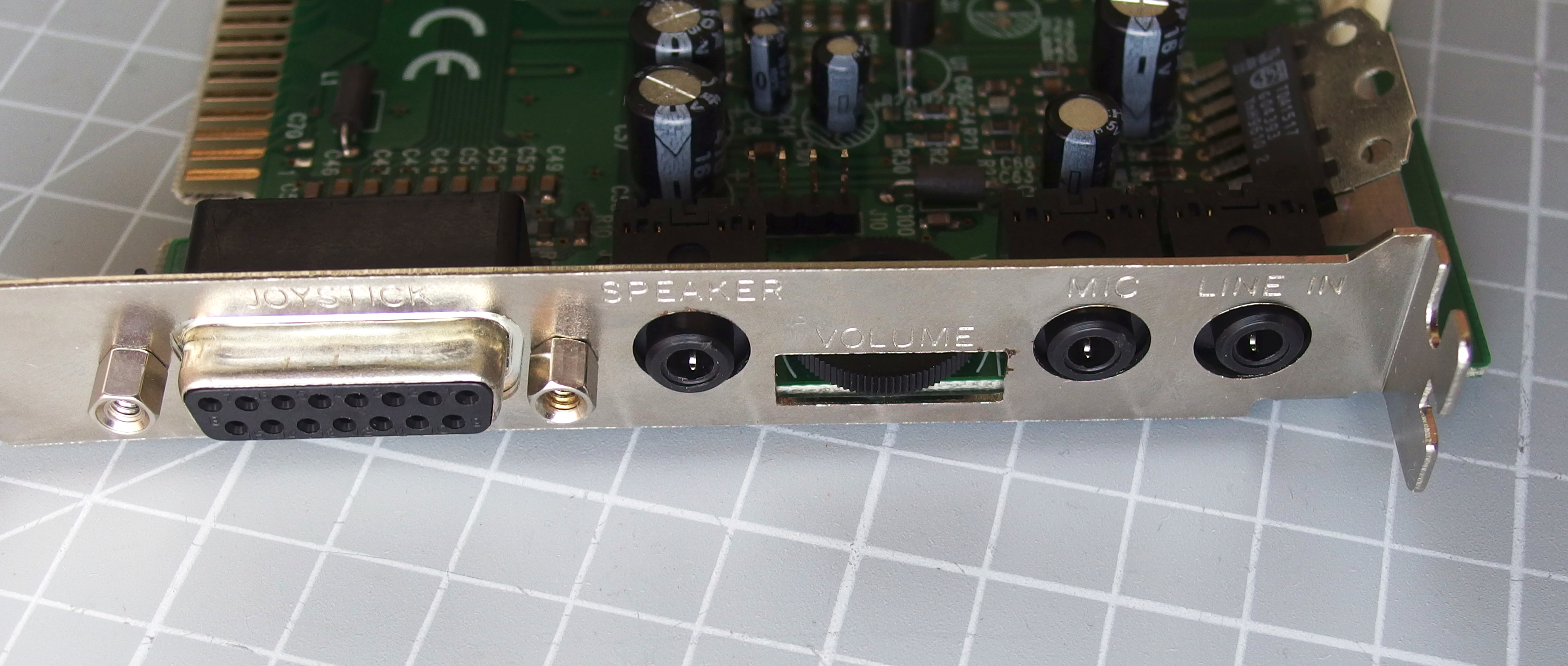

| Ports | Speaker-Out, Mic-In, Line-In (stereo), Game port, Volume thumbwheel | |
| CD-ROM | IDE | |
| Wavetable | ESS ES689F on some variants | |
| Plug & Play | Yes | |
| FCC ID(s) | E5X1835 | |
| Price | ||
| See Also |
The BTC 1833 and 1835 were Plug & Play sound cards offering 16-bit stereo sound sampling delivered at CD-quality rates up to 44.1KHz. The cards are based on the ESS ES1868F 22-voice FM music synthesizer and provides IDE CD-ROM, MPU & MIDI interfaces.
Board Revisions
Some variants come with the ES689F wavetable ICs while others do not.
Competition
In the Media
Setting it Up
I have no configuration information for these cards.
Downloads
Operation Manual Get in touch if you can provide this missing item! |
Original DOS Driver Disk Installer with ESSCFG and ESSVOL utilities. |
More Pictures

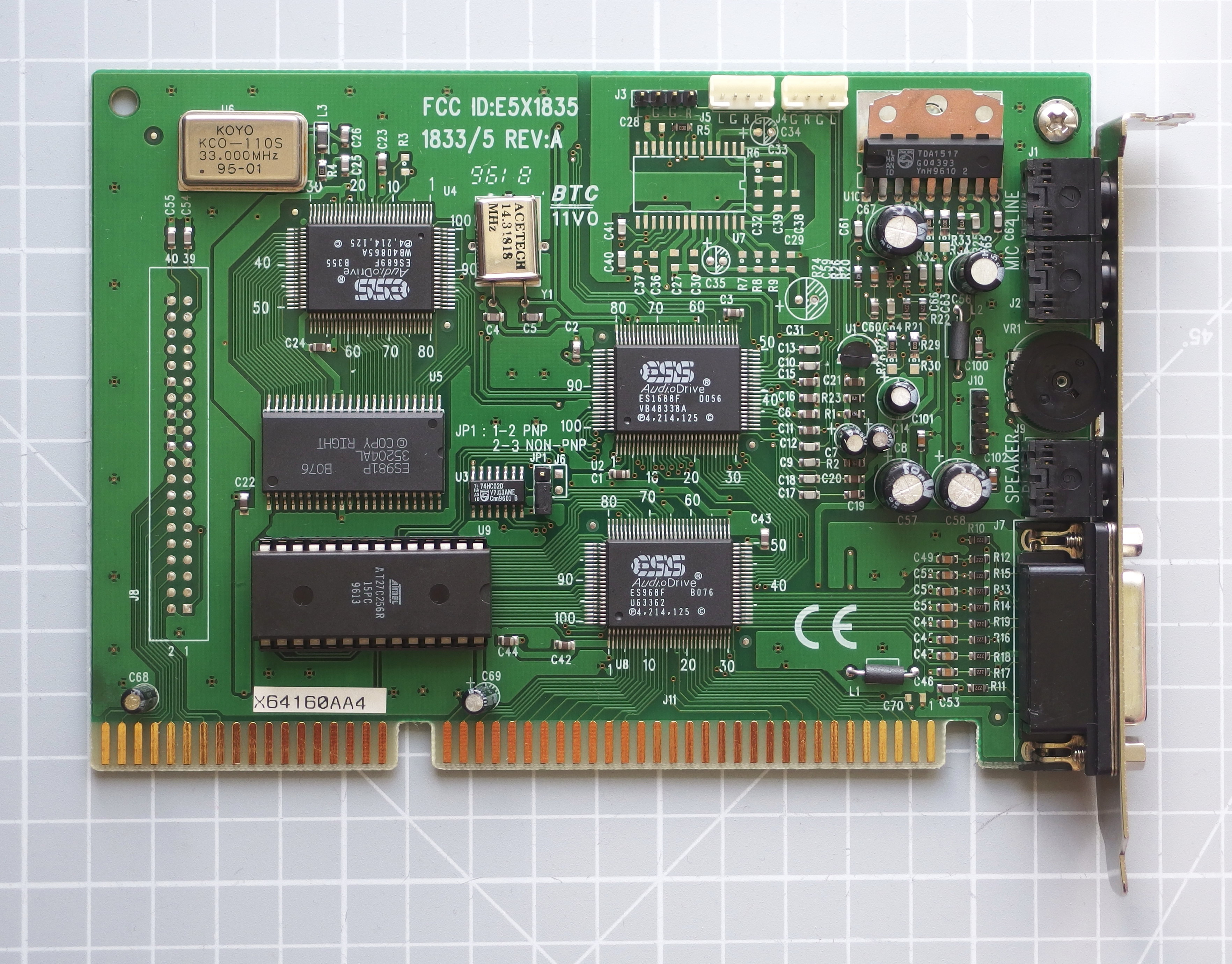

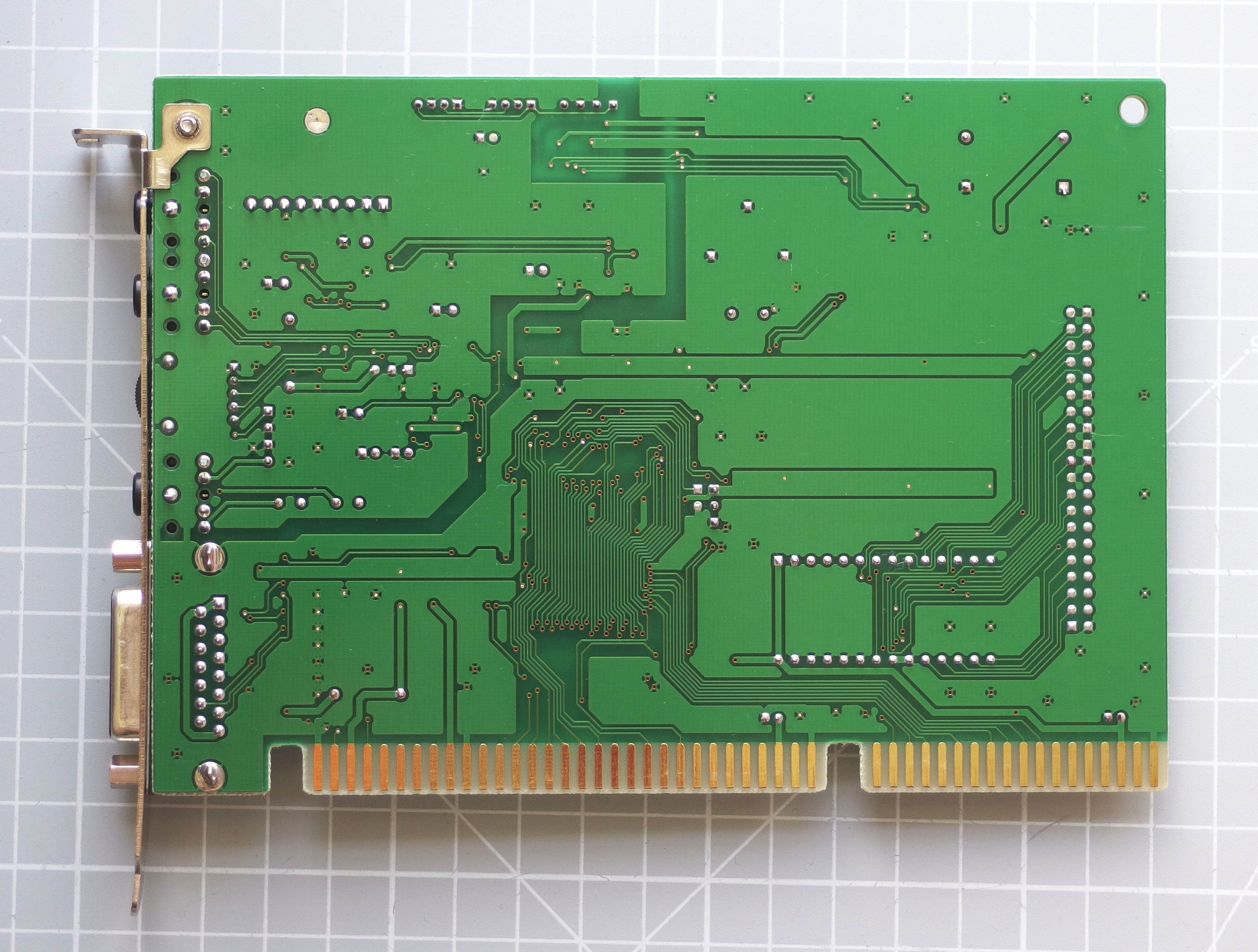

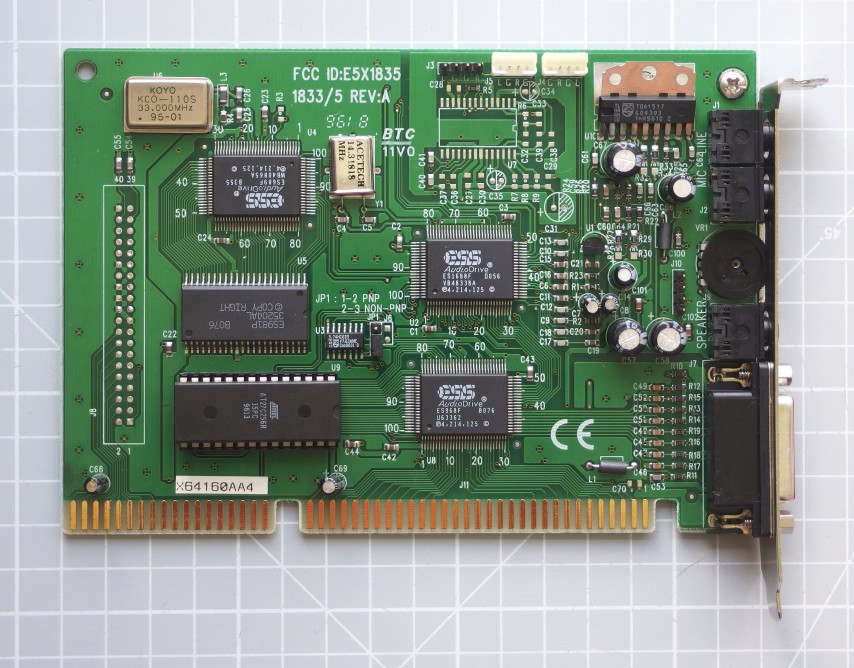

A BTC-1833/5 sound card, courtesy of DOS Days' contributor targeted
