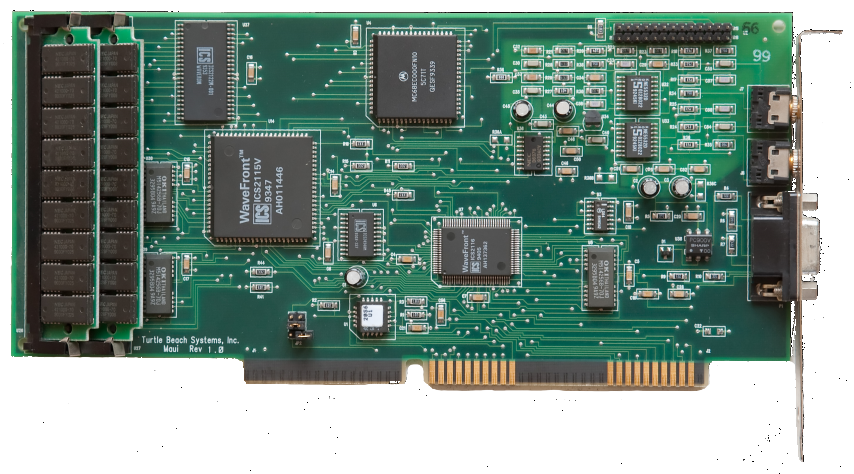

Turtle Beach Maui
As per most of the Turtle Beach cards, the Maui is "only" a MIDI card (no Sound Blaster support for example).
|
Released | Late 1993 |
| Bus | 16-bit ISA | |
| Synthesizer | ICS WaveFront 2115/2116 | |
| Chipset | Motorola 68SEC000 | |
| Standards | General MIDI (via wavetable) | |
| Ports | Mono Mic In, Stereo Speaker Out, MIDI port | |
| Memory | 2 MB sample ROM and up to 8.25 MB sample RAM | |
| CD-ROM | None | |
| FCC ID# | - | |
| Price | At launch: $140 Nov 1993: $159 Jun 1994: $159 |
|
| See Also |
Rich Heimlich said, "A solid choice for those wanting a Wave Blaster but not having a WB connector on their existing sound card. Easy to use, inexpensive, fast RAM sampling, but it's all tied to a below-average patch set". It uses the soundfonts from VoiceCrystal (same as those used by the TB Rio, TB Tropez+ and Aztech WaveRider 32).
Alternatively, the user manual states that you can use the Maui as a wavetable daughterboard by connecting its 26-pin header via a ribbon cable to the wavetable header on another sound card, and the Maui will be used for sampled sound instead of your other sound card's onboard samples.
The board uses a Motorola 68000 CPU coupled with an ICS2122 ROM chip, which is 2 MB in capacity.
To use it under DOS you need to run a TSR called SETUPSND.EXE.
ICS WaveFront datasheet
Board Revisions
Just one board revision is known: 1.0
Competition
In the Media
Setting it Up
I don't have any information on configuring the Maui.
