ATI VGA Edge series
Alongside ATI's first 2nd-gen card, the VGA Wonder+, 1990 also saw the release of the VGA Edge series which comprised the EDGE-8 (an 8-bit ISA card) and EDGE-16 (a 16-bit ISA card).
 |
Released | 1990 |
| Bus | ISA 8-bit (EDGE-8) or 16-bit (EDGE-16) | |
| Chipset | ATi 28800-2, 28800-4 or 28800-5 | |
| Standards | Hercules, CGA, EGA, VGA, and SVGA | |
| Memory | 256 KB | |
| Ports | 15-pin DSUB (RGB analogue) VESA Feature connector |
|
| Part # | ||
| FCC ID | ||
| Price | At launch: $199/$249 (EDGE-8/EDGE-16), Sep 1990: $149 (EDGE-8), Feb 1991: $139 (EDGE-16) | |
| See Also | VGA Wonder+, VGA Integra |
Designed to be low-end budget cards with the VGA Wonder+ at the higher end, they offered 800 x 600 resolution in 16 colours, and served as a price-sensitive upgrade for those still on the EGA standard.
Because of the budget-nature of the EDGE series, they omitted the 9-pin digital TTL output port as well as the bus mouse port found on the more premium ATI cards.
Board Revisions
No details are known on different revision of this card.
Competition
No details are known on the competition this card competed against.

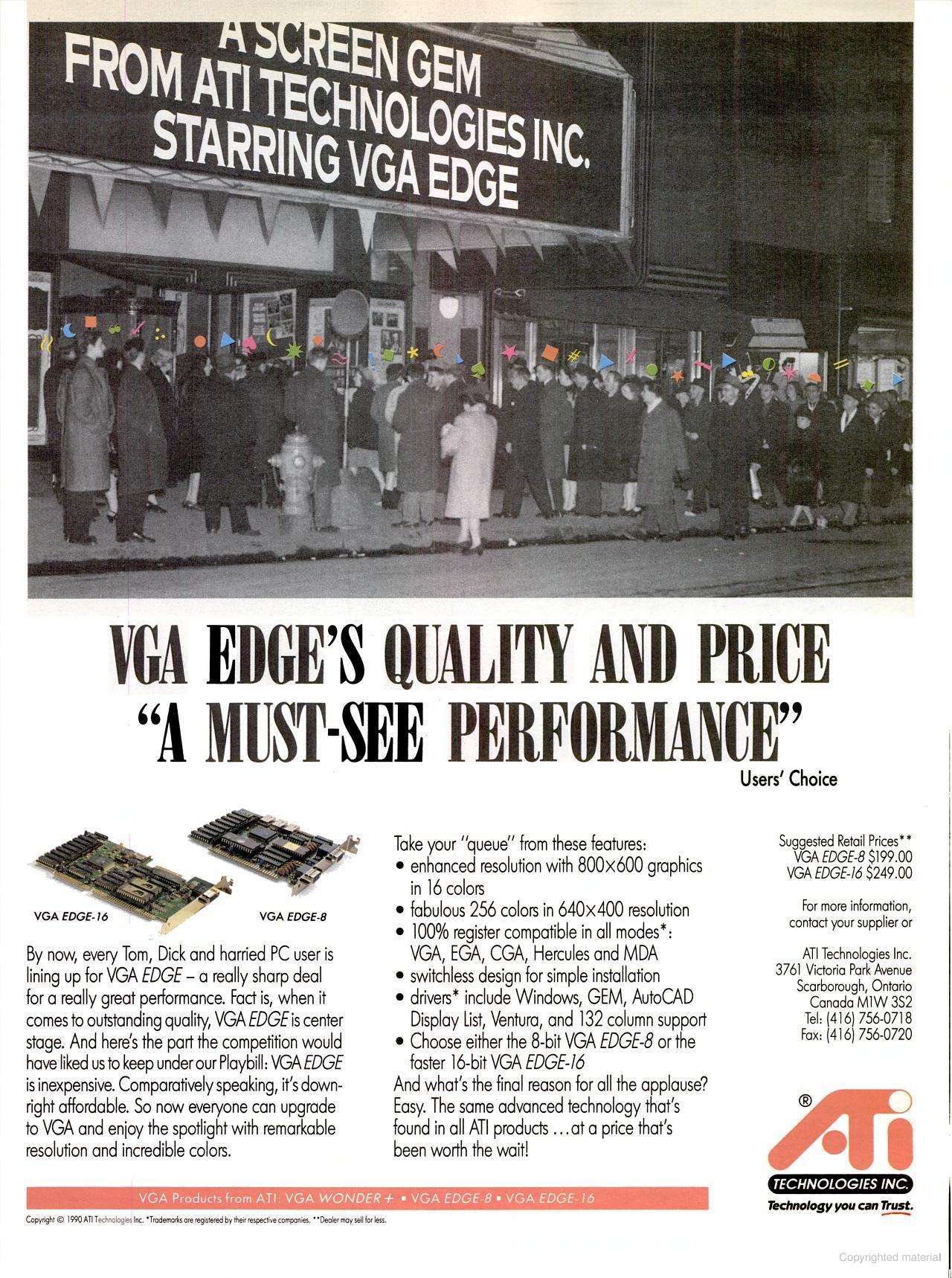

In the Media
Setting it Up
No configuration is required for the VGA EDGE series, with its auto-switching capability. The card came with a utility to force the display mode if necessary.
Downloads
Operation Manual Get in touch if you can provide this missing item! |
Original Utility Disk Get in touch if you can provide this missing item! |
VGA BIOS ROM Get in touch if you can provide this missing item! |
DOS Drivers ATI VGA Wonder Series drivers for DOS. Includes utilities, a VESA driver, a mouse driver and software drivers for WordStar 3.31, 4.0 and 5.0, WordPerfect 4.1, 4.2, and 5.0, |
Windows 3.1 Drivers ATI VGA Wonder Series drivers for Windows 3.1. |
More Pictures
No additional pictures are available.
