Flight Simulator 3.0

Released: August 1988
Published by: Microsoft
Developed by: subLogic, Inc.
Author(s): Bruce A. Artwick


Introduction

The third installment of Flight Simulator brought a lot of enhancements over its older siblings. Notably, the geographical area you could now fly in extended to cover over 100 airports, including the San Francisco Bay Area, Boston, New York, Seattle, Florida, Chicago, and Los Angeles. According to the user manual, "Flight Simulator’s “world” is more than 10,000 by 10,000 miles square, with a resolution of about one one-hundredth inch. The world encompasses the entire continental United States and extends into Canada, Mexico, and the Caribbean. The “populated” world consists of five areas and includes 118 airports, detailed in charts at the back of this manual. Winds, clouds, time of day (for dawn, day, dusk, and night flight), and navigation aids are also included."

The game featured dropdown menus that were very full-featured, covering everything from what and where you were flying, to environment controls (clouds, winds, season, time of day) and realism/reliability settings for your aircraft. Whatever you used to control your plane, be it joystick, mouse or keyboard, could be tweaked and calibrated to work precisely how you wanted.

The base game only came with three planes: Cessna Skylane, Gates Learjet, and Sopwith Camel, though you could add more planes and locations to FS3 via the Aircraft Library and Mode Library options. If you had previously bought FS2 add-on scenery, this could be converted and loaded into FS3 - a nice touch for backward compatibility.

FS3 also came with a "Flight Instruction" mode that comprised 10 basic lessons, 8 advanced lessons, and 7 aerobatic lessons. Each of these could be set to run in a sequence or run as a one-off, and you could even switch between instructor control and student control at any time.

The game supported multiple windows being open at the same time, with up to two being 3D views - this is a little clunky to use in modern times, but for 1988 it was incredible to have access to multiple windows, each one dynamically changing as you flew. You could have a top-down map in one, a view from a spotter plane in another, and the main cockpit view, for example.

With support for EGA graphics (640 x 350 maximum resolution in 16 colours), the visuals were far ahead of FS2 which topped out with CGA or Tandy/PCjr graphics. Performance certainly suffered if you ran in EGA/VGA mode on anything but the latest hardware, but as with earlier versions, many other graphics options were available. In addition, you could enable or disable some visuals via the in-game menus to further trade-off quality for speed.

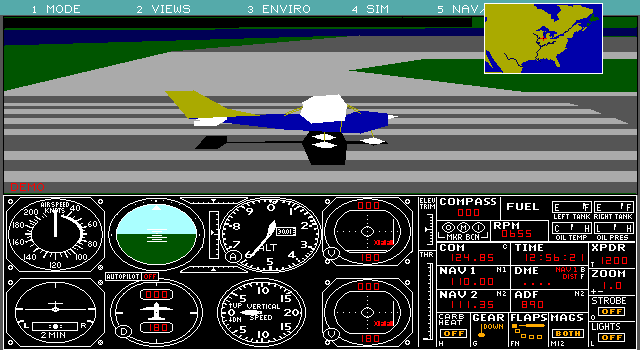

Microsoft Flight Simulator 3.00 (1988)



The ability to instantly change your coordinates to anywhere in the world without reloading the game, along with the 'slew' mode would be a feature carried forward into later versions, and demonstrated its scope to be a truly global flight simulator. The weather effects (a new feature in FS3) such as cloud cover and thunderstorms were somewhat primitive but at the time added to the immersion, along with day/night modes that operated in real time.

The game came with a few 'entertainment' scenarios to play as well, such as crop dusting or aerobatics. It also supported a multiplayer mode, over modem or direct cable connection, allowing up to four people to fly in the same airspace!

Looking back at it now, it's not all great. The 3D models are all basic filled wireframes (no texturing), the sound is pretty dreadful, the number of planes and locations is very sparse, though much better than FS2, and the clouds are simply filled white circles. We would have to wait for Flight Simulator 4 a year later to get dynamic scenery (other planes in the sky, moving ships on the water, and ground vehicles), and Flight Simulator 5 a whole 5 years later to get textured graphics and sound card support.

FS3 as we see it here was actually originally released on the Commodore Amiga and Atari ST back in 1986, and what we got for the PC almost 2 years later was essentially the same game. Overall, FS3 added a plethora of new features over FS2, making it a much more realistic, difficult (if you wanted it to be), and expansive title that would impact the flight simulation genre in a major way.



System Requirements

System Requirements Intel 8088/8086 CPU, 256 KB of RAM, DOS 2.0
Graphics support: Hercules, CGA, CGA Composite, Tandy/PCjr, Hercules InColor (720 x 348 in 16 colours), EGA and VGA (640 x 350 max. in 16 colours - no 256-colour support).
Audio support: PC speaker only
Peripheral support: Mouse, analogue joystick
Original Media Two 5.25" 360 KB (DS/DD) floppy diskettes
Installed Size (MB) 634 KB (Main program + US scenery only)


From where can it be run?

FS3 could be installed to your hard disk, or run from floppy disks. It was the first title in the Flight Simulator series that did not run as a PC booter.



Copy Protection

FS3 has no copy protection.

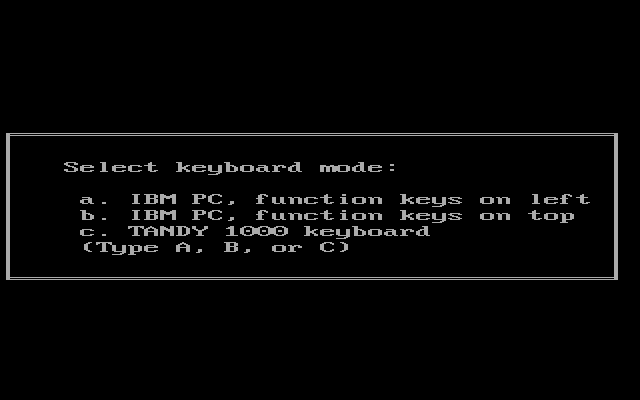

How to Setup

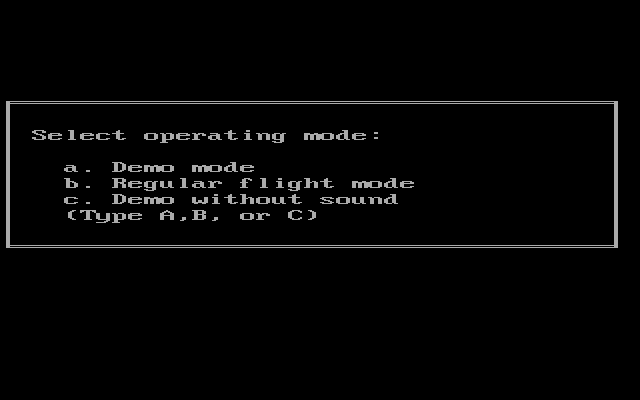

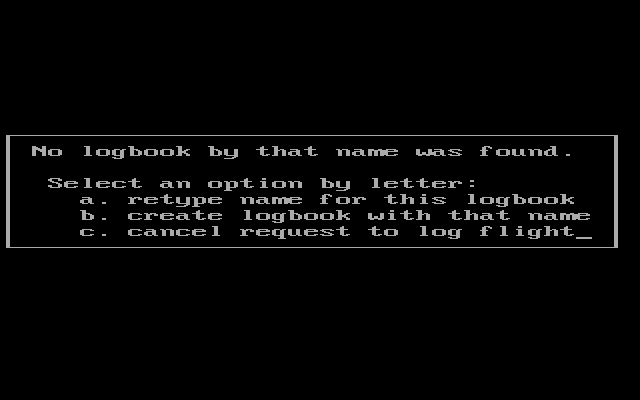

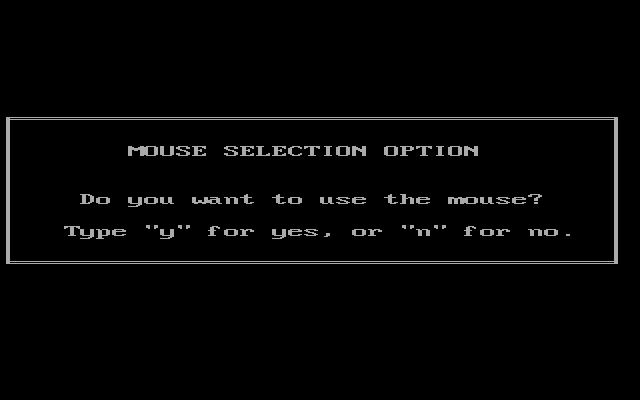

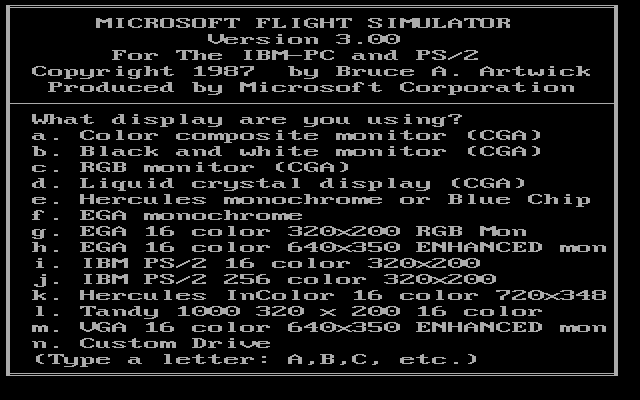

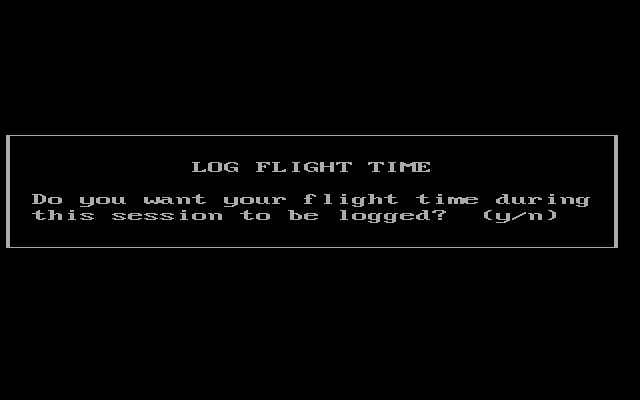

There is no installation routine or setup utility for FS3. If you wish to go through the startup questions, e.g. to run the game in a different graphics option, run FS.BAT instead of FS3.EXE. Alternatively, run FS3 x and it will take you through the following steps:


Your choices are saved in a file called AUTOEXEC.FS3 in the game directory.



Problems

Symptom: The game fails to start correctly, or I get garbled characters all over my screen.
Cause: Your setup configuration may be incorrect.
Resolution: Delete the file AUTOEXEC.FS3 and re-run the game with 'fs3 x', choosing the options that match your hardware.

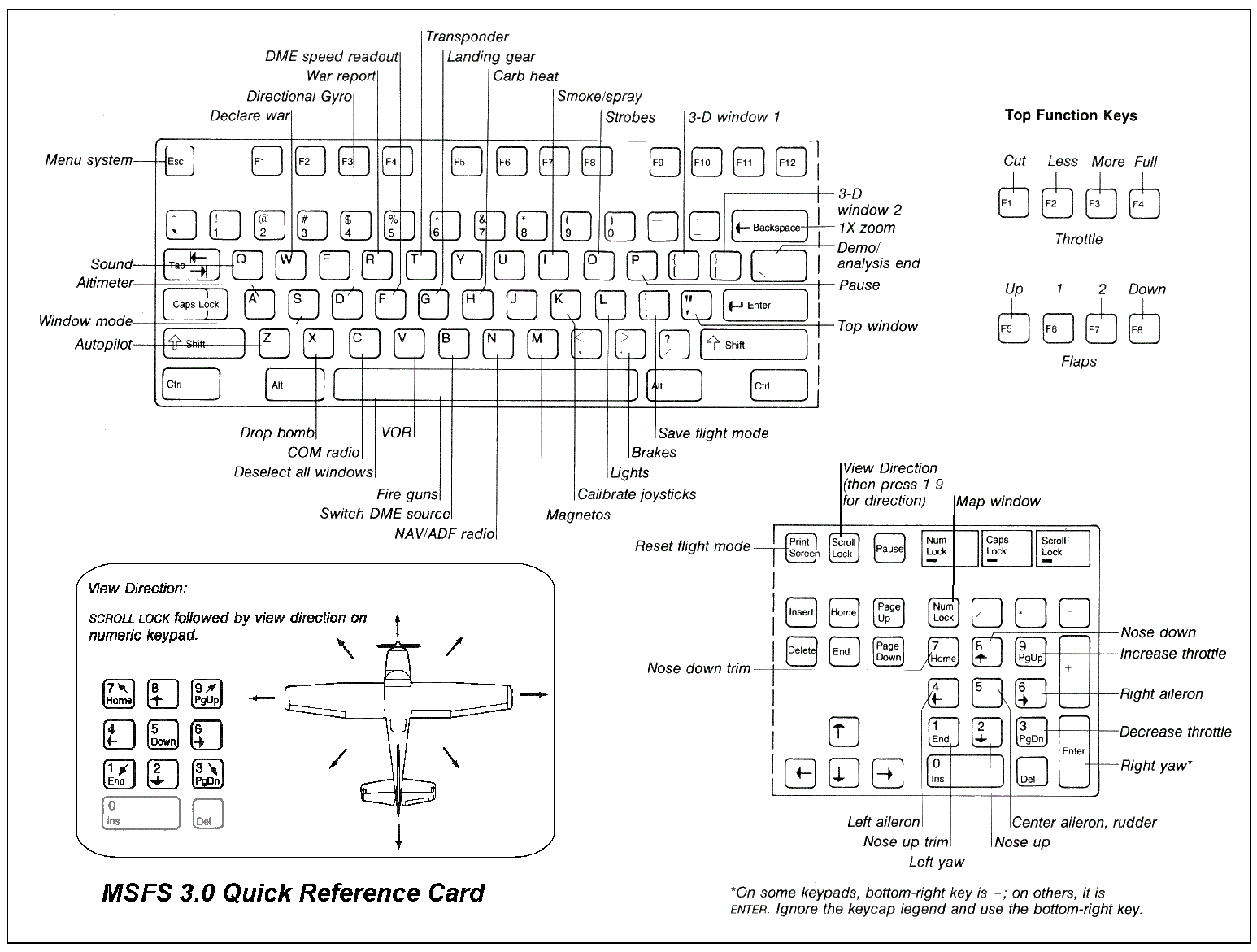

Keys

There are far too many controls in FS3 to list them all here, but here are the basic ones to get you up and running:

Flight Controls

F1 = Cut throttle
F2 = Decrease throttle 2 notches
F3 = Increase throttle 2 notch
F4 = Full throttle
F5 = Flaps Up
F6 = Flaps 15 deg.
F7 = Flaps 30 deg.
F8 = Flaps 40%
. (period key) = Wheelbrake
G = Landing gear up/down
Keypad bottom-left (0) & bottom-right (Enter) = Rudder left/right
NumPad 7 and 1 = Elevator trim

View Controls

Scroll Lock + Numeric Keypad 1-9 = Look in that direction
[ = 3D window one
] = 3D window two
NumLock = Map window
S = Cycle through Cockpit, Tower, Track, and Spot view modes
[ + or - = Zoom in/out 3D window one
] + or - = Zoom in/out 3D window two
NumLock + or - = Zoom in/out map window
Ancillary Flight Controls
L = Lights on/off
O = Strobe on/off
A = Altimeter calibrate
D = Directional gyro calibrate

Radio Controls
Press the Nav key (N) followed by the radio number.
The use + and - to increase/decrease the frequency.
Press N key twice in rapid succession, then + or - again to set the fractional frequency.
ATC Transponder reponse: Press T, TT, TTT, and TTTT followed by + and - to set the squawk frequency.

General Controls

ESC = display menu / hide menu
P = Pause simulation
Q = Sound on/off



To Quit the Game

When in-flight (not in a demo mode), press Ctrl-C to exit the game. You will be prompted to confirm with '1' for Yes, or '2' for No.



Supporting Documents



Additional Files, Drivers & Utilities

Though add-ons are commonplace in the Microsoft Flight Simulator series, there really wasn't much for FS3 apart from the subLogic scenery disks that would work with FS2 and FS3. A version was released that also contained the Western Europe scenery - this consisted of just a single file: SD-EUR.SCN. As mentioned, FS3 came with a CONVERTS.EXE file which allowed you to convert subLogic/IBM scenery disks from FS2 into FS3 format. These would be renamed to SD-1.SCN through SD-11.SCN (for the numbered subLogic scenery disks), or SD-JPN.SCN (Japan), SD-SFS.SCN (San Francisco), or SD-EUR.SCN (Europe).



Save Games

FS3 doesn't have the concept of a 'save game'.



Versions of the game known to exist

Note this page is only for Microsoft Flight Simulator 3.0 - other pages exist for other versions.

Version Date Comments
3.00 29th Aug 1988 Initial public release.


Original Floppy Disk Contents

The floppy disks have no specific volume label. Here are each disk's contents:

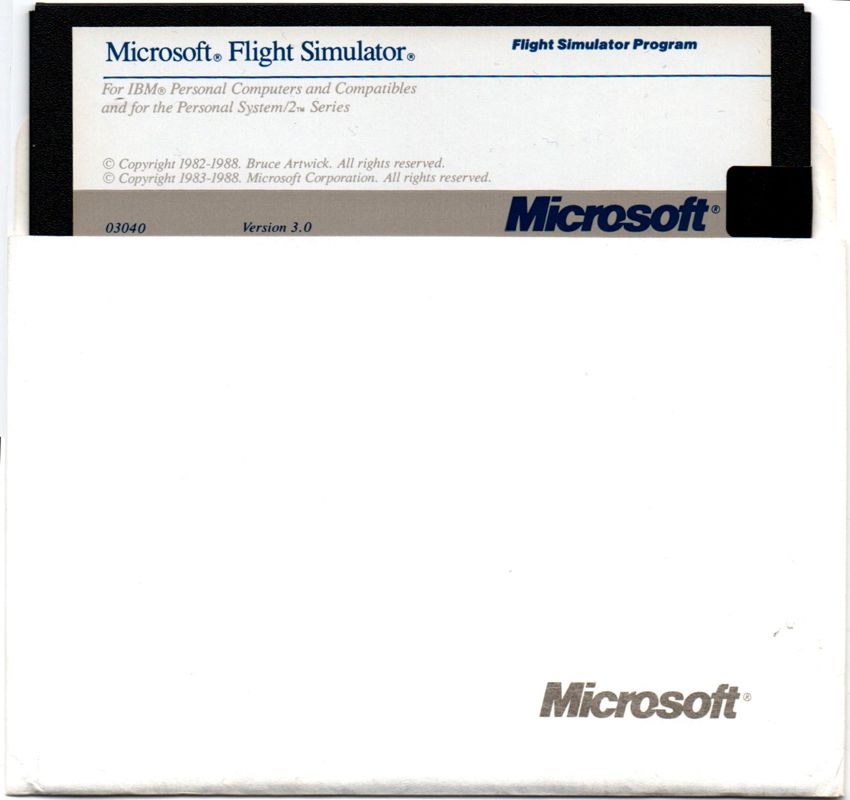

    Disk 1 of 2 (5.25" DS/DD floppy diskette)
    Program Disk:



    Directory of A:\
    A G3D 13,279 29-08-1988 12:00
    AUTOEXEC FS3 6 29-08-1988 12:00
    CGA1 GRA 19,026 29-08-1988 12:00
    CGA2 GRA 19,458 29-08-1988 12:00
    CMIEFPP MOD 518 29-08-1988 12:00
    CONVERTS EXE 3,277 29-08-1988 12:00
    EGA1 GRA 18,610 29-08-1988 12:00
    EGB1 GRA 18,418 29-08-1988 12:00
    FOREIGN FS3 19,887 29-08-1988 12:00
    FS BAT 8 29-08-1988 12:00
    FS3 EXE 70,577 29-08-1988 12:00
    INCLR GRA 19,330 29-08-1988 12:00
    MONO GRA 19,762 29-08-1988 12:00
    PS21 GRA 23,138 29-08-1988 12:00
    STR2 FS3 4,673 29-08-1988 12:00
    TGA1 GRA 21,106 29-08-1988 12:00
    _LA1 DEM 722 29-08-1988 12:00
    _LA1 FLB 1,213 29-08-1988 12:00
    _LA1 MOD 518 29-08-1988 12:00
    _LA2 DEM 605 29-08-1988 12:00
    _LA2 FLB 930 29-08-1988 12:00
    _LA2 MOD 518 29-08-1988 12:00
    _LA3 DEM 1,119 29-08-1988 12:00
    _LA3 FLB 1,004 29-08-1988 12:00
    _LA3 MOD 518 29-08-1988 12:00
    _LA4 DEM 1,651 29-08-1988 12:00
    _LA4 FLB 1,379 29-08-1988 12:00
    _LA4 MOD 518 29-08-1988 12:00
    _LA5 DEM 3,050 29-08-1988 12:00
    _LA5 FLB 1,350 29-08-1988 12:00
    _LA5 MOD 518 29-08-1988 12:00
    _LA6 DEM 1,559 29-08-1988 12:00
    _LA6 FLB 1,608 29-08-1988 12:00
    _LA6 MOD 518 29-08-1988 12:00
    _LA7 DEM 6,525 29-08-1988 12:00
    _LA7 FLB 2,095 29-08-1988 12:00
    _LA7 MOD 518 29-08-1988 12:00
    _LA8 DEM 3,295 29-08-1988 12:00
    _LA8 FLB 1,079 29-08-1988 12:00
    _LA8 MOD 518 29-08-1988 12:00
    _LE1 DEM 1,061 29-08-1988 12:00
    _LE1 FLB 1,434 29-08-1988 12:00
    _LE1 MOD 518 29-08-1988 12:00
    _LE2 DEM 905 29-08-1988 12:00
    _LE2 FLB 1,595 29-08-1988 12:00
    _LE2 MOD 518 29-08-1988 12:00
    _LE3 DEM 564 29-08-1988 12:00
    _LE3 FLB 1,297 29-08-1988 12:00
    _LE3 MOD 518 29-08-1988 12:00
    _LE4 DEM 644 29-08-1988 12:00
    _LE4 FLB 1,187 29-08-1988 12:00
    _LE4 MOD 518 29-08-1988 12:00
    _LE5 DEM 774 29-08-1988 12:00
    _LE5 FLB 1,572 29-08-1988 12:00
    _LE5 MOD 518 29-08-1988 12:00
    _LE6 DEM 997 29-08-1988 12:00
    _LE6 FLB 1,849 29-08-1988 12:00
    _LE6 MOD 518 29-08-1988 12:00
    _LE7 DEM 1,197 29-08-1988 12:00
    _LE7 FLB 1,987 29-08-1988 12:00
    _LE7 MOD 518 29-08-1988 12:00
    61 File(s) 325,090 Bytes

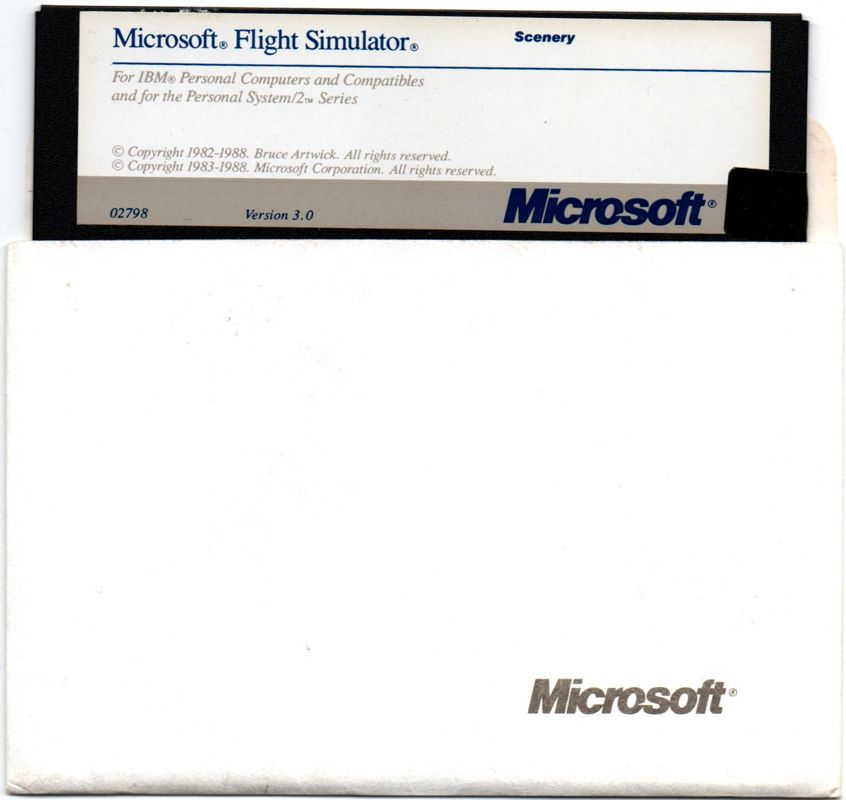

    Disk 2 of 2 (5.25" DS/DD floppy diskette)
    Scenery Disk :



    Directory of A:\
    ANALYSIS APL 4,232 29-08-1988 12:00
    CF FS3 11 29-08-1988 12:00
    CROP APL 5,401 29-08-1988 12:00
    CROP MOD 518 29-08-1988 12:00
    EFISDEMO MOD 518 29-08-1988 12:00
    F1 160,768 29-08-1988 12:00
    F6 6,680 29-08-1988 12:00
    F6C 12,234 29-08-1988 12:00
    F6CSENS 672 29-08-1988 12:00
    F6H 17,500 29-08-1988 12:00
    F6HSENS 672 29-08-1988 12:00
    F6MSENS 672 29-08-1988 12:00
    F6SENS 672 29-08-1988 12:00
    FORM APL 1,892 29-08-1988 12:00
    FORM1 DEM 1,334 29-08-1988 12:00
    FORM1 MOD 518 29-08-1988 12:00
    FORM2 DEM 1,633 29-08-1988 12:00
    FORM2 MOD 518 29-08-1988 12:00
    FORM3 DEM 2,036 29-08-1988 12:00
    FORM3 MOD 518 29-08-1988 12:00
    FORM4 DEM 1,088 29-08-1988 12:00
    FORM4 MOD 518 29-08-1988 12:00
    FORM5 DEM 1,610 29-08-1988 12:00
    FORM5 MOD 518 29-08-1988 12:00
    FORM6 DEM 902 29-08-1988 12:00
    FORM6 MOD 518 29-08-1988 12:00
    FORM7 DEM 1,228 29-08-1988 12:00
    FORM7 MOD 518 29-08-1988 12:00
    FS3 DEM 10,881 29-08-1988 12:00
    KB1 KBD 834 29-08-1988 12:00
    KB2 KBD 929 29-08-1988 12:00
    KB3 KBD 1,274 29-08-1988 12:00
    KB4 KBD 778 29-08-1988 12:00
    KB5 KBD 873 29-08-1988 12:00
    LESSONS APL 3,631 29-08-1988 12:00
    MODE1 MOD 518 29-08-1988 12:00
    MODE2 MOD 518 29-08-1988 12:00
    MODE4 MOD 518 29-08-1988 12:00
    MULTI APL 10,663 29-08-1988 12:00
    SD-EUR SCN 0 29-08-1988 12:00
    SIM1 SIM 6,336 29-08-1988 12:00
    SIM2 SIM 7,139 29-08-1988 12:00
    SIM4 SIM 6,501 29-08-1988 12:00
    STR FS3 1,574 29-08-1988 12:00
    WW1 APL 3,642 29-08-1988 12:00
    WW1 MOD 518 29-08-1988 12:00
    _LB1 DEM 1,009 29-08-1988 12:00
    _LB1 FLB 1,140 29-08-1988 12:00
    _LB1 MOD 518 29-08-1988 12:00
    _LB2 DEM 8,210 29-08-1988 12:00
    _LB2 FLB 670 29-08-1988 12:00
    _LB2 MOD 518 29-08-1988 12:00
    _LB3 DEM 791 29-08-1988 12:00
    _LB3 FLB 891 29-08-1988 12:00
    _LB3 MOD 518 29-08-1988 12:00
    _LB4 DEM 2,289 29-08-1988 12:00
    _LB4 FLB 1,758 29-08-1988 12:00
    _LB4 MOD 518 29-08-1988 12:00
    _LB5 DEM 665 29-08-1988 12:00
    _LB5 FLB 1,157 29-08-1988 12:00
    _LB5 MOD 518 29-08-1988 12:00
    _LB6 DEM 1,184 29-08-1988 12:00
    _LB6 FLB 1,454 29-08-1988 12:00
    _LB6 MOD 518 29-08-1988 12:00
    _LB7 DEM 3,199 29-08-1988 12:00
    _LB7 FLB 1,264 29-08-1988 12:00
    _LB7 MOD 518 29-08-1988 12:00
    _LB8 DEM 1,149 29-08-1988 12:00
    _LB8 FLB 1,515 29-08-1988 12:00
    _LB8 MOD 518 29-08-1988 12:00
    _LB9 DEM 1,262 29-08-1988 12:00
    _LB9 FLB 1,420 29-08-1988 12:00
    _LB9 MOD 518 29-08-1988 12:00
    _LBA DEM 2,303 29-08-1988 12:00
    _LBA FLB 1,918 29-08-1988 12:00
    _LBA MOD 518 29-08-1988 12:00
    76 File(s) 323,454 Bytes

    Europe Scenery Disk (5.25" DS/DD floppy disk):



    Directory of A:\
    README DOC 14,823 29-08-1988 12:00
    SD-EUR SCN 182,272 29-08-1988 12:00
    2 File(s) 197,095 Bytes



Installed Directory Contents

Once installed, the following directory structure exists in the game directory:



    Directory of C:\FLTSIM
    A        G3D             13,279 12-05-2024 16:06
    ANALYSIS APL 4,232 12-05-2024 16:06
    AUTOEXEC FS3 6 12-05-2024 16:06
    CF FS3 11 12-05-2024 16:06
    CGA1 GRA 19,026 12-05-2024 16:06
    CGA2 GRA 19,458 12-05-2024 16:06
    CMIEFPP MOD 518 12-05-2024 16:06
    CONVERTS EXE 3,277 12-05-2024 16:06
    CROP APL 5,401 12-05-2024 16:06
    CROP MOD 518 12-05-2024 16:06
    EFISDEMO MOD 518 12-05-2024 16:06
    EGA1 GRA 18,610 12-05-2024 16:06
    EGB1 GRA 18,418 12-05-2024 16:06
    F1 160,768 12-05-2024 16:06
    F6 6,680 12-05-2024 16:06
    F6C 12,234 12-05-2024 16:06
    F6CSENS 672 12-05-2024 16:06
    F6H 17,500 12-05-2024 16:06
    F6HSENS 672 12-05-2024 16:06
    F6MSENS 672 12-05-2024 16:06
    F6SENS 672 12-05-2024 16:06
    FOREIGN FS3 19,887 12-05-2024 16:06
    FORM APL 1,892 12-05-2024 16:06
    FORM1 DEM 1,334 12-05-2024 16:06
    FORM1 MOD 518 12-05-2024 16:06
    FORM2 DEM 1,633 12-05-2024 16:06
    FORM2 MOD 518 12-05-2024 16:06
    FORM3 DEM 2,036 12-05-2024 16:06
    FORM3 MOD 518 12-05-2024 16:06
    FORM4 DEM 1,088 12-05-2024 16:06
    FORM4 MOD 518 12-05-2024 16:06
    FORM5 DEM 1,610 12-05-2024 16:06
    FORM5 MOD 518 12-05-2024 16:06
    FORM6 DEM 902 12-05-2024 16:06
    FORM6 MOD 518 12-05-2024 16:06
    FORM7 DEM 1,228 12-05-2024 16:06
    FORM7 MOD 518 12-05-2024 16:06
    FS BAT 8 12-05-2024 16:06
    FS3 DEM 10,881 12-05-2024 16:06
    FS3 EXE 70,577 12-05-2024 16:06
    INCLR GRA 19,330 12-05-2024 16:06
    KB1 KBD 834 12-05-2024 16:06
    KB2 KBD 929 12-05-2024 16:06
    KB3 KBD 1,274 12-05-2024 16:06
    KB4 KBD 778 12-05-2024 16:06
    KB5 KBD 873 12-05-2024 16:06
    LESSONS APL 3,631 12-05-2024 16:06
    MODE1 MOD 518 12-05-2024 16:06
    MODE2 MOD 518 12-05-2024 16:06
    MODE4 MOD 518 12-05-2024 16:06
    MONO GRA 19,762 12-05-2024 16:06
    MULTI APL 10,663 12-05-2024 16:06
    PS21 GRA 23,138 12-05-2024 16:06
    SD-EUR SCN 0 12-05-2024 16:06
    SIM1 SIM 6,336 12-05-2024 16:06
    SIM2 SIM 7,139 12-05-2024 16:06
    SIM4 SIM 6,501 12-05-2024 16:06
    STR FS3 1,574 12-05-2024 16:06
    STR2 FS3 4,673 12-05-2024 16:06
    TGA1 GRA 21,106 12-05-2024 16:06
    WW1 APL 3,642 12-05-2024 16:06
    WW1 MOD 518 12-05-2024 16:06
    _LA1 DEM 722 12-05-2024 16:06
    _LA1 FLB 1,213 12-05-2024 16:06
    _LA1 MOD 518 12-05-2024 16:06
    _LA2 DEM 605 12-05-2024 16:06
    _LA2 FLB 930 12-05-2024 16:06
    _LA2 MOD 518 12-05-2024 16:06
    _LA3 DEM 1,119 12-05-2024 16:06
    _LA3 FLB 1,004 12-05-2024 16:06
    _LA3 MOD 518 12-05-2024 16:06
    _LA4 DEM 1,651 12-05-2024 16:06
    _LA4 FLB 1,379 12-05-2024 16:06
    _LA4 MOD 518 12-05-2024 16:06
    _LA5 DEM 3,050 12-05-2024 16:06
    _LA5 FLB 1,350 12-05-2024 16:06
    _LA5 MOD 518 12-05-2024 16:06
    _LA6 DEM 1,559 12-05-2024 16:06
    _LA6 FLB 1,608 12-05-2024 16:06
    _LA6 MOD 518 12-05-2024 16:06
    _LA7 DEM 6,525 12-05-2024 16:06
    _LA7 FLB 2,095 12-05-2024 16:06
    _LA7 MOD 518 12-05-2024 16:06
    _LA8 DEM 3,295 12-05-2024 16:06
    _LA8 FLB 1,079 12-05-2024 16:06
    _LA8 MOD 518 12-05-2024 16:06
    _LB1 DEM 1,009 12-05-2024 16:06
    _LB1 FLB 1,140 12-05-2024 16:06
    _LB1 MOD 518 12-05-2024 16:06
    _LB2 DEM 8,210 12-05-2024 16:06
    _LB2 FLB 670 12-05-2024 16:06
    _LB2 MOD 518 12-05-2024 16:06
    _LB3 DEM 791 12-05-2024 16:06
    _LB3 FLB 891 12-05-2024 16:06
    _LB3 MOD 518 12-05-2024 16:06
    _LB4 DEM 2,289 12-05-2024 16:06
    _LB4 FLB 1,758 12-05-2024 16:06
    _LB4 MOD 518 12-05-2024 16:06
    _LB5 DEM 665 12-05-2024 16:06
    _LB5 FLB 1,157 12-05-2024 16:06
    _LB5 MOD 518 12-05-2024 16:06
    _LB6 DEM 1,184 12-05-2024 16:06
    _LB6 FLB 1,454 12-05-2024 16:06
    _LB6 MOD 518 12-05-2024 16:06
    _LB7 DEM 3,199 12-05-2024 16:06
    _LB7 FLB 1,264 12-05-2024 16:06
    _LB7 MOD 518 12-05-2024 16:06
    _LB8 DEM 1,149 12-05-2024 16:06
    _LB8 FLB 1,515 12-05-2024 16:06
    _LB8 MOD 518 12-05-2024 16:06
    _LB9 DEM 1,262 12-05-2024 16:06
    _LB9 FLB 1,420 12-05-2024 16:06
    _LB9 MOD 518 12-05-2024 16:06
    _LBA DEM 2,303 12-05-2024 16:06
    _LBA FLB 1,918 12-05-2024 16:06
    _LBA MOD 518 12-05-2024 16:06
    _LE1 DEM 1,061 12-05-2024 16:06
    _LE1 FLB 1,434 12-05-2024 16:06
    _LE1 MOD 518 12-05-2024 16:06
    _LE2 DEM 905 12-05-2024 16:06
    _LE2 FLB 1,595 12-05-2024 16:06
    _LE2 MOD 518 12-05-2024 16:06
    _LE3 DEM 564 12-05-2024 16:06
    _LE3 FLB 1,297 12-05-2024 16:06
    _LE3 MOD 518 12-05-2024 16:06
    _LE4 DEM 644 12-05-2024 16:06
    _LE4 FLB 1,187 12-05-2024 16:06
    _LE4 MOD 518 12-05-2024 16:06
    _LE5 DEM 774 12-05-2024 16:06
    _LE5 FLB 1,572 12-05-2024 16:06
    _LE5 MOD 518 12-05-2024 16:06
    _LE6 DEM 997 12-05-2024 16:06
    _LE6 FLB 1,849 12-05-2024 16:06
    _LE6 MOD 518 12-05-2024 16:06
    _LE7 DEM 1,197 12-05-2024 16:06
    _LE7 FLB 1,987 12-05-2024 16:06
    _LE7 MOD 518 12-05-2024 16:06
    137 File(s) 648,544 Bytes




Two more demo videos of Microsoft Flight Simulator 3.00 (1988)
