A-Trend was a Taiwanese manufacturer of motherboards, graphics and sound cards for the IBM PC and its compatibles during the late DOS era.

Most well-known for their motherboards, they also produced graphics cards and sound cards from 1994 with a couple of audio offerings based on the Yamaha OPL3-SA chip, as well as Tseng Labs, S3 and 3dfx graphics cards.

Motherboards

A-Trend's motherboards are grouped into model ranges based on their chipset, with the first number denoting the chipset and the subsequent numbers denoting further differences on the board:

486 (Socket 3) Motherboards
ATC-1411A (UMC UM8496F/UM8498F)
ATC-1411B
(UMC UM8496F/UM8498F)
ATC-1415 (UMC UM8881F/UM8886AF)

Pentium Motherboards

ATC-1000+ (Intel 430VX)
ATC-1020+ (Intel 430VX)
ATC-1030 (Intel 430VX)
ATC-1040 (Intel 430VX)

ATC-2000 (Intel 430HX)

ATC-5000
(Intel 430TX)
ATC-5020+ (Intel 430TX)
ATC-5030 (Intel 430TX)
ATC-5040 (Intel 430TX)
ATC-5050 (Intel 430TX)

ATC-5130
(ALI)

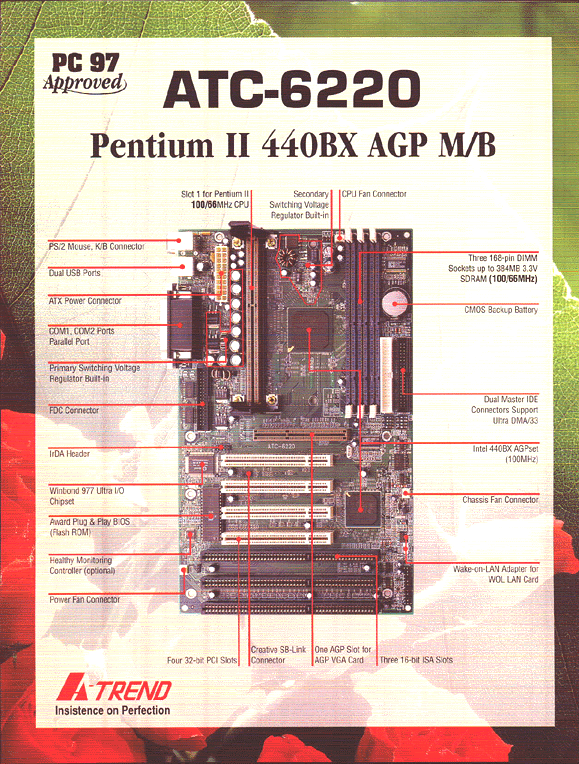

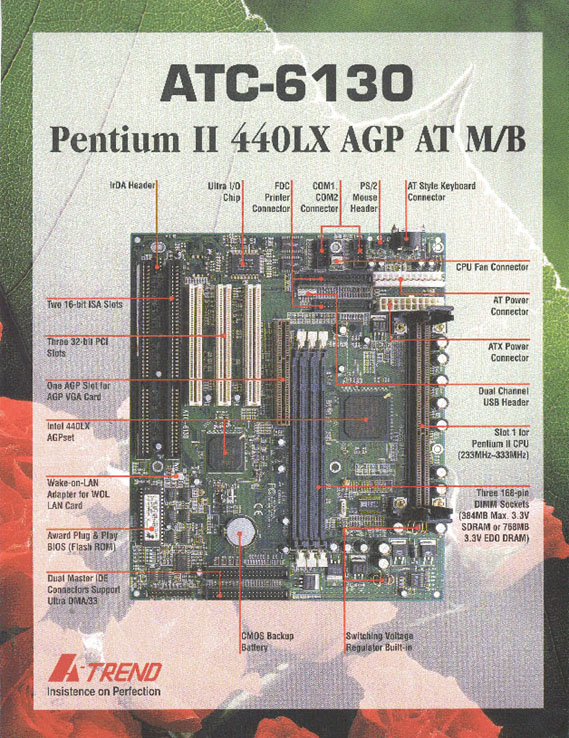

Pentium Pro / Pentium II Motherboards
ATC-6000 (Intel 440FX)
ATC-6020 (Intel 440FX)

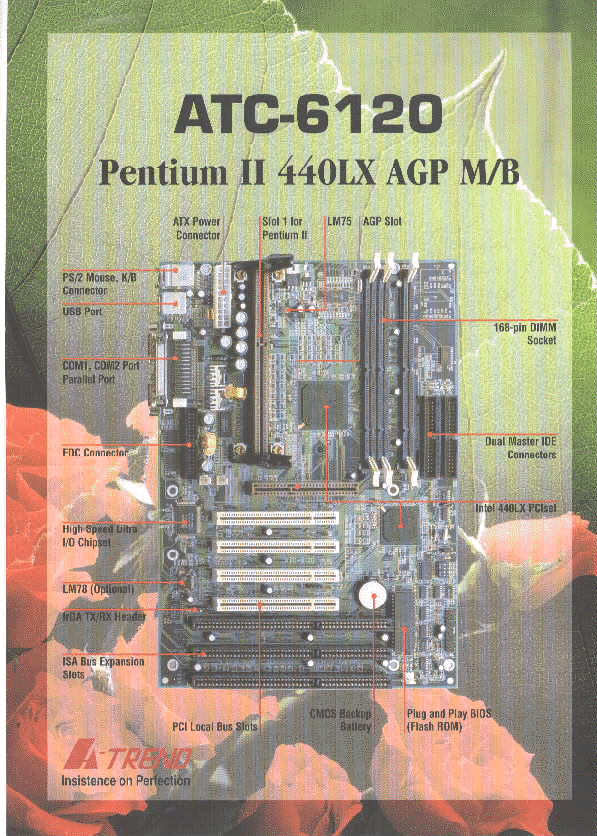

ATC-6120 (Intel 440LX)
ATC-6130
(Intel 440LX)

ATC-6220
(Intel 440BX)
ATC-6260 (Intel 440BX)



ATC-1000

Year: 1996
Type: Socket 7
Form Factor: Baby AT
Power Connector: AT
Chipset: Intel 430FX
Slots: 4 x ISA (16-bit), 3 x PCI
Memory: 4 x 72-pin SIMM (max. 128 MB of EDO or FPM)
BIOS: Award v4.51PG
Known BIOS Strings: 10/26/1999-i430FX-2A59CA29C-00
BIOS Dates:
Known Revisions:

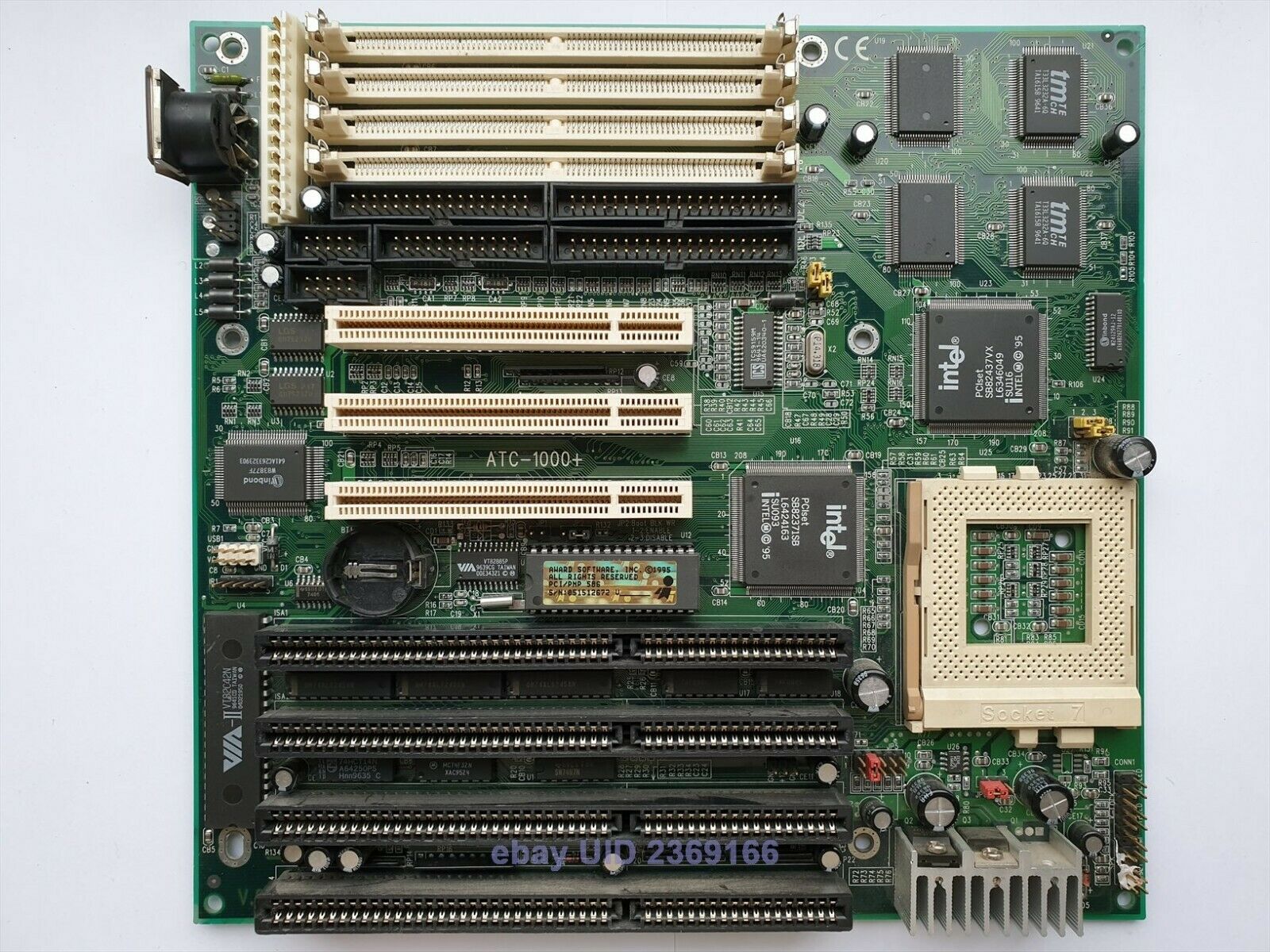

ATC-1000+

Year: 1996
Type: Socket 7
Form Factor: Baby AT
Power Connector: AT
Chipset: Intel 430VX
Slots: 4 x ISA (16-bit), 3 x PCI
Memory: 4 x 72-pin SIMM (max. 128 MB of EDO or FPM)
BIOS: Award v4.51PG
Known BIOS Strings: 09/24/97-i430VX-2A59GA29C-00
BIOS Dates:
Known Revisions:

Downloads

BIOS v1.34 - Intel 430VX PCI/ISA BIOS V1.34 (added support for AMD-K6 CPU)

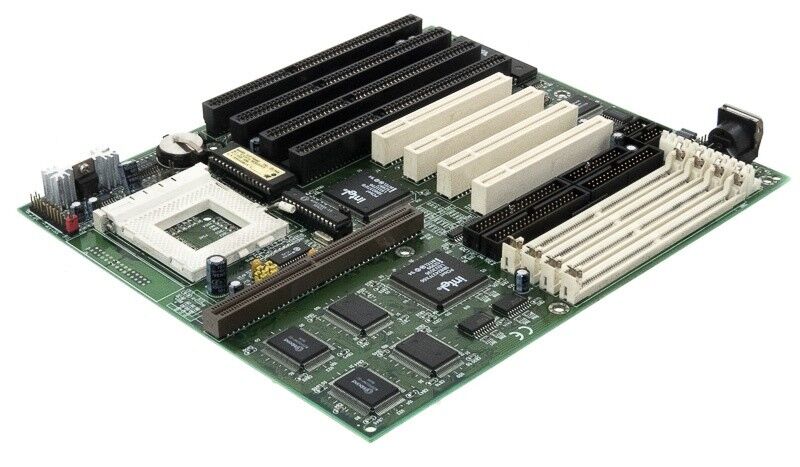

ATC-1000 Premium

Year: 1996
Type: Socket 7
Form Factor: Baby AT
Chipset: Intel 430FX Triton I
Slots: 4 x ISA (16-bit), 4 x PCI
Memory: 4 x 72-pin SIMM slots (FPM or EDO, up to 128 MB)
BIOS: Award (unknown ver - 2A59CA29)
BIOS Dates: 03/20/96
Known Revisions:

The ATC-1000 Premium supports Intel Pentium CPUs from 75 MHz up to 200 MHz. The Front Side Bus can be run at 50, 60 or 66 MHz. The 256 KB of L2 cache can be upgrade via the COAST slot for a total L2 supported of 512 KB.

This board supports Cyrix 6x86 from P120+ up to P150+.

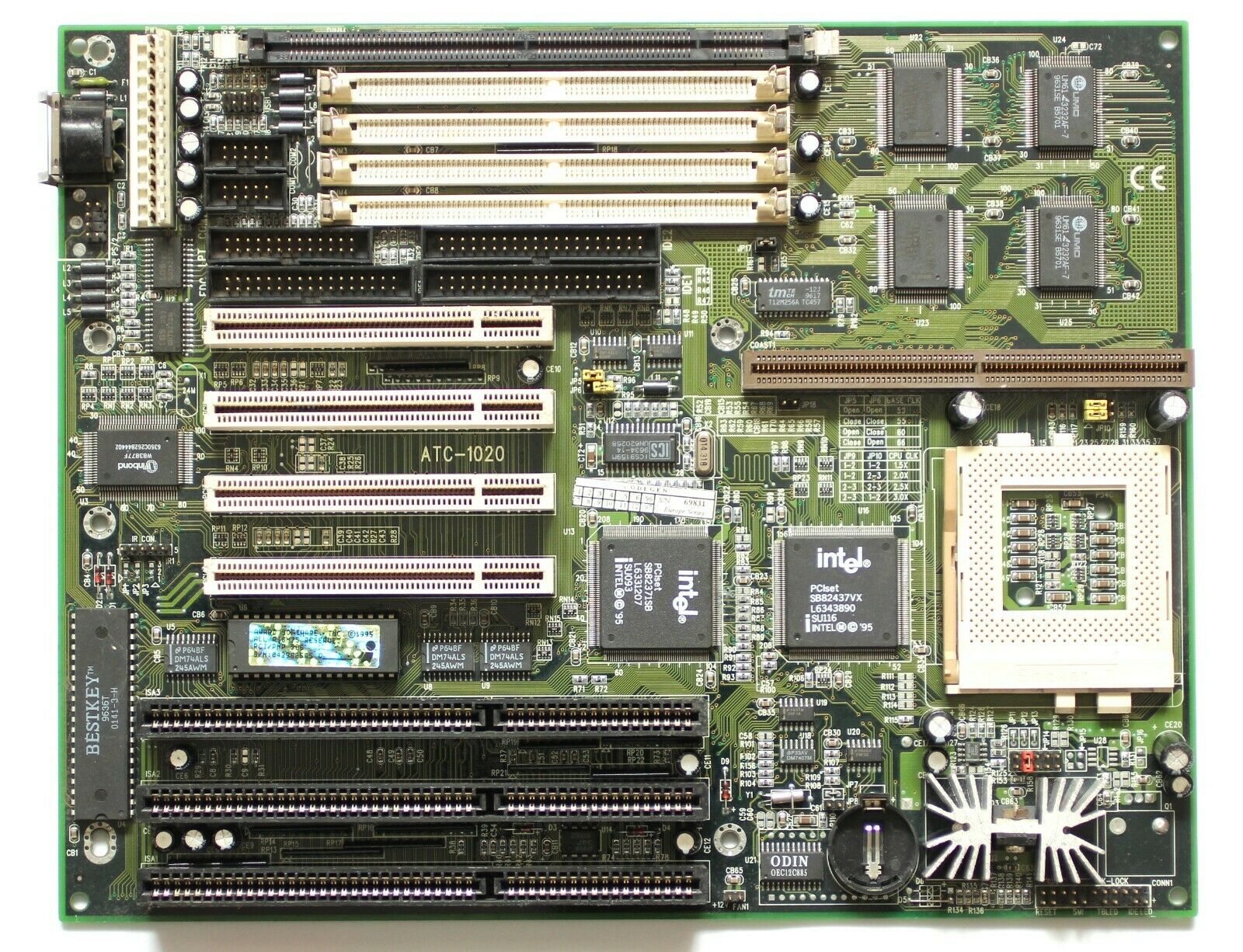

ATC-1020

Year: 1996?
Type: Socket 7
Form Factor: Baby AT
Power Connector: AT
Keyboard Connector: AT
Chipset: Intel 430VX
Slots: 3 x ISA (16-bit), 4 x PCI
Memory: 4 x 72-pin SIMM, 1 x 168-pin DIMM (128 MB max.)
BIOS: Award v4.51PG
BIOS Dates:
Known Revisions:

This board is similar to the ATC-1000+ but exchanges one ISA slot for an extra PCI slot, and comes with a COAST slot for extra L2 cache. It supports Pentium P54C from 75 MHz up to 200 MHz, with core voltages from 2.7V up to 3.5V. It also allows Cyrix 6x86 or 6x86L CPUs: PR120+, PR133+, PR150+ or PR166+, and AMD K5 or K6 PR166 or PR200. The Front Side Bus will run at 50, 60 or 66 MHz.

Memory types that work in the 72-pin SIMM slots are Fast Page Mode and EDO.

Downloads

BIOS v1.36 - Intel 430VX PCI/ISA BIOS V1.34 (added support for AMD-K6 and Cyrix MX CPU)
User manual

ATC-1030

Year: 1997?
Type: Socket 7
Form Factor: Baby AT
Power Connector: AT
Keyboard Connector: AT
Chipset: Intel 430VX
Slots: 4 x ISA (16-bit), 3 x PCI
Memory: 4 x 72-pin SIMM (maximum 128 MB FPM or EDO)
BIOS: Award v4.51PG
BIOS Dates:
Known Revisions:

CPUs Supported: Intel Pentium 75 - 233 MHz, Pentium MMX 166 - 233 MHz, AMD K6 (166 - 233 MHz), Cyrix 6x86MX.

Downloads

BIOS v1.0 02 - Intel 430VX PCI/ISA BIOS V1.34 (added support for AMD-K6 and Cyrix MX CPU)

ATC-1411A

Year: 1994
Type: Socket 3
Form Factor: Baby AT
Power Connector: AT
Keyboard Connector: AT
Chipset: UMC UM8498F/UM8496F
Slots: 5 x ISA (16-bit), 1 x ISA (8-bit)
Memory: 4 x 30-pin SIMM and 1 x 72-pin SIMM (FPM only), max. 32 MB of RAM.
BIOS: Award
BIOS Dates:
Known Revisions: 1.0

CPUs Supported: Intel 80486SX or UMC U5 (LQFP), 80486DX/DX2/DX4 up to 100 MHz including AMD and Cyrix clones. Both 5V and 3.3V CPUs are accepted.

The 30-pin SIMM sockets are Bank 0, and the 72-pin SIMM socket is Bank 1. You can fill either just Bank 0 or Bank 1, or both for a maximum of 32 MB of main memory.

Very similar to the slightly later ATC-1411B, but the 1411A has no provision for a L2 cache onboard.

ATC-1411B

Year: 1994
Type: Socket 3
Form Factor: Baby AT
Power Connector: AT
Keyboard Connector: AT
Chipset: UMC UM8498F/UM8496F
Slots: 5 x ISA (16-bit), 1 x ISA (8-bit)
Memory: 4 x 30-pin SIMM and 1 x 72-pin SIMM (FPM only), max. 32 MB of RAM.
BIOS: Award
BIOS Dates:
BIOS Strings:

               12/30/94-UMC-498GP-2C4X6A20-00
               06/20/95-UMC-498GP-2C4X6A20-00

Known Revisions:

CPUs Supported: Intel 80486SX or UMC U5 (LQFP), 80486DX/DX2/DX4 up to 100 MHz including AMD and Cyrix clones. Both 5V and 3.3V CPUs are accepted.

A very compact 486DX motherboard, with the option of a PGA-socketed 486DX CPU or PQFP soldered-in 486SX. The level 2 cache supports sizes from 32 KB up to 512 KB using 8Kx8, 32Kx8, 64Kx8 or 128Kx8 chips.

The 30-pin SIMM sockets are Bank 0, and the 72-pin SIMM socket is Bank 1. You can fill either just Bank 0 or Bank 1, or both for a maximum of 32 MB of main memory.

ATC-1415

Year: 1994
Type: Socket 3
Form Factor: Baby AT
Power Connector: AT
Keyboard Connector: AT
Chipset: UMC UM8881F/UM8886AF
Slots: 3 x ISA (16-bit), 1 x ISA (8-bit), 3 x PCI
Memory: 2 x 72-pin SIMM (FPM only), max. 64 MB of RAM.
BIOS: Award v4.50PG or v4.51PG
BIOS Dates: 11/24/1995, 07/09/1996
Known Revisions: 1.0

CPUs Supported: Intel 80486SX or UMC U5 (LQFP), 80486DX/DX2/DX4 up to 120 MHz, AMD 5x86 (up to 120), Cyrix 5x86 (up to 133) and Intel OverDrive (ODP) CPUs. Both 5V and 3.3V CPUs are accepted.

Up to 512 KB of L2 cache can be fitted.

The ATC-1415 comes with an onboard IDE controller.

ATC-1762

Year: ?
Type: Socket 3
Form Factor: AT
Chipset: ALI M1429
Slots: 3 (16-bit ISA), 3 x VLB
Memory: 72-pin SIMM and 30-pin SIMM, 6 slots in all.
BIOS: Award 4.50G
Known Revisions: 2.0

Bus speeds supported are 25, 33 and 40 MHz. 256 KB L2 cache onboard. This motherboard has a low-voltage regulator for which you can also install CPUs like the Intel 486DX4-100 100MHz or the IBM 5x86C 100MHz without using a voltage adapter.

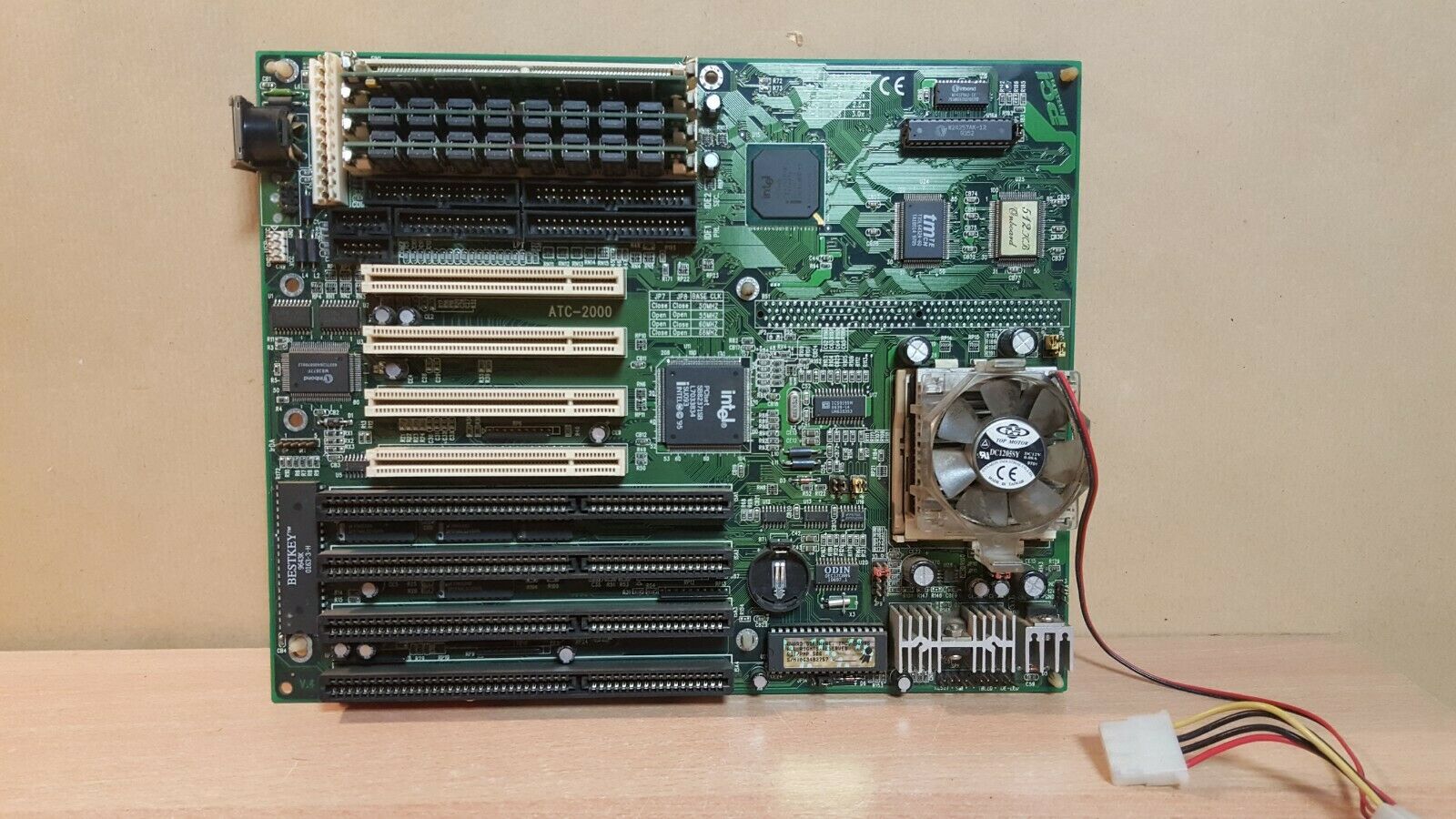

ATC-2000

Year: ?
Type: Socket 7
Form Factor: AT
Power Connector: AT
Keyboard Connector: AT
Chipset: Intel 430HX
Slots: 4 (16-bit ISA), 4 x PCI
Memory: 4 x 72-pin SIMM (up to 256 MB of FPM or EDO)
BIOS: Award 4.50G
Known BIOS Strings: 09/24/97-i430HX-2A59FA29C-00
Known Revisions: ?

CPU Support: Intel Pentium P54C and P55C (2.8V) from 75 up to 200 MHz, Cyrix 6x86/L PR120+, PR133+, PR150+ or PR166+, AMD K5 PR75, PR90, PR100, PR120, PR133 or PR166, and AMD K6 PR166 or PR200.

Comes with either 256 KB or 512 KB of L2 cache onboard.

The FSB can be driven at 50, 55, 60 or 66 MHz, with CPU clock mulitpliers of 1.5x, 2x, 2.5x or 3x.

Downloads

BIOS v1.3 02 - Intel 430HX PCI/ISA BIOS V1.3 02 (added support for Western Digital- compatible hard disk drives and support for AMD-K6)

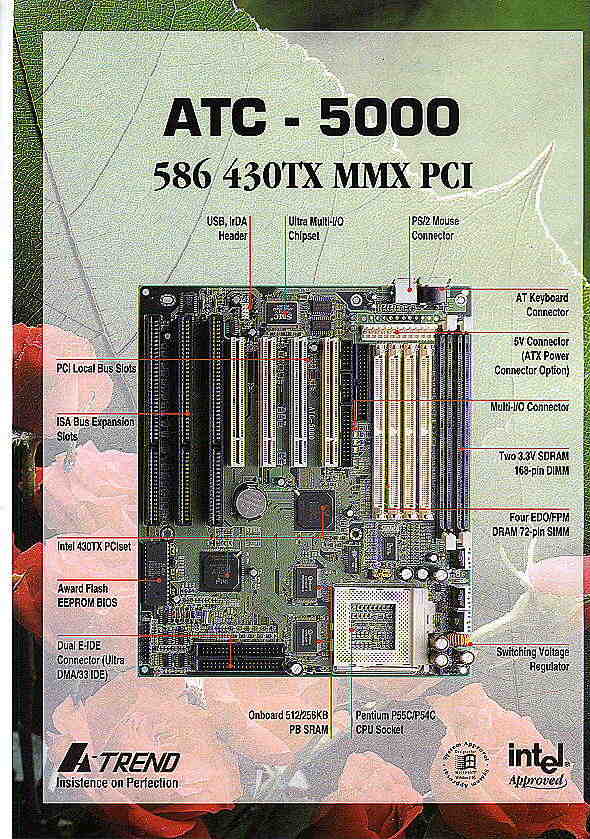

ATC-5000

Year: 1998
Type: Socket 7
Form Factor: Baby AT
Power Supply: AT
Chipset: Intel 430TX
Slots: 4 x PCI, 3 x ISA
Memory: 4 x 72-pin SIMMs, 2 x 168-pin DIMMs
BIOS: Award
Known BIOS Strings: 06/02/1999-i430TX-S672-ATC-5000C-GV
Known Revisions: ?

Processor ZIF Socket 7
Supports Intel Pentium P54C (75MHz ~ 200MHz)
Pentum MMXTM P55C (166MHz ~ 200MHz)
AMD-K6TM (166 ALR, 200 ALR, 233 ANR)
AMD-K5TM (PR 90 ~ PR166)
Cyrix 6x86MX, Cyrix 6x86L (PR 120+ ~ PR 166+)
Chipset Intel 430TX PCIset
Feature Switching Voltage Regulator built-in
Intel Labs system approved
Windows 95 system approved
Ultra DMA / 33
Architecture 32-bit PCI Bus, 16-bit ISA Bus compatible
Cache Memory Onboard 512KB / 256KB PB SRAM
System Memory Four 72-pin SIMM sockets capacity 8MB to 256MB
Support EDO DRAM, Fast Page Mode DRAM
Two 168-pin DIMM
On Board Dual Channel USB Header; IrDA TX/RX Header
Dual Bus Master IDE Ports
One F.D.C port
Two Serial Ports (16550 Fast UART Compatible)
One parallel port (EPP/ECP)
AT style keyboard connector , PS/2 Mouse header
System BIOS 1 M-bit Flash EEPROM
Award Bios with DMI , Green , Plug and Play
Expansion Slot Four PCI slots , three ISA slots
Dimension Four layers PCB
3/4 Baby AT Form Factor, 22cm x 26cm; 8.66" x 10.23"

Downloads

BIOS v1.0 06 - Intel 430TX PCI/ISA BIOS V1.0 06 (added support for AMD-K6)

More Images

ATC-5020+

Year: 1998
Type: Socket 7
Form Factor: Baby AT
Power Supply: AT
Chipset: Intel 430TX
Slots: 4 x PCI, 3 x ISA
Memory: 4 x 72-pin SIMMs, 2 x 168-pin DIMMs
BIOS: Award
Known BIOS Strings:
Known Revisions: ?

Processor ZIF Socket 7
Supports Intel Pentium P54C (90MHz ~ 200MHz)
Pentium MMXTM P55C (166MHz ~233MHz)
AMD-K6TM (166 ALR, 200ALR, 233 ANR)
AMD-K5TM (PR 90 ~ PR166)
Cyrix 6x86, Cyrix 6x86L (PR 120+ ~ PR 200+)
Cyrix 6x86MX (PR 166 ~PR 200)
Chipset Intel 430TX PCIset
Advance Feature Soft-OFF control function
Switching Voltage Regulator built-in
ACPI power management
Ultra DMA/33
USB connectors onboard
System Memory Four 72-pin SIMM sockets, Maximum 256MB
Supports EDO, and Fast Page Mode DRAM
Two 168-pin DIMM Sockets
On Board Dual USB Connectors; IrDA TX/RX Header
One Floppy port (720KB/1.44MB/2.88MB)
Two Serial ports (16550 Fast UART compatible)
Parallel port (EPP/ECP)
On Board E-IDE Two PCI BUS Master IDE Ports, support up to four devices
Enhanced IDE Driver included
Expansion Slots Four 32-bit PCI slots (Concurrent PCI 2.1)
Three 16-bit ISA slots
Connector PS/2 keyboard
PS/2 mouse
COM1, COM2
Parallel (LPT)
BIOS 1M-bit Flash EEPROM
Award PCI Bios with DMI, Green
Plug-and-Play functions
Soft-OFF control function
Dimension Four layers PCB
ATX Form Factor, 30.5cm x 21.0cm; 12.0" x 8.45"

Downloads

BIOS v1.0 02 - Intel 430TX ATX PCI/ISA BIOS V1.0 02 (added support for AMD-K6 and Cyrix 6X86MX CPU)

More Images

ATC-5030

Year: 1998
Type: Socket 7
Form Factor: Baby AT
Power Supply: AT
Chipset: Intel 430TX
Slots: 4 x PCI, 3 x ISA
Memory: 4 x 72-pin SIMMs, 2 x 168-pin DIMMs (max. 256 MB)
BIOS: Award
Known BIOS Strings:
Known Revisions: ?

The ATC-5030 is a P54C/P55C motherboard.

Support Pentium Processor For all Pentium level processor and MMX technology,
Includes Pentium MMX-233, AMD K6
Cyrix / IBM 6x86MX, IDG C6,
Support 60/66/MHz clock
Intel 82430TX Chipset For Pentium processor-based systems
Auto Detected CPU Voltage User friendly CPU installation auto Intel,AMD,
Cyrix, IDT processor's core voltage(range 2.0V~3.5V)
Two 168-pin DIMM & Four SIMM Sockets Support up to 256MB of SDRAM or EDO/FPM DRAM memory
Built-in Swithching Voltage Regulator Assists high speed processor to run smoothly
ATX & AT Power Connector ATX power meets PC'97 requirements(ACPI,
Soft-Off-Control, RTC alarm, Wake-On-LAN, Modem Ring-On)
Wake-On-LAN Function Remotely wakes up system via network with
Wake-On-LAN ethernet card
Ultra DMA/33 IDE Four 32-bit PCI slots (Concurrent PCI 2.1)
Four 16-bit ISA slots
Universal Serial Bus Header(USB) Expands and simplified PC connectivity to both current and new peripherals
4 PCI, 3 ISA slots Offers flexibility for custom configuration
PC / PCI Audio cable connector Supports Creative SB-LINK suond card mode
Advanced BIOS fuction Auto detecd ATX/AT power type, Wake-on-LAN,
Energy Saving/Management, Plug&Play, DMI,
INT13, and Anti-Virus function. Able to boot
storage drives including LS120, ZIP, SCSI, and
CD-ROM drives
Performance Enhance Driver Ultra DMA/33 IDE enhance driver
LANDesk Client Manager
Client Software(LDCM)(option)
Simplifieds local and network management of desktop system
PC Health Monitoring(opinion) Detect mainboard hardware health monitoring such as CPU temperature, fan speed, and system voltage; particular signal sound for each detection
CPU Protection Alert CPU speed to slow down and alarm when overheating occurs
Baby AT Form Factor Moat economic Pentium solution
22.2cm x 23cm; 8.74" x 9.05"

Downloads

BIOS v1.0 03 - Intel 430TX ATX PCI/ISA BIOS V1.0 03 (added support for AMD-K6 and Cyrix 6X86MX CPU)

More Images

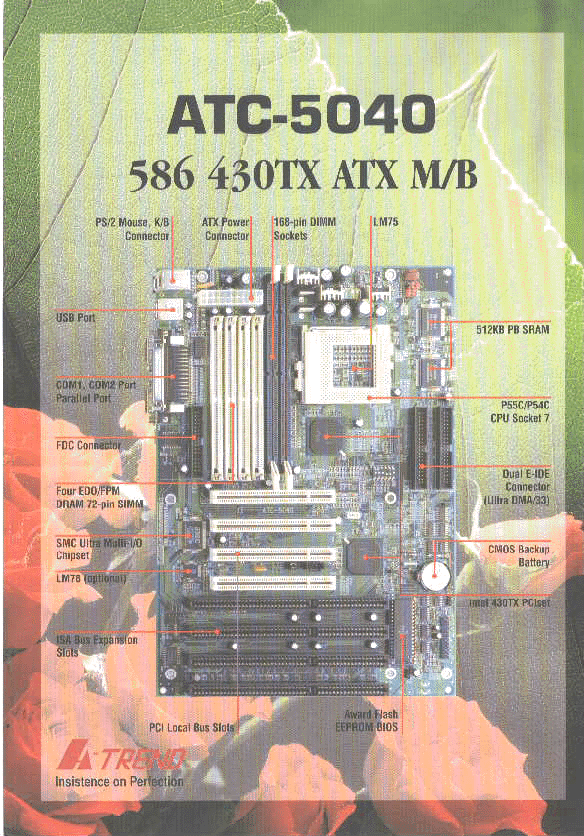

ATC-5040

Year: 1998
Type: Socket 7
Form Factor: Baby AT
Power Supply: AT
Chipset: Intel 430TX
Slots: 4 x PCI, 3 x ISA
Memory: 4 x 72-pin SIMMs, 2 x 168-pin DIMMs (max. 256 MB)
BIOS: Award
Known BIOS Strings:
Known Revisions: ?

Processor ZIF Socket 7
Supports Intel Pentium P54C (90MHz ~ 200MHz)
Pentium MMXTM P55C (166MHz ~233MHz)
AMD-K6TM (166 ALR, 200ALR, 233 ANR)
AMD-K5TM (PR 90 ~ PR166)
Cyrix 6x86, Cyrix 6x86L (PR 120+ ~ PR 200+)
Cyrix 6x86MX (PR 166 ~PR 200)
Chipset Intel 430TX PCIset
Advance Feature CPU overheat auto detected and warrning (option)
Soft-OFF control function
Switching Voltage Regulator built-in
ACPI power management
Ultra DMA/33
USB ports
System Memory Four 72-pin SIMM sockets, Maximum 256MB
Supports EDO, and Fast Page Mode DRAM
Two 168-pin DIMM Sockets for SDRAM, EDO DRAM
On Board Dual USB ports
One Floppy port (720KB/1.44MB/2.88MB)
Two Serial ports (16550 Fast UART compatible)
Parallel port (EPP/ECP)
On Board E-IDE Two PCI BUS Master IDE Ports, support up to four devices
Enhanced IDE Driver included
Expansion Slots Four 32-bit PCI slots (Concurrent PCI 2.1)
Four 16-bit ISA slots
Connector PS/2 keyboard
PS/2 mouse
COM1, COM2
Parallel (LPT)
BIOS 1M-bit Flash EEPROM
Award PCI Bios with DMI, Green
Plug-and-Play functions
Soft-OFF control function
Dimension Four layers PCB
ATX Form Factor, 30.5cm x 21.0cm; 12.0" x 8.45"

Downloads

BIOS v1.0 02 - Intel 430TX ATX PCI/ISA BIOS V1.0 02 (added support for AMD-K6 and Cyrix 6X86MX CPU)

More Images

ATC-5050

Year: 1998
Type: Socket 7
Form Factor: Baby AT
Power Supply: AT
Chipset: Intel 430TX
Slots: 4 x PCI, 3 x ISA
Memory: 4 x 72-pin SIMMs, 2 x 168-pin DIMMs
BIOS: Award
Known BIOS Strings:
Known Revisions: ?

Processor ZIF Socket 7
Supports Intel Pentium P54C (90MHz ~ 200MHz)
Pentium MMXTM P55C (166MHz ~233MHz)
AMD-K6TM (166 ALR, 200ALR, 233 ANR)
AMD-K5TM (PR 90 ~ PR166)
Cyrix 6x86, Cyrix 6x86L (PR 120+ ~ PR 200+)
Cyrix 6x86MX (PR 166 ~PR 200)
Chipset Intel 430TX PCIset
Feature CPU overheat auto detected and warrning (option)
Switching Voltage Regulator built-in
ACPI power management
ATX & AT power connector
Ultra DMA / 33
Architecture 32-bit PCI Bus, 16-bit ISA Bus compatible
Cache Memory Onboard 512KB PB SRAM
System Memory Four 72-pin SIMM sockets capacity 8MB to 256MB
Supports EDO DRAM, Fast Page Mode DRAM
Two 168-pin DIMM support SDRAM, EDO DRAM
On Board Dual Channel USB Header; IrDA TX/RX Header
Dual Bus Master IDE Ports
One F.D.C port
Two Serial Ports (16550 Fast UART Compatible)
One parallel port (EPP/ECP)
AT style keyboard connector , PS/2 Mouse header
System BIOS  1 M-bit Flash EEPROM
Award Bios with DMI , Green , Plug and Play
Expansion Slot Four PCI slots , three ISA slots
Dimension Four layers PCB
3/4 Baby AT Form Factor, 22cm x 28cm; 8.66" x 10.23"

Downloads

BIOS v1.0 02 - Intel 430TX AT/ATX PCI/ISA BIOS V1.0 02 (added support for AMD-K6 and Cyrix 6X86MX CPU)

More Images

ATC-5130

Year: 1998
Type: Socket 7
Form Factor: Baby AT
Power Supply: AT
Chipset: ALi Aladdin IV (M1531/M1543)
Slots: 4 x PCI, 3 x ISA
Memory: 4 x 72-pin SIMM and 2 x 168-pin DIMM
BIOS: Award
Known BIOS Strings:
Known Revisions: ?

Downloads

BIOS v1.0 03 - ALi Pentium AT PCI/ISA BIOS V1.0 03 (added support for AMD-K6 and Cyrix 6X86MX CPU)

ATC-5200

Year: 1998
Type: Super Socket 7
Form Factor: Baby AT
Power Supply: AT and ATX
Chipset: VIA MVP3
Slots: 4xPCI, 2xISA, 1xAGP
Memory: Three 168-pin DIMM slots (384 MB max. memory) - Up to PC100 SDRAM or EDO.
BIOS: Award
Known Revisions: ?

This appears to be a decent Super Socket 7 board, supporting 100 MHz FSB, has 512 KB of L2 cache onboard though the MVP3 chipset only has capacity to cache the first 128 MB of main memory.

CPU support for this fairly late Super 7 mobo is as you would expect, with AMD K6 and K6-2 being the most popular at the time, though it also caters for Intel Pentium MMX and Cyrix MII. CPU clock multipliers are 1.5x up to 5.5x, with voltages of 1.8, 2.2, 2.7, 2.8, 2.9, 3.2, 3.3 and 3.5V.

Anandtech did a review when this board was released - it wasn't particularly favourable, with the board failing to provide a single USB port and overall stability in question.

ATC-5220

Year: ?
Type: Super Socket 7
Form Factor: ATX
Power Connector: ATX
Keyboard Connector: AT
Chipset: VIA MVP3
Slots: 2 x ISA (16-bit), 4 x PCI, 1 x AGP
Memory: 3 x 168-pin DIMMs (up to 768 MB max.)
BIOS: ?
Known Revisions: ?

This board supports AMD K6-2+ and K6-3+ CPUs. You may need this BIOS update 2.0 01 GS.

Support up to 66, 68.5, 75, 83.3, 95, 100 and 112 MHz FSB speeds.

CPUs supported are: Intel Pentium, Pentium MMX, AMD K5, AMD K6, Cyrix 6x86/6x86MX/MII and IDT Winchip C6. Core CPU voltages range from 2.0V, 2.2V, 2.8V, 2.9V, 3.2V, 3.3V and 3.5V.

ATC-6120

Year: ?
Type: Slot 1
Form Factor: ATX
Power Connector: ATX
Keyboard Connector: PS/2
Chipset: Intel 440LX
Slots: 3 x ISA (16-bit), 4 x PCI, 1 x AGP
Memory: 3 x 168-pin DIMMs (up to 384 MB max.)
BIOS: Award
Known Revisions: ?

Processor Pentium II MMX processor 233MHz ~ 333MHz
Auto-detected CPU voltage (2.0V to 3.5V)
60/66/75/83 MHz system bus clock selection
1.5x to 5.5x frequency selection
Chipset Intel 440LX AGPset
Winbond 977AW Ultra I/O chipset with KB controller
Feature Wake-On-LAN function support (3-pin, Intel&DEC)
Switching Voltage Regulator
Support Creative SB-Link
CPU temperature monitor through thernister(option)
LDCM software(option),IDE enhanced driver
Keyboard Power On
PS/2 Mouse Power On
Archiecture 32-bit AGP PCI Bus, 16-bit ISA Bus Compatible
System Memory Three 168-pin for 3.3V SDRAM /EDO support 8/16/64/128 MB 3.3V SDRAM, or 4/8/16/32/64/128MB 3.3V EDO DRAM
Capacity 8MB~384MB SDRAM or EDO DRAM
On Board  Double high real panelDual Channel USB ports
Dual Channel USB ports
PS/2 keyboard connector;
PS/2 mouse connector(auto deteced)
Two Serial ports (16550 UART compatible)
One Parallel ports ( EPP/ECP )
One Floppy port ( 360KB~2.88MB; 3 mode)
IrDA TX/RX header
Dual Bus Master Ultra DMA/33 IDE ports,
support up to 4 IDE devices
Expansion Slots One 32-bit AGP slot
Four 32-bit PCI slots
Three 16-bit ISA slots
(one share slot)
BIOS AWARD Flash EEPROM
Soft-Off-Control, DMI, Green, and Plug-and-Play
Dimension Four layers PCB
ATX Form Factor, 30.5cm x 21.0cm; 12" x 8.26 "

Downloads

BIOS v1.0 03 - Intel 440LX ATX PCI/ISA BIOS V1.0 03 (ONLY FOR BIOS V1.0 01 AND V1.0 02 to update)
BIOS v2.0 03 - Intel 440LX ATX PCI/ISA BIOS V2.0 03 (ONLY FOR BIOS V2.0 01 to update)

More Images

ATC-6130

Year: ?
Type: Super Socket 7
Form Factor: ATX
Power Connector: ATX
Keyboard Connector: PS/2
Chipset: Intel 440LX
Slots: 2 x ISA (16-bit), 3 x PCI, 1 x AGP
Memory: 3 x 168-pin DIMMs (up to 384 MB max.)
BIOS: ?
Known Revisions: ?

Processor Pentium II MMX processor 233MHz ~ 333MHz
Auto-detected CPU voltage (2.0V to 3.5V)
60/66/75/83 MHz system bus clock selection
1.5x to 5.5x frequency selection
Chipset Intel 440LX AGPset
Ultra I/O chipset with KB controller
Feature IWake-On-LAN function support (3-pin, Intel&DEC)
Switching Voltage Regulator
Support Creative SB-Link
CPU temperature monitor through thernister(option)
LDCM software,IDE enhanced driver(option)
Keyboard Power On
PS/2 Mouse Power On
Architecture 32-bit AGP PCI Bus, 16-bit ISA Bus Compatible
System Memory Three 168-pin for 3.3V SDRAM /EDO support 8/16/64/128 MB 3.3V SDRAM, or
4/8/16/32/64/128MB 3.3V EDO DRAM
Capacity 8MB~384MB SDRAM or EDO DRAM
On Board AT(P8/P9) style keyboard connector
PS/2 mouse header
Multi-I/O connectors
One Floppy port ( 360KB~2.88MB; 3 mode)
Two Serial ports (16550 UART compatible)
One Parallel ports ( EPP/ECP )
Dual Bus Master Ultra DMA/33 IDE ports,
support up to 4 IDE devices
Dual Channel USB header (USB cable optional by order**)
IrDA TX/RX header
Power Management AT(P8/P9)and ATX power connectors bulit-in
ACPI, Power on by RTC Timer, Modem Ring On, Soft power off,
Power off by windows 95 shut down(ATX power required)
System BIOS Award BIOS with 1 Mbit Flash ROM
Support Plug& Olay, DMI, INT 13, and
LS120, ZIP, SCSI, and CD-ROM bootable function
Driver Ultra DMA/33 IDE enhance driver
Pentium II Micro code API
Expansion Slots One 32-bit AGP slot
Three 32-bit PCI slots
Two 16-bit ISA slots
(one share slot)
Healthy Monitoring
(optional)
Supports mainboard hardware health monitor,
includesCPU temperature, FAN speed, system voltage
3 types sound for different warning
Form Factor Baby AT 26.0cm x 22.0cm; 8.66" x 7.33
Four layers PCB.

Downloads

BIOS v1.0 01 - Intel 440LX ATX PCI/ISA BIOS V1.0 01 (ONLY FOR BIOS V1.0 01 to update)
BIOS v1.0 06 - Intel 440LX ATX PCI/ISA BIOS V1.0 06 (ONLY FOR BIOS V1.0 02 and V1.0 03 to update)

More Images

ATC-6220

Year: 1998
Type: Slot 1
Form Factor: ATX
Power Connector: ATX
Keyboard Connector: PS/2
Chipset: Intel 440BX
Slots: 3 x ISA (16-bit), 4 x PCI, 1 x AGP
Memory: 3 x 168-pin DIMMs (up to 384 MB max.)
BIOS: ?
Known Revisions: ?

Suppport Pentium II Processor Supports Pentium II Processors Intel's highest performing processor,featuring Dual Independent Bus architecture and MMX Technology.
Supports Pentium II 100/66MHz Host Bus Processors.
Hot key boot fail Easy to clear CMOS, and recover BIOS setting
Chipset Intel 82440BX AGPset(100MHz) for Pentium II Processor-Based Systems. Supports AGP, SDRAM, Ultra DMA/33, and ACPI.
Winbond 977 Ultra I/O chipset with KB controller.
Three 168-pin DIMM sockets Supports up to 384MB 3.3V SDRAM(66/100MB)
Error Checking and Correcting (ECC) Memory Guards against data corruption.
LANDesk Client Manager software (LDCM) (option) Simplifies local and network management of desktop systems.
Wake-On-LAN function Remote wake up system via network with Wake-On-LAN function Ethernet card.(Intel or DEC LAN Card)
Creative SB-Link PC/PCI Audio cable connector Supports Creative SB-Link PC/PCI sound card mode
PC Health Monitoring (option) Detects mainboard hardware health monitoring, such as CPU temperature, FAN speed, system voltage, 1 types sound for different warning.
Advanced BIOS Function) Award BIOS with 1Mbit Flash ROM. Supports Green, Plug&Play, DMI, INT 13.
Supports LS-120, ZIP, SCSI, and CD-ROM bootable.
66, 68, 75, 83, 100, 103, 112MHz host bus clock selection.
Universal Serial Bus connector(USB) Expands and simplifies PC connectivity to both current and new peripherals.
ACPI Power Management ATX power meets PC'97 requirements: ACPI, K/B Power On, PS/2 Mouse Power On, Power On By RTC Timer, Modem Ring On, Power Off by Windows 95 Shutdown.
Ultra DMA/33 IDE Offers double the speed of E-IDE (33MB/sec).
Expansion 1 AGP, 4 PCI, 3 ISA Slots.
ATX form factor Complies with Intel ATX standard, 30.5cm(12.0'') x 18.5cm(7.28''), 4 layer PCB.
Other features Easy installation, auto detecting CPU core voltage. Selectable functions of Spread spectrum.

Downloads

BIOS v1.03 - Intel 440BX PCI/ISA BIOS V1.03

More Images

ATC-6260

Year: 1998
Type: Slot 1
Form Factor: ATX
Power Connector: ATX
Keyboard Connector: PS/2
Chipset: Intel 440BX
Slots: 2 x ISA (16-bit), 4 x PCI, 1 x AGP
Memory: 4 x 168-pin DIMMs
BIOS: ?
Known Revisions: ?

The ATC-6260 was a dual-Slot 1 motherboard, allowing for two Pentium II CPUs. It also came with onboard 64-bit Ultra-Wide and Ultra SCSI. Like the ATC-6220 the 6260 also supported Creative's SB-Link PC/PCI interface for legacy DOS sound cards.



Graphics Cards

ATC-2125

Introduced: 1994
Chipset: S3 Trio64 (764)
Bus: PCI, VLB or AGP 2x
Memory: 1 or 2 MB
RAMDAC Speed: ? MHz
FCC ID:



Downloads

VGA BIOS - ATC-2125 VGA BIOS v1.20-07

ATC-2165A

Introduced: 1995
Chipset: Tseng Labs ET6000
Bus: PCI
Memory: 2 or 4 MB
RAMDAC Speed: ? MHz
FCC ID:

Downloads

VGA BIOS - ATC-2165A VGA BIOS v0.16

ATC-2315

Introduced: 1995
Chipset: S3 Trio64V+ (765)
Bus: PCI
Memory: 1, 2 or 4 MB
RAMDAC Speed: ? MHz
FCC ID:

Downloads

VGA BIOS - ATC-2315 S3 Trio64V+ VGA BIOS v1.03-06

ATC-2325A / ATC-2325B

Introduced: 1995
Chipset: S3 ViRGE (325)
Bus: PCI
Memory: 2 MB or 4 MB EDO
RAMDAC Speed: ? MHz
FCC ID:

Downloads

VGA BIOS - ATC-2325A/B S3 ViRGE VGA BIOS v1.00-06

ATC-2335A/B

Introduced: 1997
Chipset: S3 Trio64V2/DX (775)
Bus: PCI
Memory: 2 MB or 4 MB
RAMDAC Speed: ? MHz
FCC ID:

Downloads

VGA BIOS - ATC-2335A/B S3 Trio64V2/DX VGA BIOS v1.02-12

Helios 3D II (ATC-2455 / ATC-2455P)

Introduced: 1998
Chipset: 3dfx Voodoo2
Bus: PCI
Memory: 8 or 12 MB EDO
RAMDAC Speed: ? MHz
FCC ID:



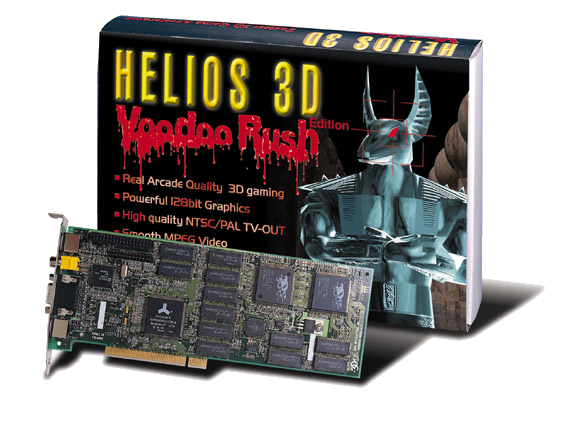

Helios Voodoo Rush Edition 3D VGA (ATC-2475)

Introduced: 1998
Chipset: 3dfx Voodoo Rush
Bus: PCI
Memory: 6 MB EDO
RAMDAC Speed: 175 MHz
FCC ID:

A combined 2D and 3D accelerator card that typically came with either 4 MB or 8 MB of video memory, but the Helios comes with 6 MB which is likely split into 2 MB for the 2D frame buffer and 4 MB for a 3D texture buffer.

Real Arcade Quality 3D gaming
Powerful 128-bit Graphics
High quality NTSC/PAL TV-OUT
Smooth MPEG Video
Designed based on advanced 3Dfx Interactive Voodoo Rush chipset with H/W triangle setup
High performance 128bit Alliance ProMotion AT3D/25 graphics processor
175MHz RAMDAC supports higher display quality
Best TV-OUT quality Chrontel CH7002 chip supports NTSC/PAL output
Fast 6MB EDO DRAM
PCI 2.0 & 2.1 compliant
Fast DirectX support 2D/3D and video applications
VESA DPMS, DDC 1, DDC 2B support for Plug &Play operation
VMI connector for DVD and live video input
Bundled with 3D game titles
High performance drivers for Windows 95
Provide multi-language Utility for "Display Control Panel" in user friendliness
Multi-language user's manual

Downloads

VGA BIOS - ATC-2475 Voodoo Rush BIOS (adds support for both NTSC and PAL modes)

More Images

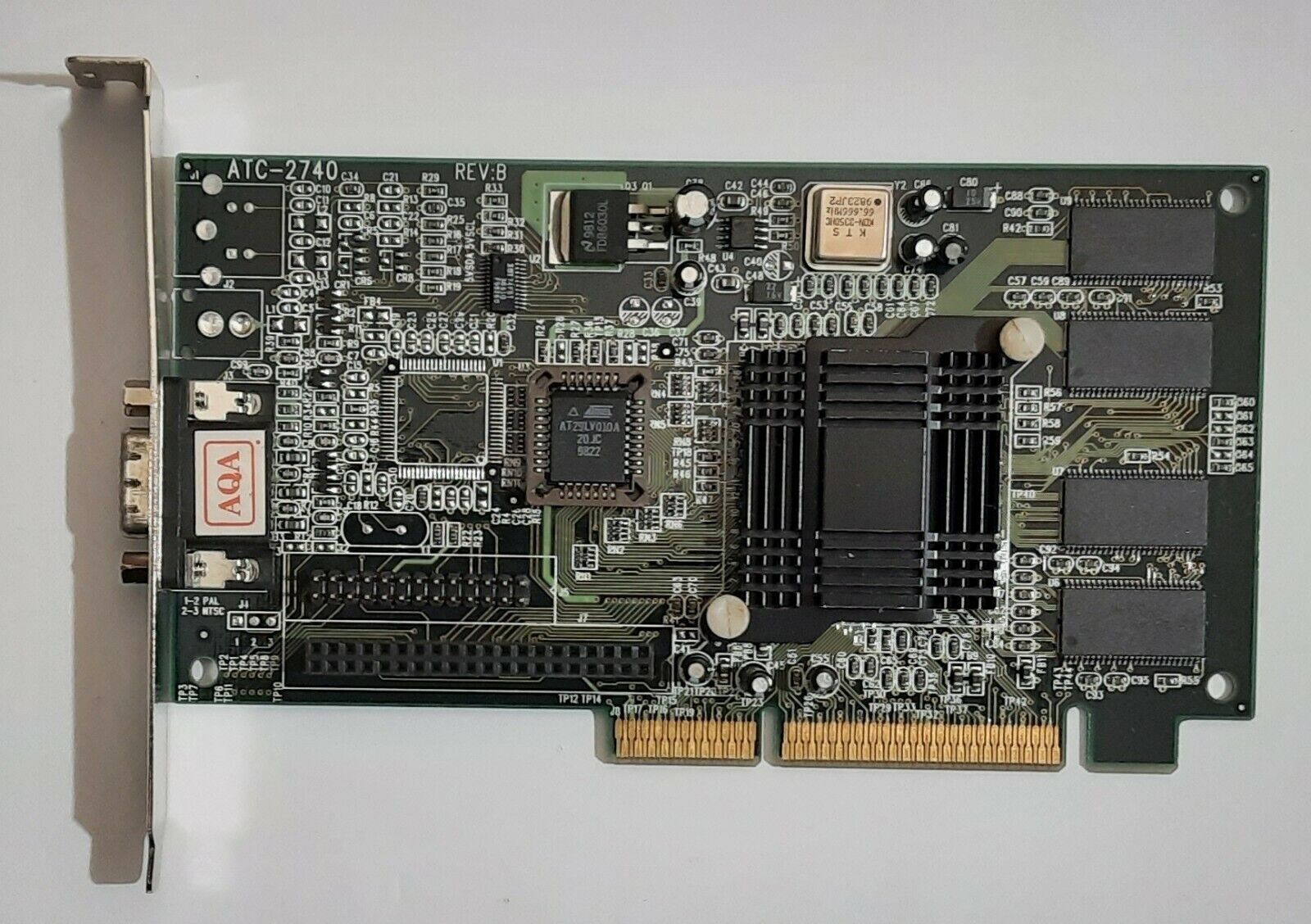

Speedy 3D (ATC-2740)

Introduced: 1999?
Chipset: Intel i740
Bus: AGP (4x?)
Memory: 8 MB
RAMDAC Speed: ? MHz
FCC ID:



Sound Cards

ATC6631

Introduced: 1996
FM Synthesizer: Yamaha OPL3-SA3 (YMF715B-S)
Bus: 16-bit ISA
FCC ID:

A-Trend dipped their toe into audio card technology in 1996 with the release of the ATC-6631. Based on the Yamaha YMF715, this provided Ad Lib, Sound Blaster, Sound Blaster Pro and 3D positional audio capability on a budget card. It is their version of the excellent Yamaha Audician 32 Plus, which I did a full review on.

Some ATC-6631s are fitted with the YMF719E-S instead of the 715 - no material difference exists between these.

Holes for an IDE interface connector are also visible - another sign of this being a budget / cost-reduced offering for the OEM market.

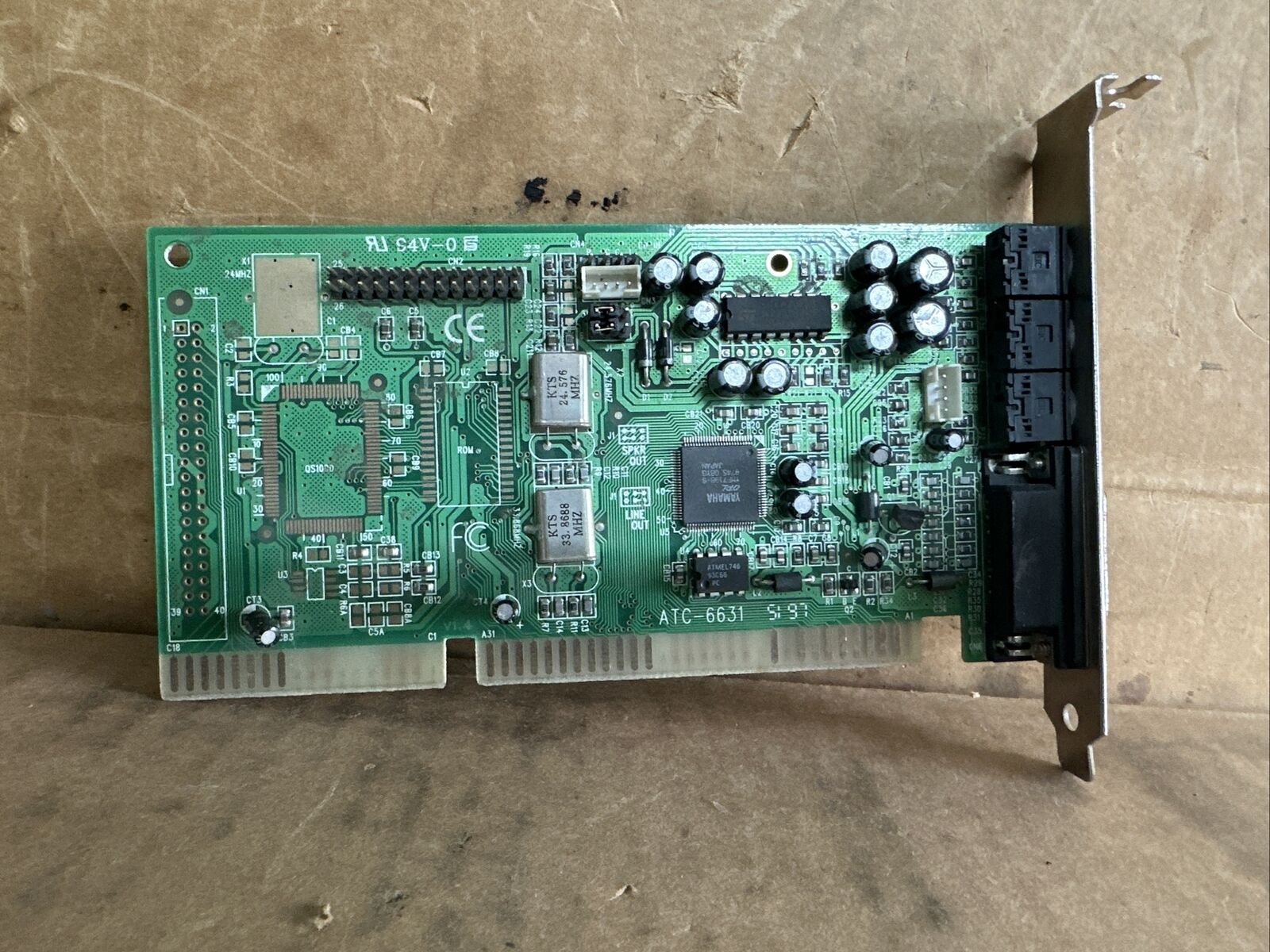

As you can see from the image above, the card had provision for an onboard wavetable synthesizer in the form of the low-cost AdMos QDSP QS1000, though I've never come across a card with it populated. As with the majority of mid-90s sound cards, it does come with a wavetable header so you can alternatively install a wavetable daughterboard.

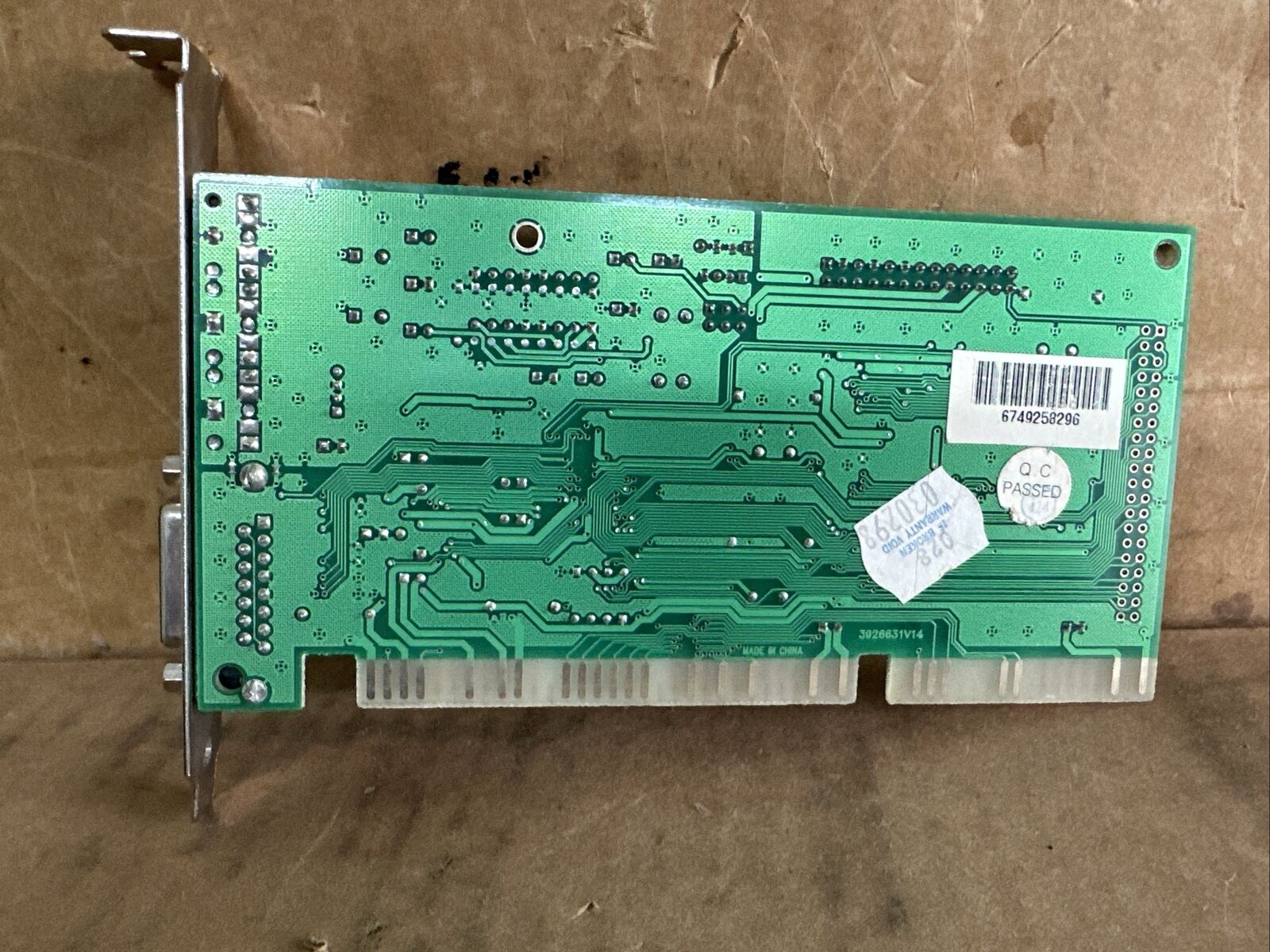

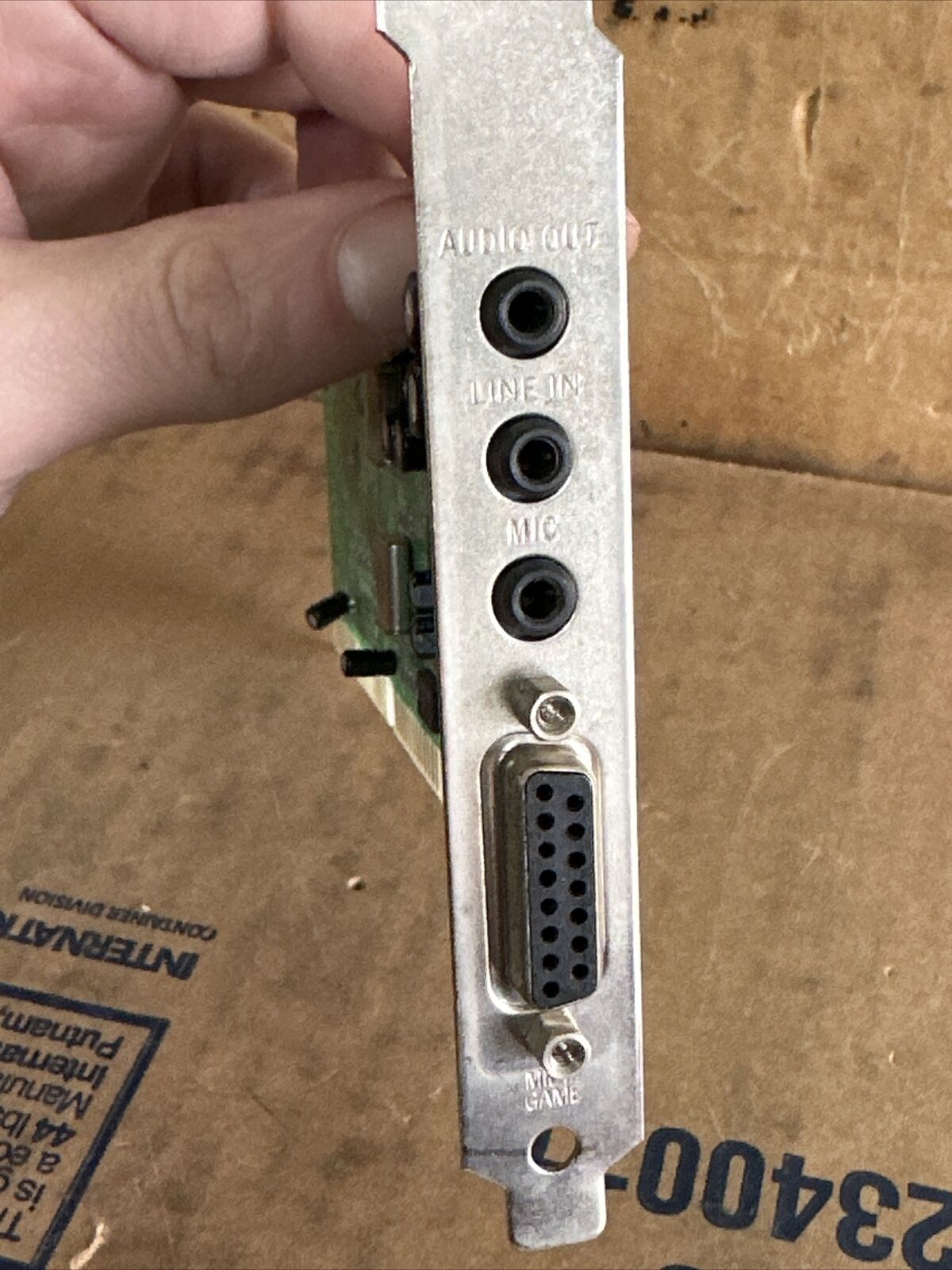

More Images

Harmony 3D PnP (ATC-6331)

Introduced: 1997
FM Synthesizer: Yamaha OPL3-SA3 (YMF719)
Bus: 16-bit ISA
FCC ID:

Based on the Yamaha YMF719, the Harmony 3D PnP provided Ad Lib, Sound Blaster, Sound Blaster Pro and 3D positional audio capability on a budget card.

Like the ATC-6631, the card had provision for an onboard wavetable synthesizer in the form of the low-cost AdMos QDSP QS1000, though I've never come across a card with it populated. As with the majority of mid-90s sound cards, it does come with a wavetable header so you can alternatively install a wavetable daughterboard.

YAMAHA 719 3D chipset
3D enhancement sound effect built-in
Up to 48khz sampling rate
Full Duplex (Stereo) 16-bit DMA
Plug and Play support
I-Phone connector
MPU-401 MIDI compatible
Windows 95, Windows Sound System, Sound Blaster, Sound Blaster pro compatible
