My CPU Collection

The purpose of this page is simply to catalogue the CPUs in my own personal collection and more importantly, keep placeholders for those that are missing. I'm not really a CPU collector ("I gotta have 'em all!"), but I do have a pretty ok stash of PC hardware to be able to build almost any PC from 1985 to 2000 without using too much "out of era" kit.

So anyway, here goes... all CPUs are tested and working unless otherwise stated, are sorted by socket, then by manufacturer, then by speed in MHz/GHz. Oh, and these are desktop PC CPUs, so no laptop/surface-mount CPUs in this list. All prices include P&P (packing and shipping).

I N D E X

Pre-Socket CPUs
Socket 3 CPUs
Socket 5 CPUs
Socket 7 CPUs
Ancillary Chips

Pre Socket CPUs

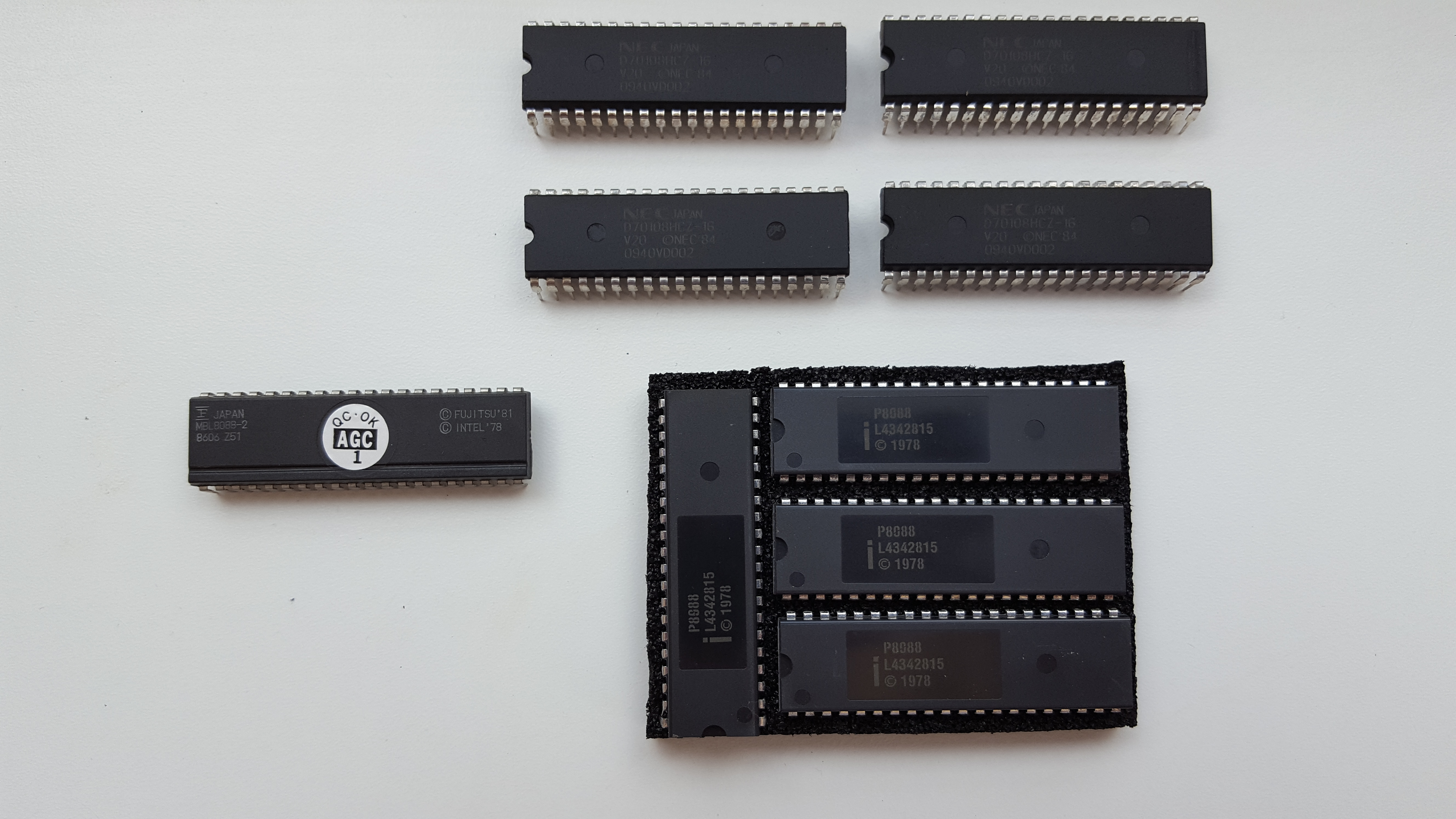

Intel 8088
(1979)
(x4). Stamped 1978. Brand new, never used. 5 MHz.
Bought for £2.50 each in Jan 2013.
Prices in late 2020 not incl. P&P: £2 to £3 each
Intel 8088-2
(1981)
Fujitsu-branded from 1981. 8 MHz.
Bought for £2.50 each in Jan 2013.
Prices in late 2020 not incl. P&P: £2 to £3 each

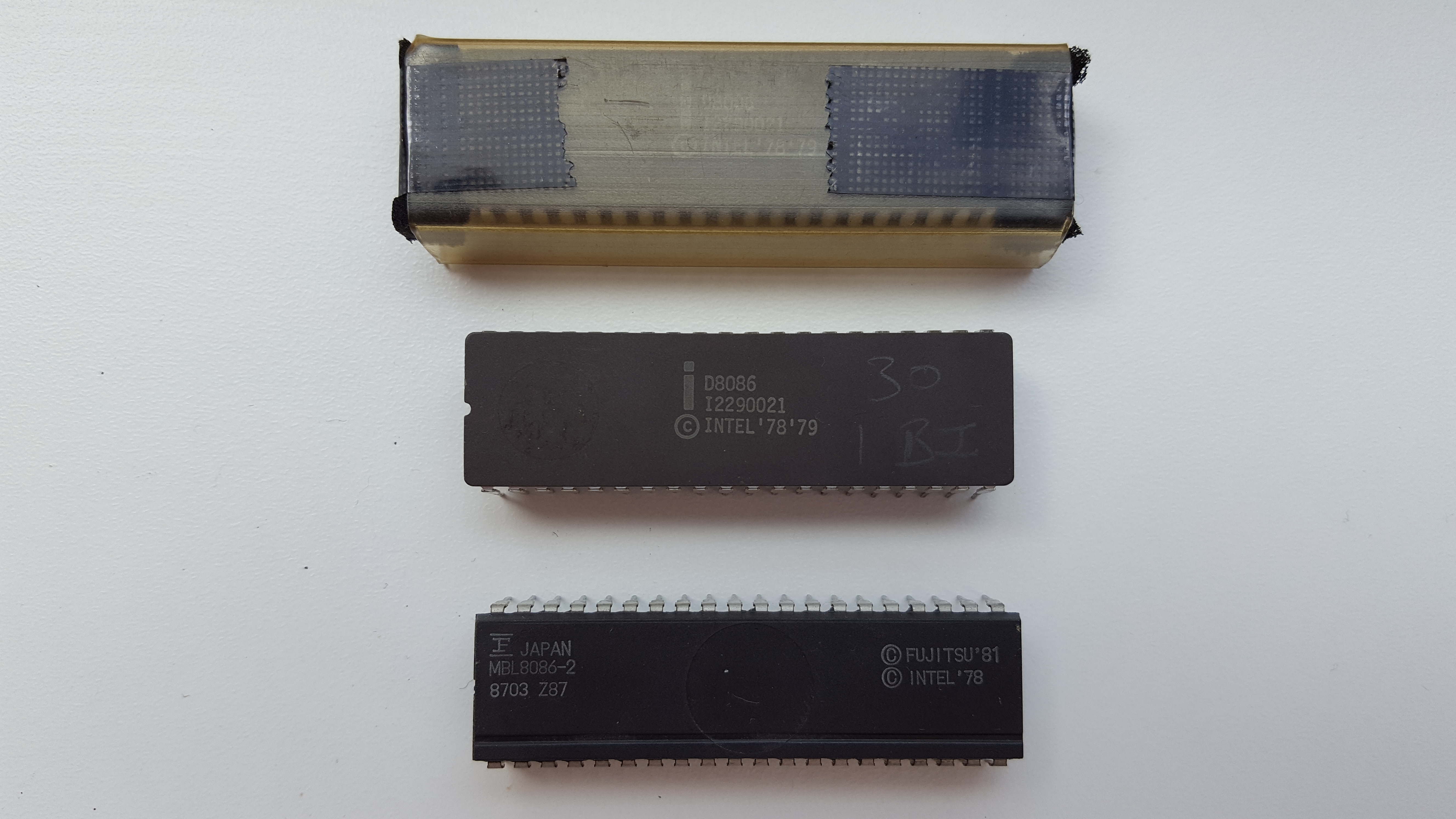

Intel 8086
(1979)
(x2). From 1979. 5 MHz.
Bought for £10 each in 2018.
Prices in late 2020 not incl. P&P: £2.50 to £20 each
Intel 8086-2
(1981)
Fujitsu-branded from 1981. 8 MHz.
NEC V20
(1982)
(x4). From 1984. Brand new, never used. 16 MHz.
Bought for £2 each in 2018.
Prices in late 2020 not incl. P&P: £4 to £16 each.
Prices in mid 2021 not incl. P&P: £4 to £17 each.
NEC V30
(1982)
**MISSING FROM COLLECTION**
Prices in mid 2021 not incl. P&P: £16 to £19 each.
Intel 80286-6
(1983)
Came with IBM 5170 motherboard which I paid £30 for incl. an Intel AboveBoard 128KB RAM card and 5170 PSU and original ROMs in 2019.
Prices in late 2020 not incl. P&P: £16
Intel 80286-12
(1983)
Came with DCS motherboard which I paid £48 for in 2014.
Prices in late 2020 not incl. P&P: £6.50 to £10.

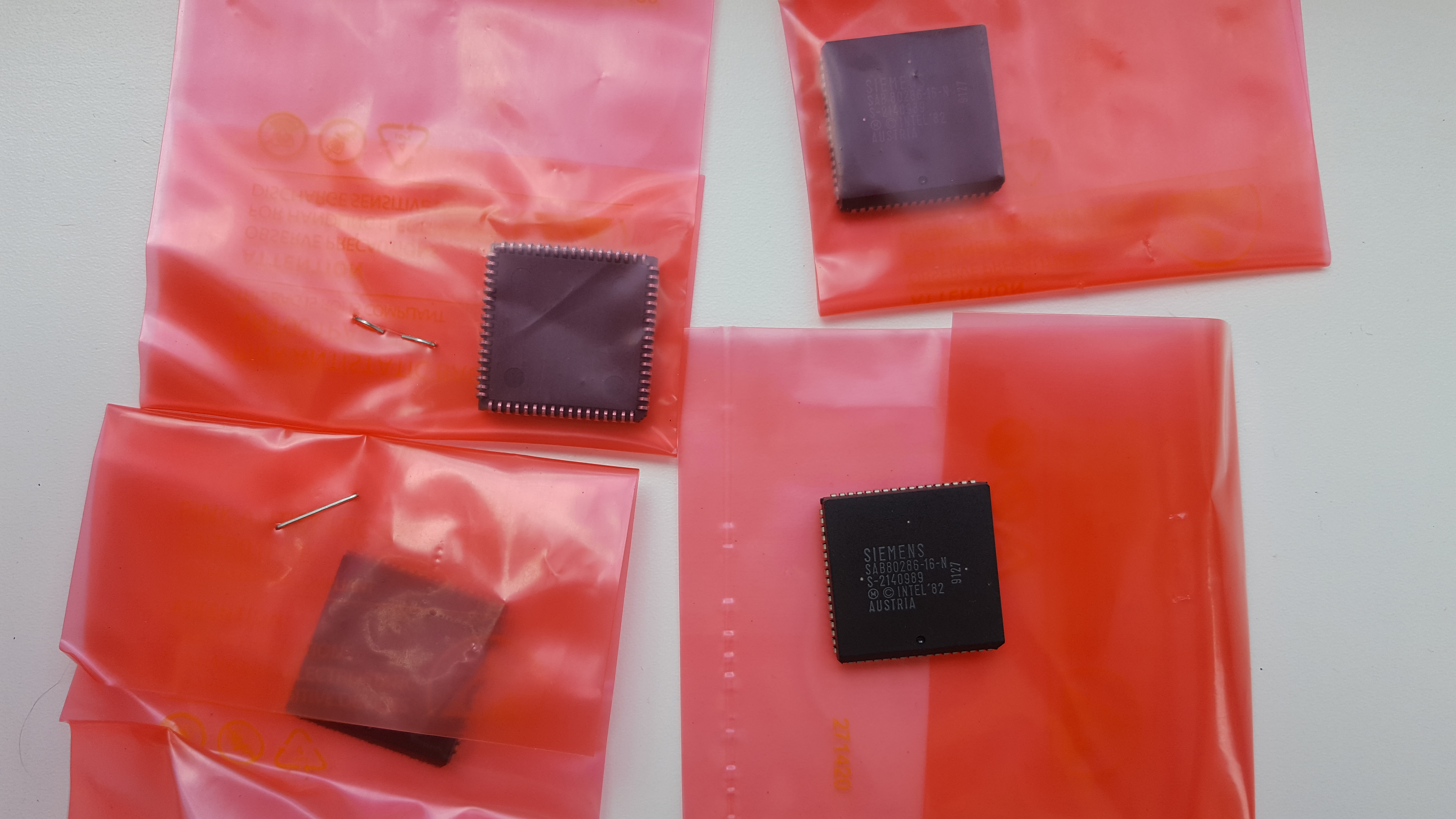

Intel 80286-16
(1984)
(x4). Siemens-branded.
Bought for £4.95 each in 2017.
Intel 80286-20 **MISSING FROM COLLECTION**
Harris-branded. They were the only authorised manufacturer to push the 80286 architecture beyond 16 MHz. Originals are quite rare. Watch out for fake chips.
Intel 80286-25 Harris-branded. They were the only authorised manufacturer to push the 80286 architecture beyond 16 MHz. Originals are quite rare. Watch out for fake chips.
Bought in Dec 2020 for £11.28 + £4.54 P&P.
Prices in mid-2021 not incl. P&P: £12
Intel 80386DX-16 (x3). Can't recall where I picked these up, but they're double-sigma (bug-free) ones.
Prices in mid-2021 not incl. P&P: £22

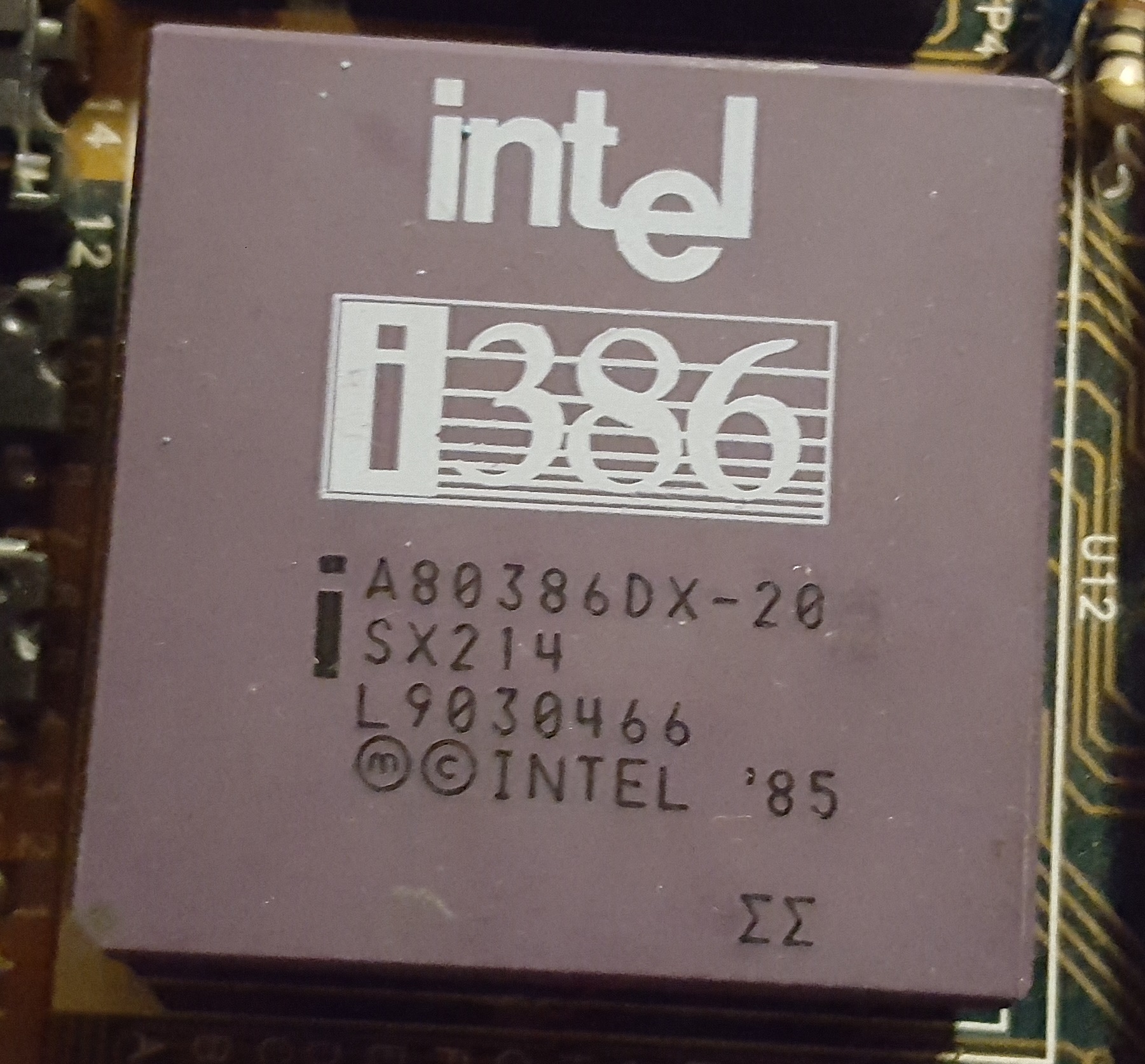

Intel 80386DX-20 Came with my Chips & Technologies motherboard in 2013.
Requires standard 386 PLCC 132-pin socket. This chip has the double sigma symbol, which means it has been tested and is bug-free.
Intel 80386DX-25 **MISSING FROM COLLECTION**
Prices in mid-2021 not incl. P&P: £5 to £25

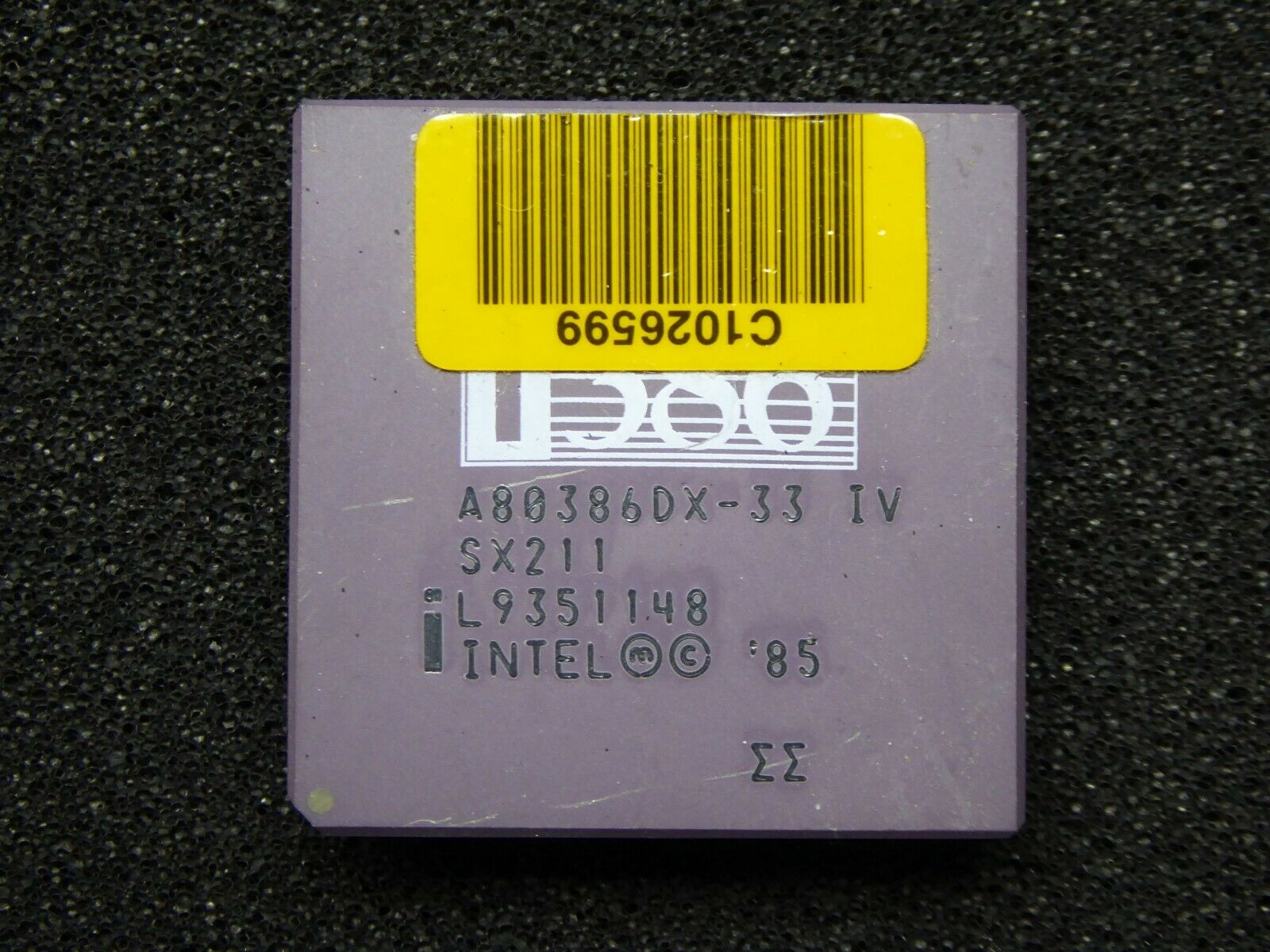

Intel 80386DX-33
(1985)
This is the first stepping of the 386DX-33, SX211.
Requires standard 386 PLCC 132-pin socket. This chip has the double sigma symbol, which means it has been tested and is bug-free. Bought in Mar 2021 for £15 + £1.50 P&P.
Prices in mid-2021 not incl. P&P: £13 to £51
AMD Am386DX-33 **MISSING FROM COLLECTION**
Prices in late 2020 not incl. P&P: £14
Prices in mid-2021 not incl. P&P: £16

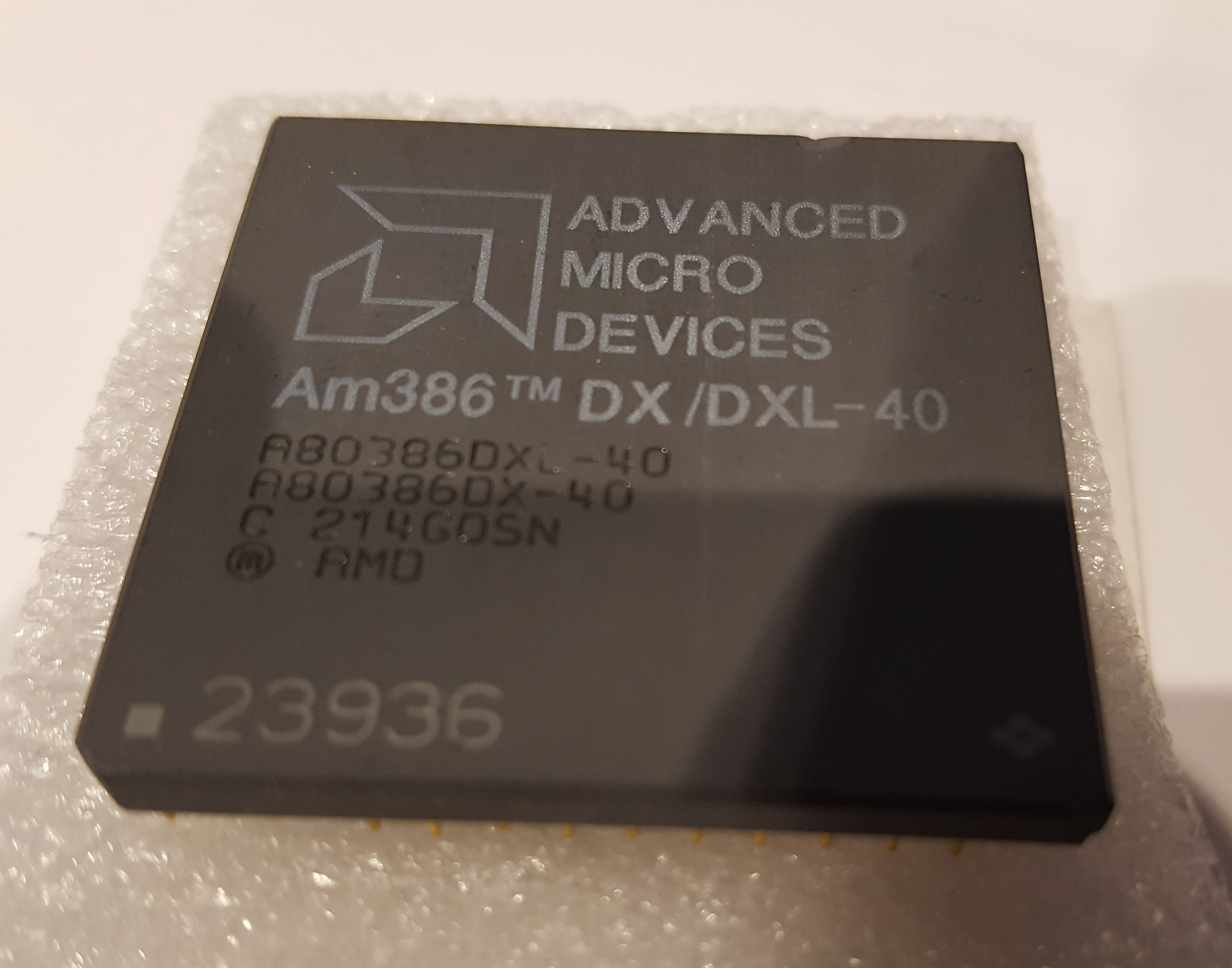

AMD Am386DX/DXL-40 The fastest native 386 CPU produced!
Should work in any 80386 (QFP-132) socket.
Bought for £14.50 in Nov 2019.
Prices in late 2020 not incl. P&P: £8, £31, £20
Prices in mid-2021 not incl. P&P: £6, £12, £19, £21

Socket 3 CPUs

Intel 80486SX-16
(Apr 1991)
16 MHz FSB, No multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V
**MISSING FROM COLLECTION**
Intel 80486SX-20
(Sep 1991)
20 MHz FSB, No multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V
**MISSING FROM COLLECTION**
Prices in mid-2021 not incl. P&P: £13
Intel 80486DX-20
(Jun 1989)
20 MHz FSB, No multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V
**MISSING FROM COLLECTION**
Intel 80486SX-25
(Sep 1991)
25 MHz FSB, No multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V. "S"-series processor, as it has &E5V1X stamped on the chip. CPUID = 0423 Codename P4S.
Bought for £39.99 in 2015 as a bundle that included 3 x FIC 486-VIP-IO2 motherboards and 3 x 486 CPUs.
Prices in late 2020 not incl. P&P: £3.50 to £5.
Prices in mid-2021 not incl. P&P: £22
Intel 80486DX-25
(Jun 1989)
25 MHz FSB, No multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V
Prices in late 2020: £12
Prices in mid-2021 not incl. P&P: £25
**MISSING FROM COLLECTION**

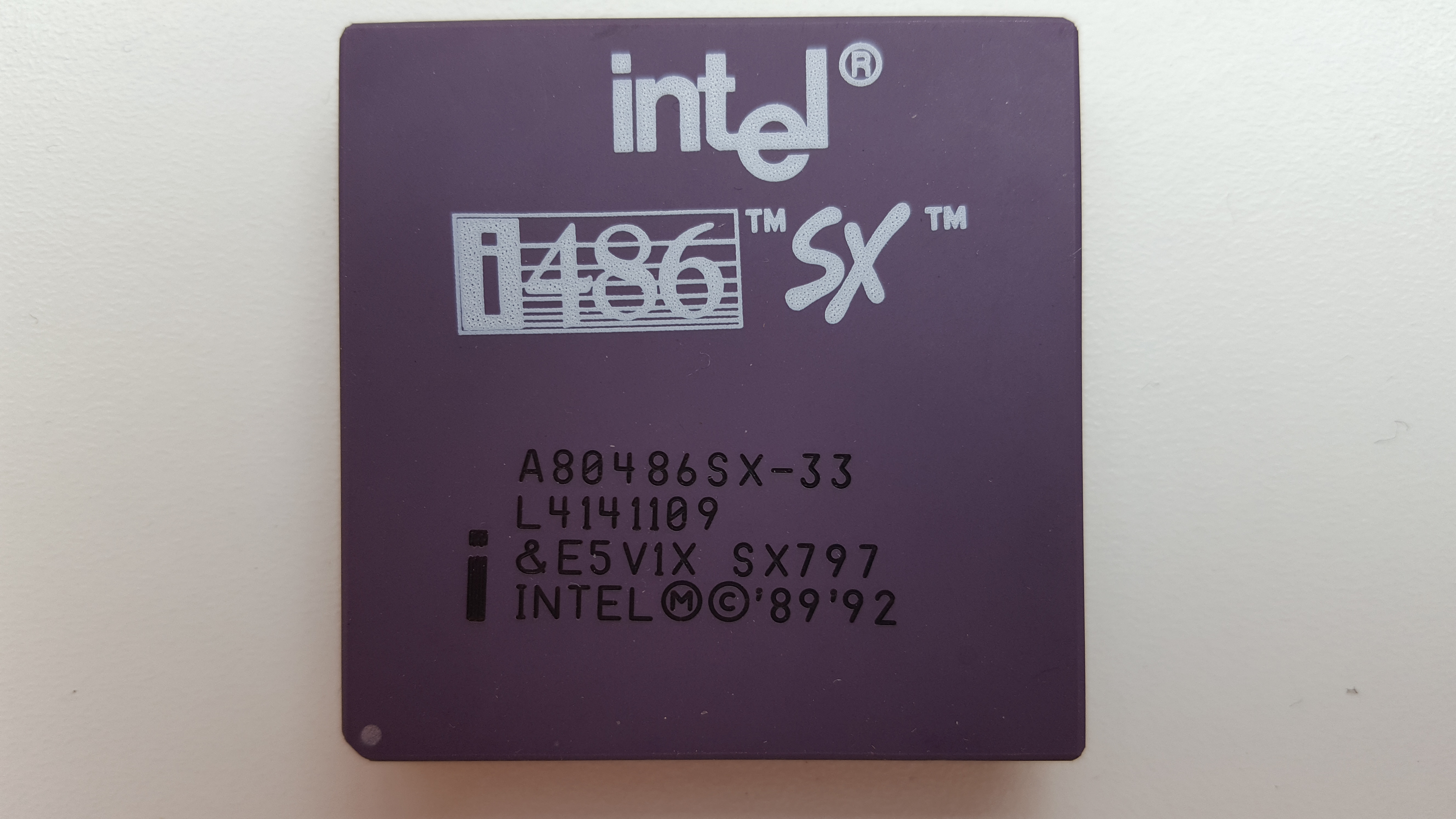

Intel 80486SX-33
(Sep 1992
33 MHz FSB, No multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5VRequires Socket 3 with 5V
"S"-series processor, as it has &E5V1X stamped on the chip
Bought for £39.99 in 2015 as a bundle that included 3 x FIC 486-VIP-IO2 motherboards and 3 x 486 CPUs.
Prices in late 2020 not incl. P&P: £8.50.
Intel 80486DX-33
(May 1990)
(x2) 33 MHz FSB, No multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V. You can't have enough of these in your collection - dirt cheap and were the fastest non-clock doubled/tripled Intel version with the math coprocessor. A solid CPU from 1990-1992.
Prices in late 2020 not incl. P&P: £10.
Intel 80486DX2-40
(Mar 1992)
20 MHz FSB, 2x multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V.
Prices in late 2020 not incl. P&P: Unknown - these seem to be fairly rare.
**MISSING FROM COLLECTION**
Intel 80486SX2-50 25 MHz FSB, 2x multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V
"S"-series processor, as it has &E5V1X stamped on the chip.
Bought for £39.99 in 2015 as a bundle that included 3 x FIC 486-VIP-IO2 motherboards and 3 x 486 CPUs.
Prices in late 2020 not incl. P&P: £15 to £42.
Intel 80486DX-50
(Jun 1991)
50 MHz FSB, No multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V.
Prices in late 2020: £14
Prices in mid-2021 not incl. P&P: £18
**MISSING FROM COLLECTION**
Intel 80486DX2-50 (Mar 1992) 25 MHz FSB, 2x multiplier. 8KB L1 write-through cache. Requires Socket 3 with 5V.
Prices in late 2020: £12.
**MISSING FROM COLLECTION**
Intel 80486SX2-66 33 MHz FSB, 2x multiplier. No FPU. 8KB L1 write-through cache. Requires Socket 3 with 5V
**MISSING FROM COLLECTION**
Intel 80486DX2-66
(Mar 1992)
(x3) 33 MHz FSB, 2x multiplier. 8KB L1 write-through cache.
Requires Socket 3 with 5V – use heatsink
Prices in late 2020 not incl. P&P: £4 to £20.
Prices in mid-2021 not incl. P&P: £8, £15,£18, £20
**1 NOT WORKING, 2 WORK**
Intel 80486DX4-75
(Mar 1994)
25 MHz FSB, 3x multiplier. 16KB L1 write-through cache. Requires Socket 3 with 3V +/-0.3V
Prices in late 2020 not incl. P&P: £12
**MISSING FROM COLLECTION**

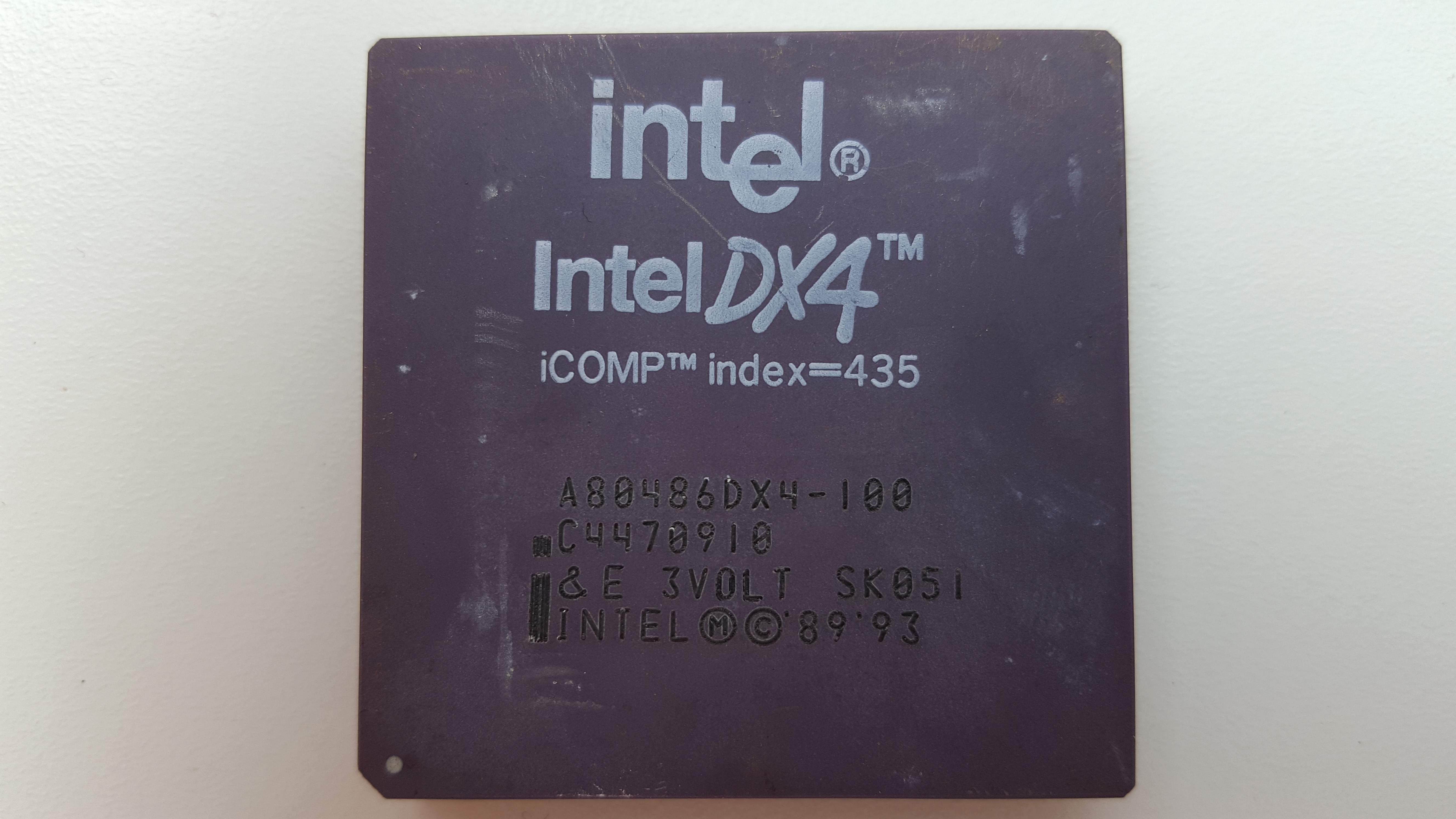

Intel 80486DX4-100
(Mar 1994)
33 MHz FSB, 3x multiplier. 16KB L1 cache. If chip has "&EW" this is write-back. If it has "&E" it is write-through. Requires Socket 3 with 3V 3V +/-0.3V.
Mine = SK051. S-Spec. WT only, not WB
Prices in late 2020 not incl. P&P: £18
Prices in mid-2021 not incl. P&P: £27, £30
**NOT WORKING**
Intel 486 Overdrive
ODP486SX-25
Prices in late 2020: £21
**MISSING FROM COLLECTION**
Intel 486 Overdrive
ODPR486DX-33
Prices in late 2020: £25
**MISSING FROM COLLECTION**
Intel 486 Overdrive
DX2ODPR50
Prices in late 2020: £40
**MISSING FROM COLLECTION**
Intel 486 Overdrive
DX2ODPR66
Prices in late 2020: £23
Prices in mid-2021 not incl. P&P: £22
**MISSING FROM COLLECTION**
Intel 486 Overdrive
DX4ODP75
Prices in mid-2021 not incl. P&P: £22
**MISSING FROM COLLECTION**
Intel 486 Overdrive DX4ODP100 Prices in late 2020: £30
**MISSING FROM COLLECTION**

AMD Am486DX2 and Am486DX4 codes:

"N"=No ICE microcode, blank=Contains Intel's ICE microcode, "S"-prefix=Enhanced Am486 (CPU has SMM, stop-clock control, and WB cache).
"V"=3.3V core with 5V-tolerant I/O
'8'=8KB cache, '16'=16KB
"B"=L1 cache has Write Back policy, "T"=Write Through cache policy
"G"=168-pin PGA package
blank=Commercial temp (0-85), "I"=Qualified at Industrial temperature range (-40-100)
AMD Am486SX-33
(Jul 1993)
**MISSING FROM COLLECTION**
AMD Am486DX-33
(Apr 1993)
**MISSING FROM COLLECTION**
AMD Am486DX-40
(Apr 1993)
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £12.66
Typical prices mid-2021 not incl. P&P: £15, £26
AMD Am486SX-40
(Jul 1993)
**MISSING FROM COLLECTION**
AMD Am486SX2-50 **MISSING FROM COLLECTION**
AMD Am486DX2-50
(Jun 1993)
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £12.05
AMD Am486SX2-66
(Apr 1994)
**MISSING FROM COLLECTION**

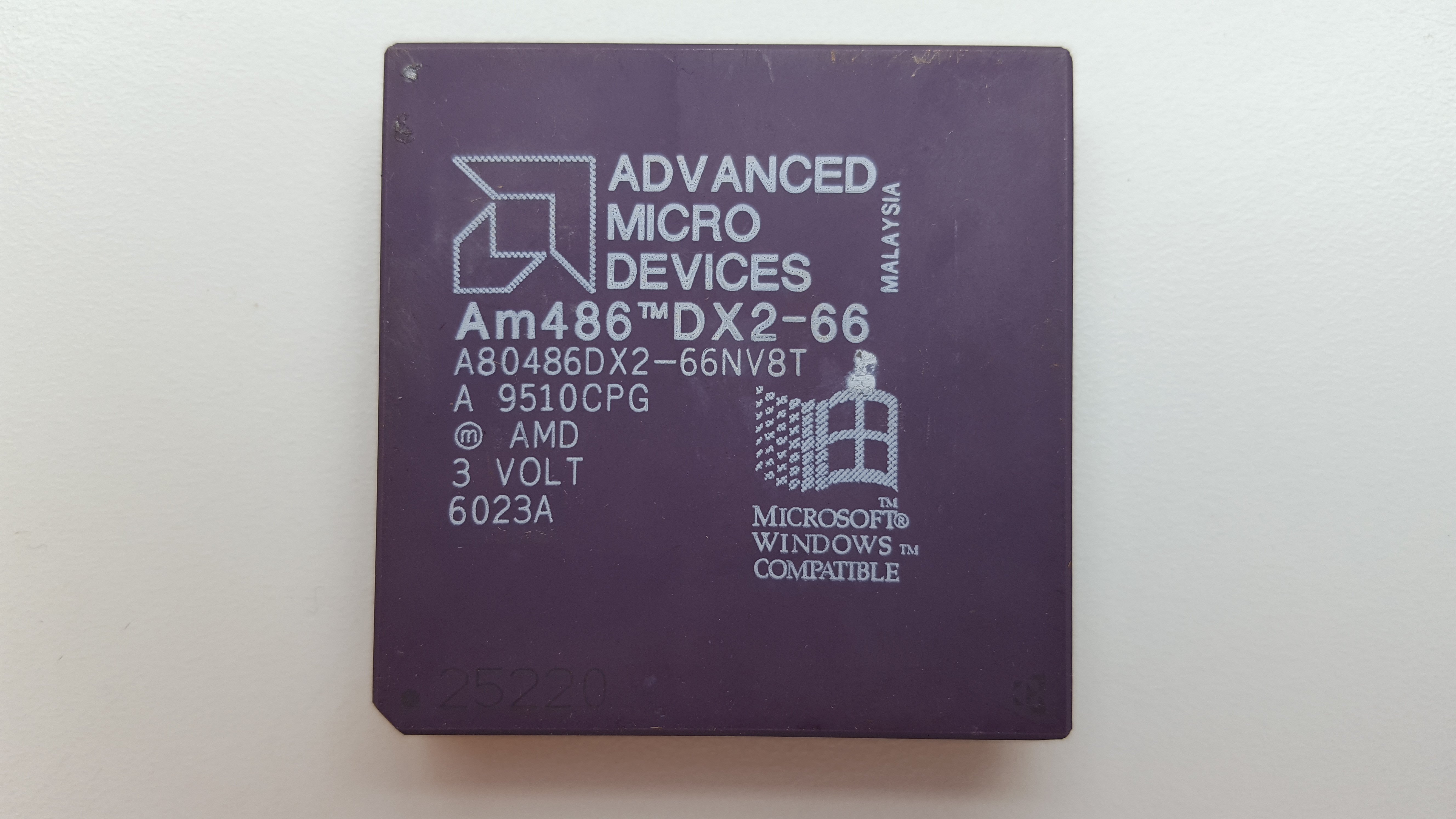

AMD Am486DX2-66
No code (Jun 1993)
V8T (1994)
V8B (1994)
NV8T (Aug 1995)
V16T (Mar 1997)
V16B (Mar 1997)
Mine = NV8T (write-through cache). 33 MHz FSB, 2x multiplier.
Date stamp is week 10 1995.
Still Socket 3 but needs 3V to 3.5V, so voltage regulator on mobo needed. 8K L1 cache.
**NOT WORKING**
Typical prices mid-2020 not incl. P&P: £10.86, £12.05
Typical prices late-2020 not incl. P&P: £10
Prices in mid-2021 not incl. P&P: £8, £9, £12, £18

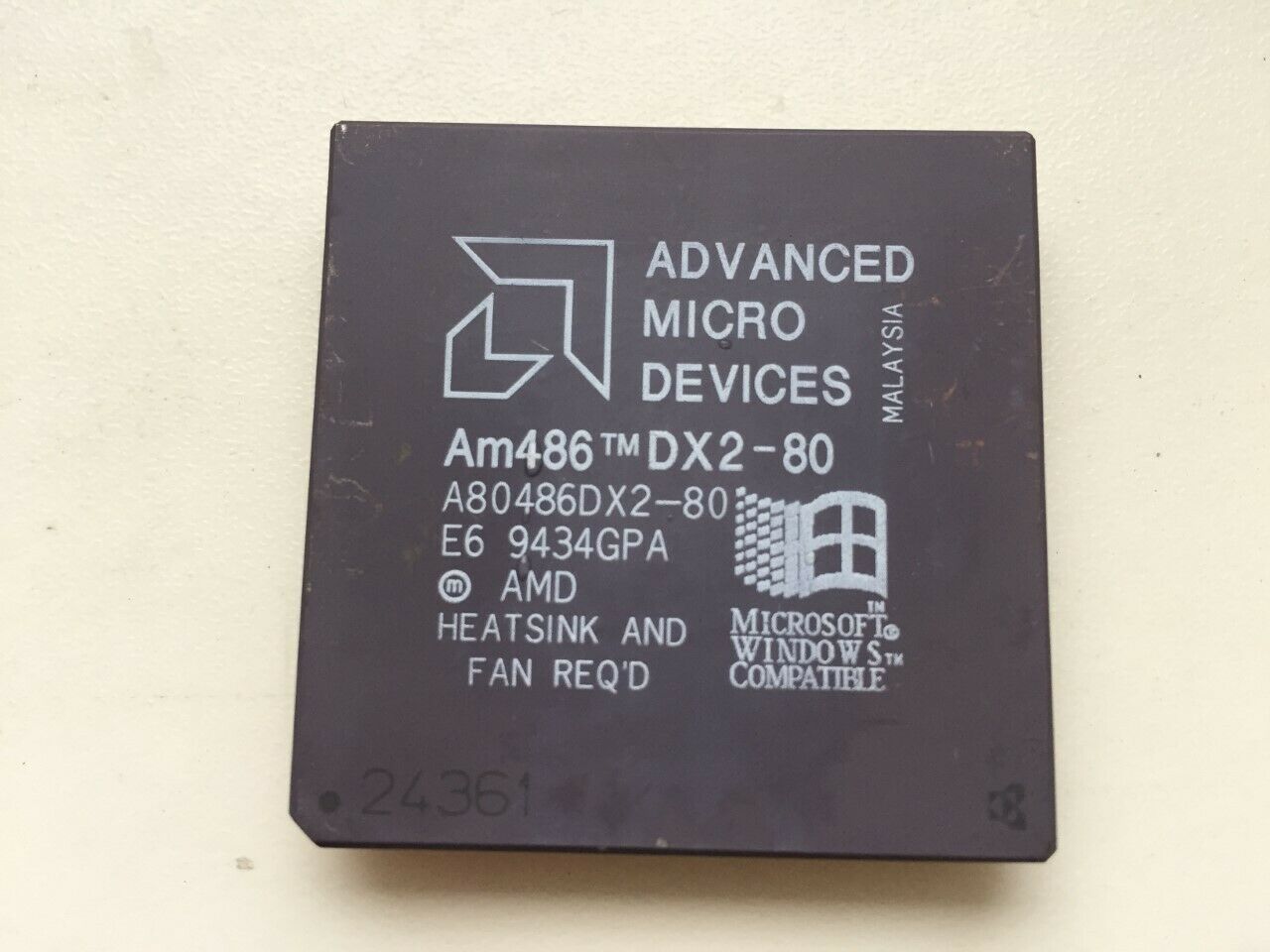

AMD Am486DX2-80
No code, V8T (Sep 1994)
NV8T (Aug 1995)
SV8B (Mar 1996)
40 MHz FSB, 2x multiplier, 8KB L1 WT cache. 5V. This is the fastest regular 486-type CPU that has also been available as a native 5V part.
Mine has no code and has a date stamp of week 34 1994, so a really early one. Bought for £12.88 in 2020.

Typical prices mid-2020 not incl. P&P: £13.57, £12.86, £13.67, £18.73
Typical prices late-2020 not incl. P&P: £12, £8.50
Prices in mid-2021 not incl. P&P: £7, £14, £17
AMD Am486DX4-75
No code (Sep 1994)
25 MHz core clock, 3x multiplier. 25 MHz FSB. 8KB L1 WT cache. 3.3V.
**MISSING FROM COLLECTION**
AMD Am486DX4-90
(Sep 1994)
30 MHz core clock, 3x multiplier. 30 MHz FSB. 8KB L1 WT cache. 3.3V.
**MISSING FROM COLLECTION**
AMD Am486DX2-100
(Sep 1994)
V8T (1994)
V8B (1994)
V16B (1995)
50 MHz core clock, 2x multiplier. 50 MHz FSB. 3.3V.
V8T has an 8KB L1 WT (write-through) cache.
V8B and V16B are Write-Back cache versions, with V8B having an 8KB cache, and V16B having a 16KB cache.
**MISSING FROM COLLECTION**

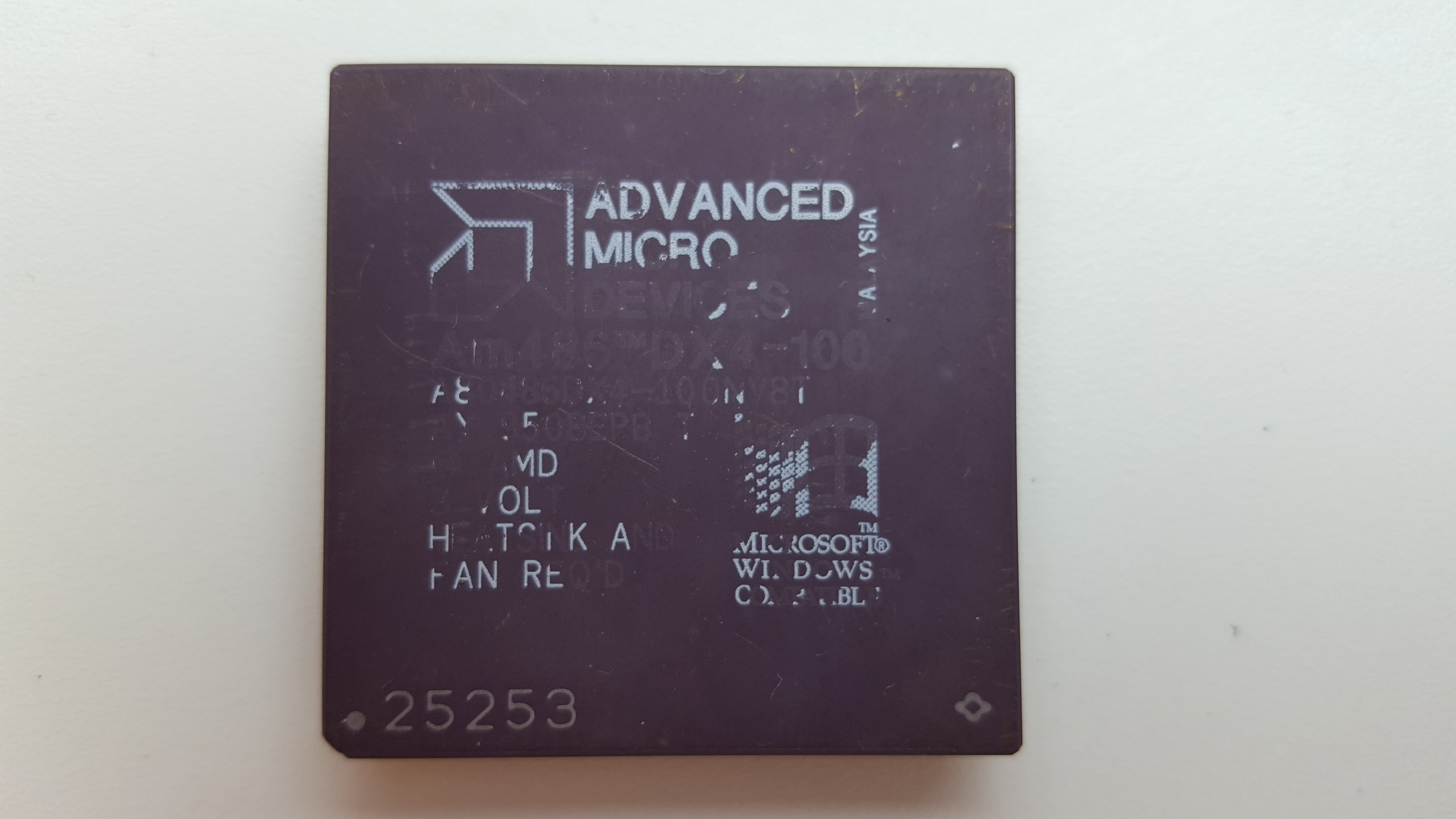

AMD Am486DX4-100
V8T (1994)
V16B (Mar 1997)
NV8T (1995)
SV8B (1996?)
SV16B (1997?)
Mine = NV8T (write-through cache). 33 MHz FSB, 3x multiplier. Date stamp is week 8 of 1994.
SV16B is the best, with 16KB L1 WB cache with enhancements.
2nd best is the V16B, with 16KB L1 WB cache.
Typical prices mid-2020 not incl. P&P: £8.14, £15.38, £11.75, £11.95, £23, £31.54, £13.67
Typical prices late-2020 not incl. P&P: £14, £17, £5, £13
Typical prices mid-2021 not incl. P&P: £10, £15, £17, £20, £29

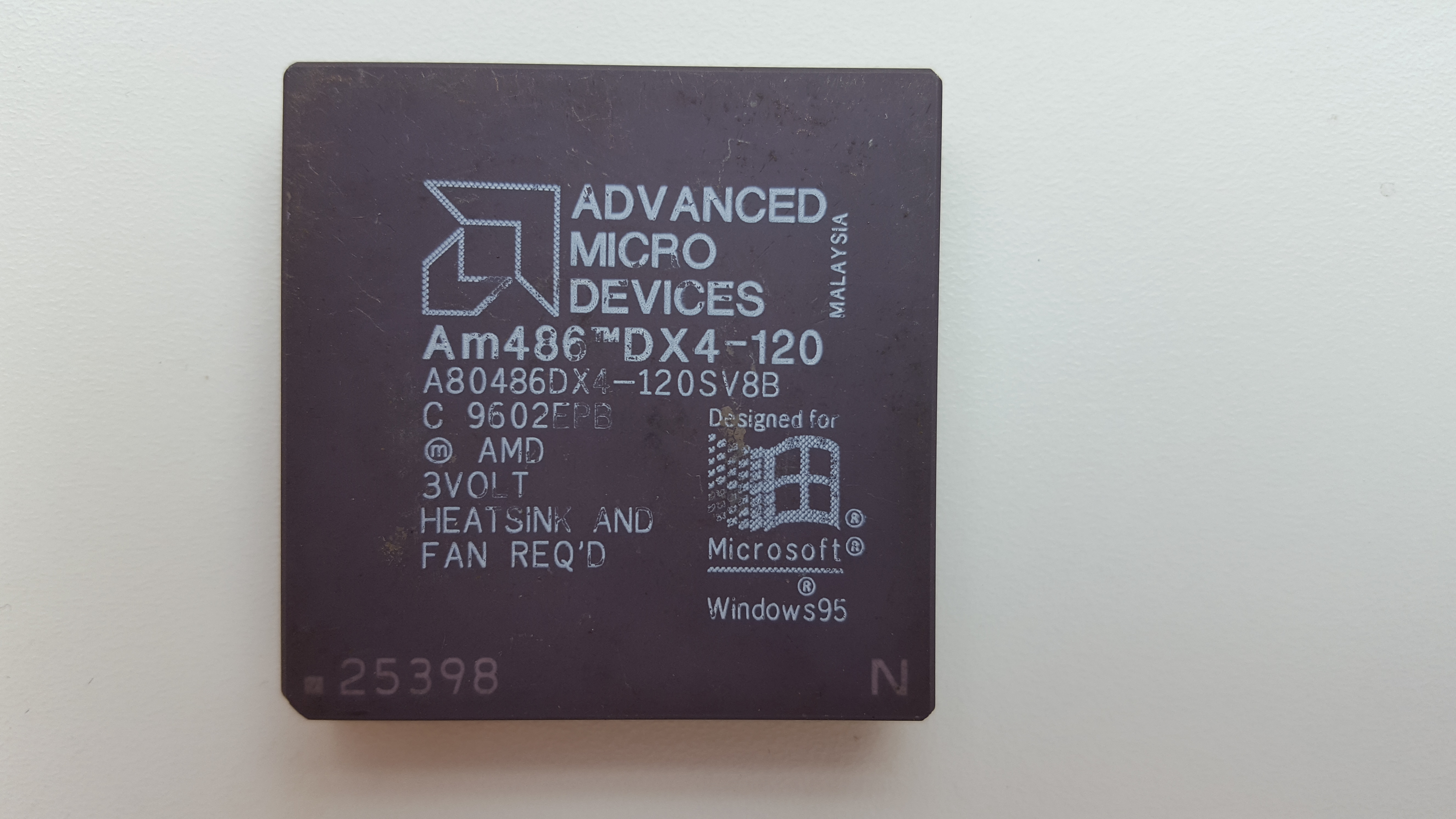

AMD Am486DX4-120
V8T (1995)
NV8T (1995)
SV8B (1996?)
40 MHz FSB, 3x multiplier.
Mine = SV8B :-) Date stamp is week 2 of 1996.
Requires Socket 3 with 3.3V. CPU has 8K L1 "write-back" cache - use heatsink and fan
Bought for £19.66 in 2018.
Typical prices mid-2020 not incl. P&P: £22.61, £16.00
Typical prices late-2020 not incl. P&P: £40

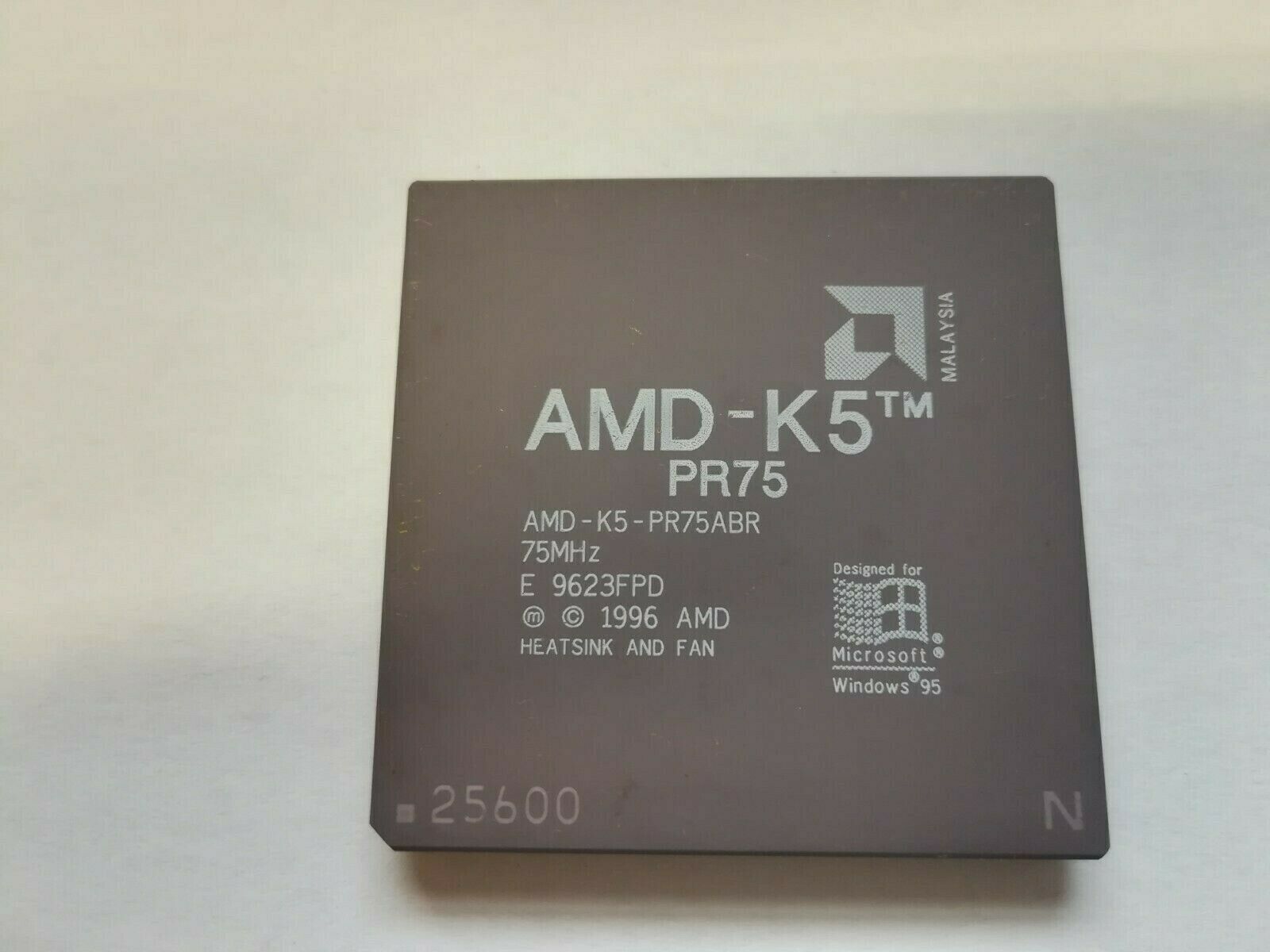

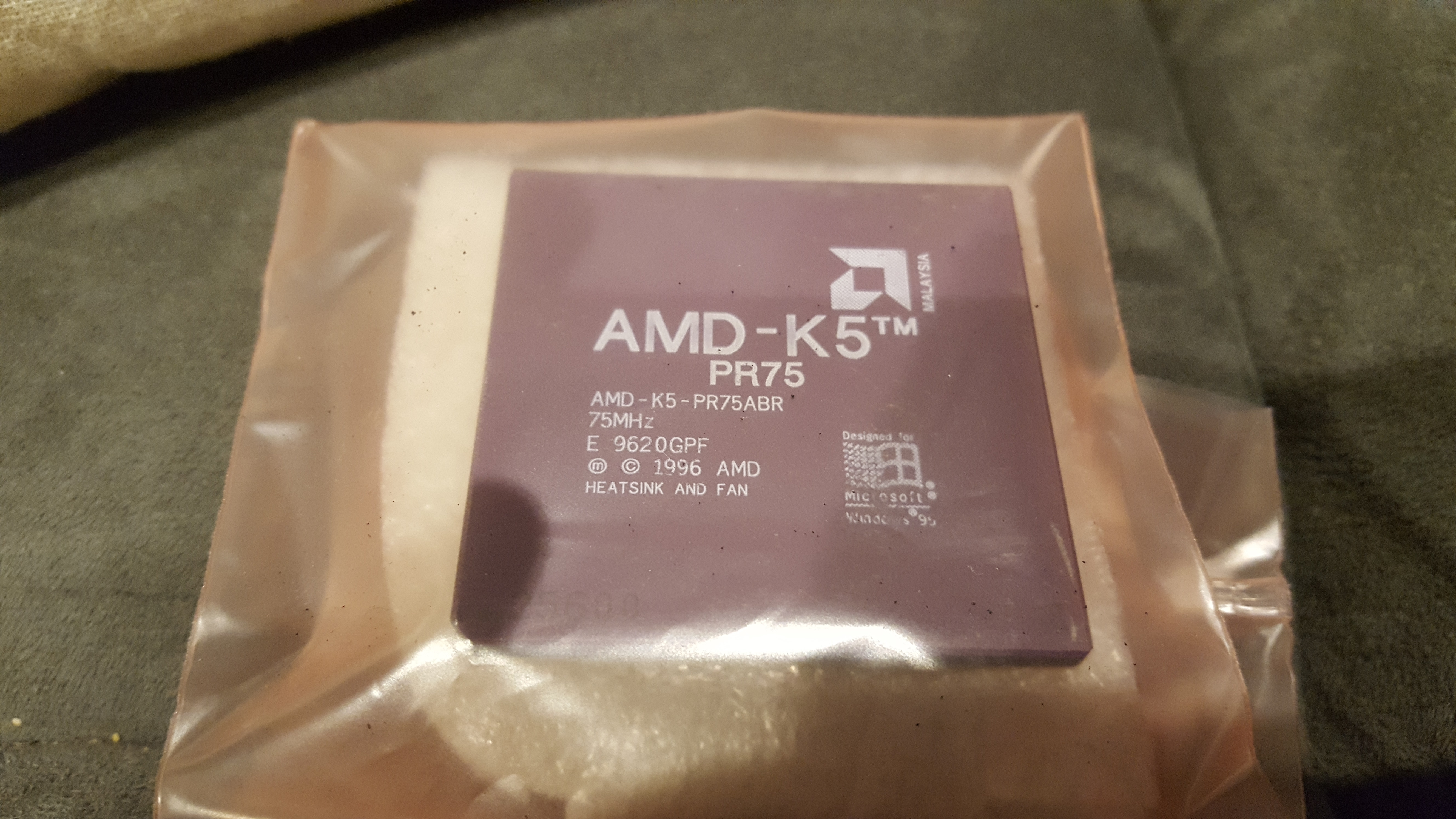

AMD K5-PR75-ABR
(Oct 1996)
(x2). Uses AMD's 2nd revision of the K5 with SSA/5 core.
50 MHz FSB, 1.5x multiplier. Actual CPU clock runs at 50 MHz.
This is one of the older, slower SSA/5 core K5s, but was manufactured on the newer 350nm process.
First chip has date stamp wk23 1996, second has wk20 1996.
Bought for £13.05 in 2018. Second one bought for £13.69 in 2020.
AMD K5-PR90ABQ
(Oct 1996)
90 MHz clock, 60 MHz FSB, 1.5x multiplier setting. 8KB or 16KB L1 cache.
This is one of the older, slower SSA/5 core K5s, but was manufactured on the newer 350nm process.
**MISSING FROM COLLECTION**

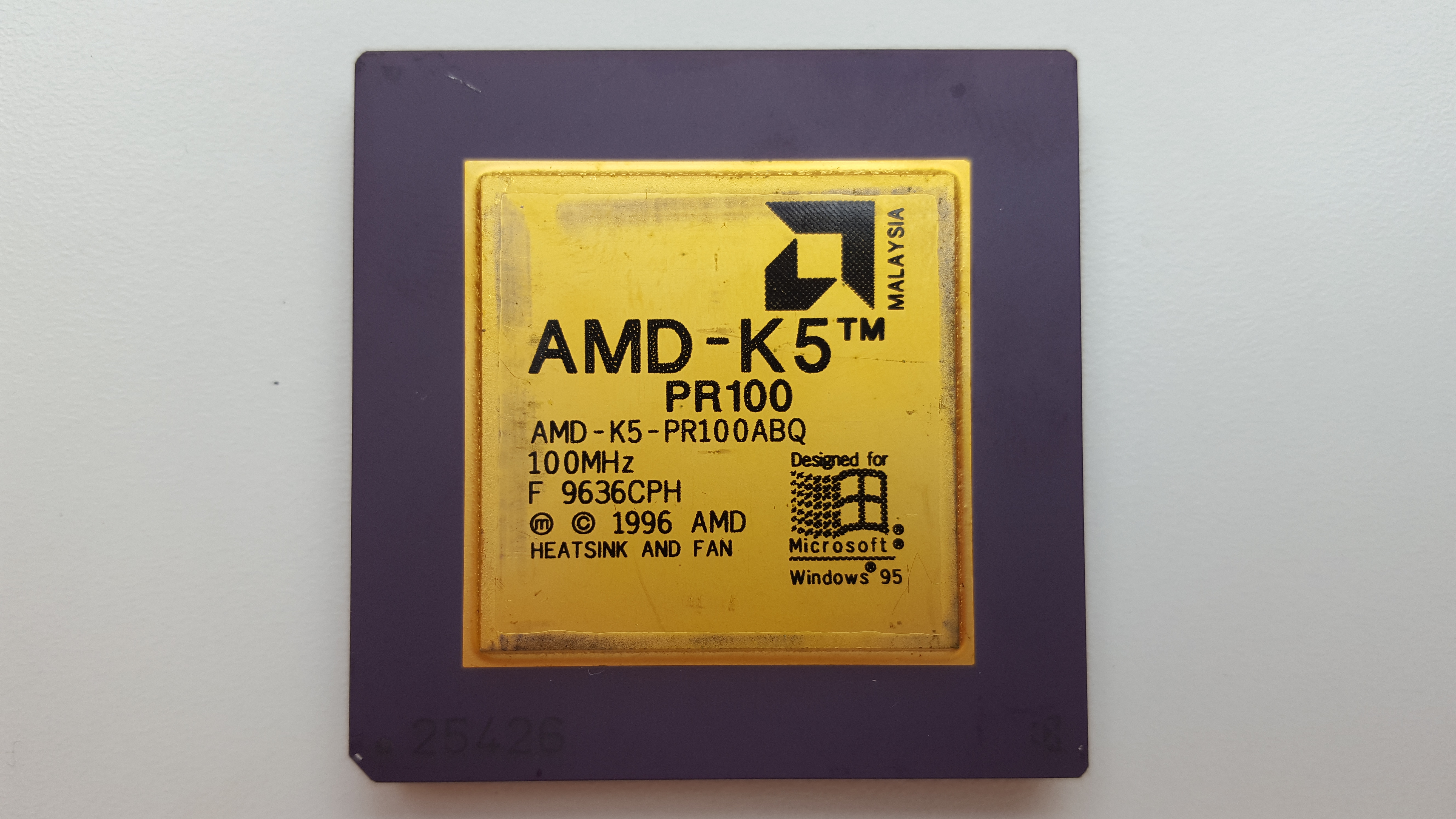

AMD K5-PR100-ABQ
(Jun 1996)
66 MHz FSB, 1.5x multiplier. Actual CPU clock runs at 75 MHz.
This is one of the older, slower SSA/5 core K5s, but was manufactured on the newer 350nm process.
Bought for £20.45 in 2018.
Typical prices mid-2020 not incl. P&P: £14.99, £16.99, £5.71, £16.14, £7.70, £11.92
AMD K5-PR120ABQ
ABR
(Oct 1996)
90 MHz clock, 60 MHz FSB, 1.5x multiplier setting. 8KB or 16KB L1 cache.
This is one of the later ones (designated 5k86) following a redesign to improve FPU performance and run cooler.
ABR variant can manage up to 70 degrees temp (ABQ only 60 deg).
**MISSING FROM COLLECTION**
AMD K5-PR133-ABR
ABQ
(Oct 1996)
66 MHz FSB, 2x multiplier setting (internally multiplies at 1.5x).
Actual CPU clock runs at 100 MHz. Requires Socket 3 with 3.5V – use heatsink and fan. 16KB L1 cache.
This is one of the later ones (designated 5k86) following a redesign to improve FPU performance and run cooler.This one performs better than a Cyrix 6x86-PR166+.
ABR variant can manage up to 70 degrees temp (ABQ only 60 deg).
Typical prices mid-2020 not incl. P&P: £18.54, £18.09
AMD K5-PR166
ABQ
ABX
ABR
(Jan 1997)
116.66 MHz clock, 66 MHz FSB, 1.75x multiplier setting. 16KB L1 cache. This is one of the later ones (designated 5k86) following a redesign to improve FPU performance and run cooler.
ABR variant can manage up to 70 degrees temp (ABQ only 60 degrees, and ABX 65 degrees).
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £16.00, £40.43, £15.45

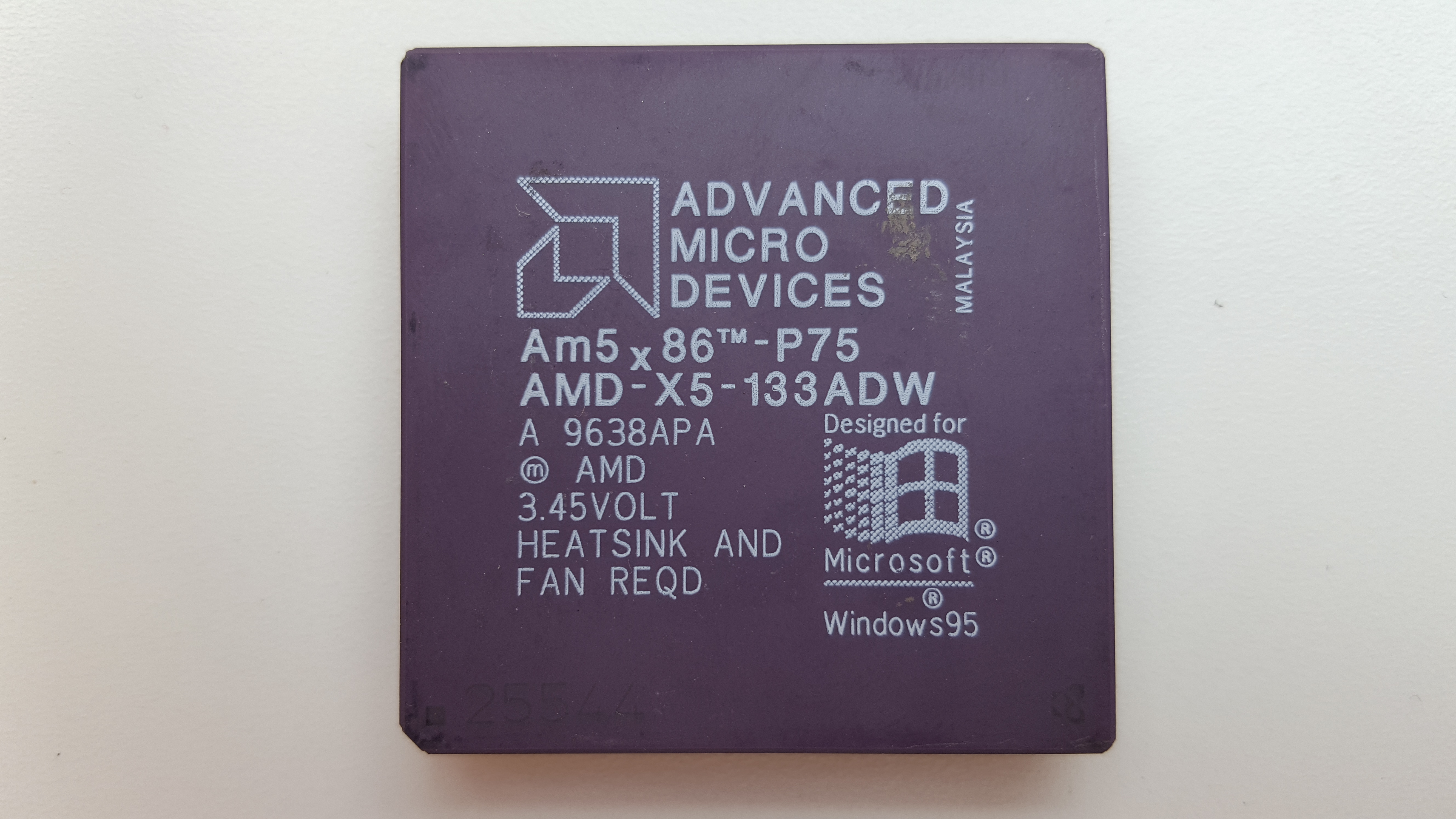

AMD Am5x86-P75
(AMD X5-133ADW)
X5-133ADY
X5-133ADZ
X5-133SDW
X5-133SDY
X5-133SDZ
X5-133SFY
X5-133SFZ
(Oct 1996)
133 MHz core clock, 33 MHz FSB, 4x clock multiplier, 16KB L1 WB cache.
3rd last letter: 'A' = PGA package, 'S' = SQPF package.
2nd last letter: 'D'=3.45V, 'F'=3.3V.
Last letter: 'W'=0-55C, 'Y'=0-75C, 'Z'=0-85C.
A bit faster than a 486DX4-100 and similar to a Pentium 75, the Am5x86 has a 486 microarchitecture and runs on Socket 3 with 3.45V - use heatsink and fan. A 160 MHz version on a 40 MHz FSB was mentioned but never sold. Some have overclocked the 133 to run like this, which gives it similar performance to a P-90.
Bought for £48 in 2014 as a bundle that included an M919 motherboard, several CPUs, MFM disk controller, video cards and CD-ROM drives.
Typical prices mid-2020 not incl. P&P: £20.14
Typical prices late-2020 not incl. P&P: £14, £24
Typical prices mid-2021 not incl. P&P: £35
AMD Am5x86-P83
(AMD X5-150ADW)
X5-150ADY
X5-133ADZ
(Oct 1996)
150 MHz core clock, 50 MHz FSB, 3x clock multiplier, 16KB L1 WB cache.
3rd last letter: 'A' = PGA package.
2nd last letter: 'D'=3.45V.
Last letter: 'W'=0-55C, 'Y'=0-75C, 'Z'=0-85C.
Similar performance to a Pentium running about 83 MHz, the Am5x86 has a 486 microarchitecture and runs on Socket 3 with 3.45V
**MISSING FROM COLLECTION**

Cyrix Cx486DLC-25GP **MISSING FROM COLLECTION**
Cyrix Cx486DRx2 16/32GP **MISSING FROM COLLECTION**
Cyrix Cx486DLC-33GP / V33GP This is the 132-pin variant, designed to be an upgrade for special 386/486 hybrid motherboards. It is 386 pin-compatible but has a complete 486SX instruction set and 1KB of L1 cache.

Bought for £23.13 incl. P&P from USA on 28 Mar 2021.

Typical prices mid-2020 not incl. P&P: £18.52
Typical prices late-2020 not incl. P&P: £18
Prices in mid-2021 not incl. P&P: £20
Cyrix Cx486DX-33 / DX-V33 **MISSING FROM COLLECTION**
Cyrix Cx486DLC-40GP **MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £12.75
Cyrix Cx486DX-40GP **MISSING FROM COLLECTION**
Prices in mid-2021 not incl. P&P: £16
Cyrix Cx486DRU2-20/40GP+ **MISSING FROM COLLECTION**
Cyrix Cx486DRx2 20/40GP **MISSING FROM COLLECTION**
Cyrix Cx486DX-50GP **MISSING FROM COLLECTION**
Cyrix Cx486DX2-50 **MISSING FROM COLLECTION**
Cyrix Cx486DRx2 25/50GP **MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £37.00
Cyrix Cx486DRx2 33/66GP **MISSING FROM COLLECTION**
Cyrix Cx486DX2-66GP / V66GP **MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £9.75, £9.45, £10.92
Typical prices late-2020 not incl. P&P: £9.18, £9
Typical prices mid-2021 not incl. P&P: £7, £8, £13, £17
Cyrix Cx486DX4-75GP **MISSING FROM COLLECTION**
Cyrix Cx486DX2-80 / DX2-V80GP **MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £12.86
Cyrix 5x86-80GP 40 MHz FSB. 2x multiplier, 16KB L1 cache. 3.45V. It is not known if this CPU was officially released.
**MISSING FROM COLLECTION**
Cyrix Cx486DX4-100GP / GP4 **MISSING FROM COLLECTION**
Typical prices mid-2021 not incl. P&P: £17
Cyrix 5x86-100GP 33 or 50 MHz FSB, 2x or 3x multiplier. 16KB L1 cache.  3.45V.
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £32.27
Typical prices late-2020 not incl. P&P: £23, £45
Typical prices mid-2021 not incl. P&P: £35
Cyrix 5x86-120GP/QP 40 MHz FSB. 3x multiplier, 16KB L1 cache.   3.45V.
**MISSING FROM COLLECTION**
Cyrix 5x86-133GP Very rare. Producers of upgrade kits like Gainbery were given preferential access to these. Some 100 and 120 MHz Cyrix 5x86s have support for 4x mult. This CPU is the fastest stock Socket 3 ever made.
**MISSING FROM COLLECTION**
IBM 486DX2-50GP
"Blue Lightning"
Rebranded Cyrix Cx486DX2-50.
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £15.00
IBM 486DX2-66GA/GB/GP
"Blue Lightning"

486-2V266GA
486-2V266GB
486-2V366GB
486-V266GB
486-V366GB
486-V666GA
Rebranded Cyrix Cx486DX2-66GP/V66GP.
Mine=486-V666GA . Bought in 2020 for £14.50.
Typical prices mid-2021 not incl. P&P: £18
IBM 486DX4-75GC/QIC
"Blue Lightning"
Rebranded Cyrix Cx486DX4-75GP.
**MISSING FROM COLLECTION**
IBM 486DX2-80GA/GB/GP
"Blue Lightning"
Rebranded Cyrix Cx486DX2-80/DX2-V80GP.
**MISSING FROM COLLECTION**
IBM 486DX4-100GIC/QIC/GC
"Blue Lightning"
Rebranded Cyrix Cx486DX4-100GP/GP4.
**MISSING FROM COLLECTION**
IBM 5x86C-75GP
3V375HF
25 MHz FSB, 3x multiplier. 16KB L1 cache.  3.3V.
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £25

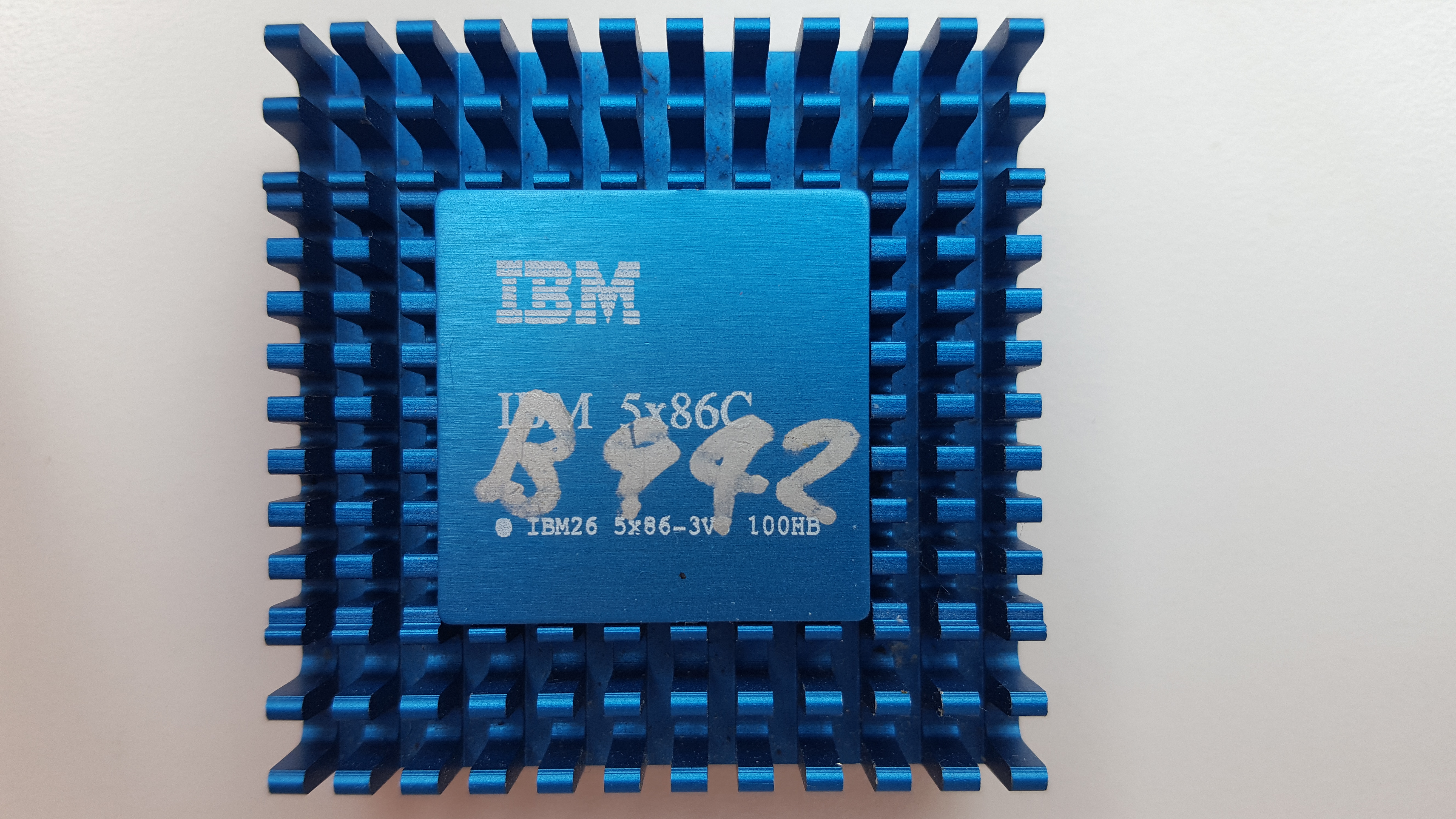

IBM 5x86C-100 33 MHz FSB, 3x multiplier, 16 KB L1 cache. 3.3V.
Part #5x86-3V3100HB
Bought for £48 in 2014 as a bundle that included an M919 motherboard, several CPUs, MFM disk controller, video cards and CD-ROM drives.
Typical prices mid-2020 not incl. P&P: £35.00
Typical prices late-2020 not incl. P&P: £30
TI 486SLC-25 (QFP)
TX486SLC/E-25

**MISSING FROM COLLECTION**
Typical prices mid-2021 not incl. P&P: £11, £17
TI 486SLC-33 (QFP)
TX486SLC/E-33

**MISSING FROM COLLECTION**
Typical prices mid-2021 not incl. P&P: £7, £11
TI 486SXL-40

**MISSING FROM COLLECTION**
Typical prices mid-2021 not incl. P&P: £18
TI 486SXLC2-40 (QFP)

**MISSING FROM COLLECTION**
Typical prices mid-2021 not incl. P&P: £30
TI 486SXLC2-G50 (QFP)

**MISSING FROM COLLECTION**
Typical prices mid-2021 not incl. P&P: £14, £26
TI 486DLC-33
TX486DLC-33

**MISSING FROM COLLECTION**
Typical prices mid-2021 not incl. P&P: £20
TI 486DLC-40
TX486DLC-40BGA
TX486DLC/E-40GA

**MISSING FROM COLLECTION**
Typical prices mid-2021 not incl. P&P:£14, £15, £20, £40, £45
TI 486DX2-66
/ G66-GA / G66-WR
Rebranded Cyrix Cx486DX2-66GP/V66GP.
33 MHz FSB, 2x multiplier, 8KB L1 cache, 3.45V.
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £15.50
TI 486DX2-G80-GA Rebranded Cyrix Cx486DX2-80/DX2-V80GP.
40 MHz FSB, 2x multiplier, 8KB L1 cache, 3.45V.
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £12.50, £12.93
Typical prices late-2020 not incl. P&P: £20, £31
TI 486DX4-100-ES
/ G100-WR / G100-GA / GT100-WR
Rebranded Cyrix Cx486DX4-100GP/GP4.
33 MHz FSB, 3x multiplier, 8KB L1 cache, 3.45V.
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £9.05
Typical prices late-2020 not incl. P&P: £15.50
ST 486DX-33 Rebranded Cyrix Cx486DX-33/DX-V33.
**MISSING FROM COLLECTION**
ST 486DX-40 Rebranded Cyrix Cx486DX-40GP.
**MISSING FROM COLLECTION**
ST 486DX2-40 **MISSING FROM COLLECTION**
ST 486DX-50 Rebranded Cyrix Cx486DX-50GP.
25 MHz FSB, 5V.
**MISSING FROM COLLECTION**
ST 486DX2-50 Rebranded Cyrix Cx486DX2-50.
25 MHz FSB, 2x multiplier, 8KB L1 cache, 5V.
**MISSING FROM COLLECTION**
ST486DX2-66GS/66H1 Rebranded Cyrix Cx486DX2-66GP/V66GP.
33 MHz FSB, 2x multiplier, 8KB L1 cache, 5V.
Bought for £10.60 in 2017.
Typical prices mid-2020 not incl. P&P: £10.00
Typical prices late-2020 not incl. P&P: £10.75
Typical prices mid-2021 not incl. P&P: £11, £14, £15
ST 486DX4-V75HS Rebranded Cyrix Cx486DX4-75GP.
25 MHz FSB, 3x multiplier, 8KB L1 cache, 5V.
**MISSING FROM COLLECTION**
ST 486DX2-80GS Rebranded Cyrix Cx486DX2-80/DX2-V80GP.
40 MHz FSB, 2x multiplier, 8KB L1 cache, 5V.
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £9.45, £12.13
Typical prices late-2020 not incl. P&P: £10
Typical prices mid-2021 not incl. P&P: £42
ST 486DX4-100 (-V10HS) Rebranded Cyrix Cx486DX4-100GP/GP4.
33 MHz FSB, 3x multiplier, 8KB L1 cache.
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £11.75, £30.74, £45.23
Typical prices late-2020 not incl. P&P: £12.75, £22
Typical prices mid-2021 not incl. P&P: £15
ST 486DX4-120 (-V12HS) 40 MHz FSB, 3x multiplier, 8KB L1 cache.
**MISSING FROM COLLECTION**
UMC U5S Super 40
(486SX-40)
40 MHz FSB, 8KB L1 cache, 5V. The very first CPU I bought as a component for a self-build rather than buying a full PC. Not sure I can backup the claim here that it runs at 30-48% faster than an Intel 486 clock for clock, but a great chip nonetheless.



Socket 5 Processors

Intel Pentium (P5) 60
(March 1993)
60 MHz core clock, 60 MHz FSB, 1x multiplier. 5V. 16KB L1 WB cache.
**MISSING FROM COLLECTION**
Intel Pentium (P5) 66
(March 1993)
66 MHz core clock, 66 MHz FSB, 1x multiplier. 5V. 16KB L1 WB cache.
**MISSING FROM COLLECTION**
Intel Pentium (P54C) 75
(October 1994)
(x3) 75 MHz core clock, 50 MHz FSB, 1.5x multiplier, 3.3V. 16KB L1 WB cache. CPUID = 0525 Codename P54C.

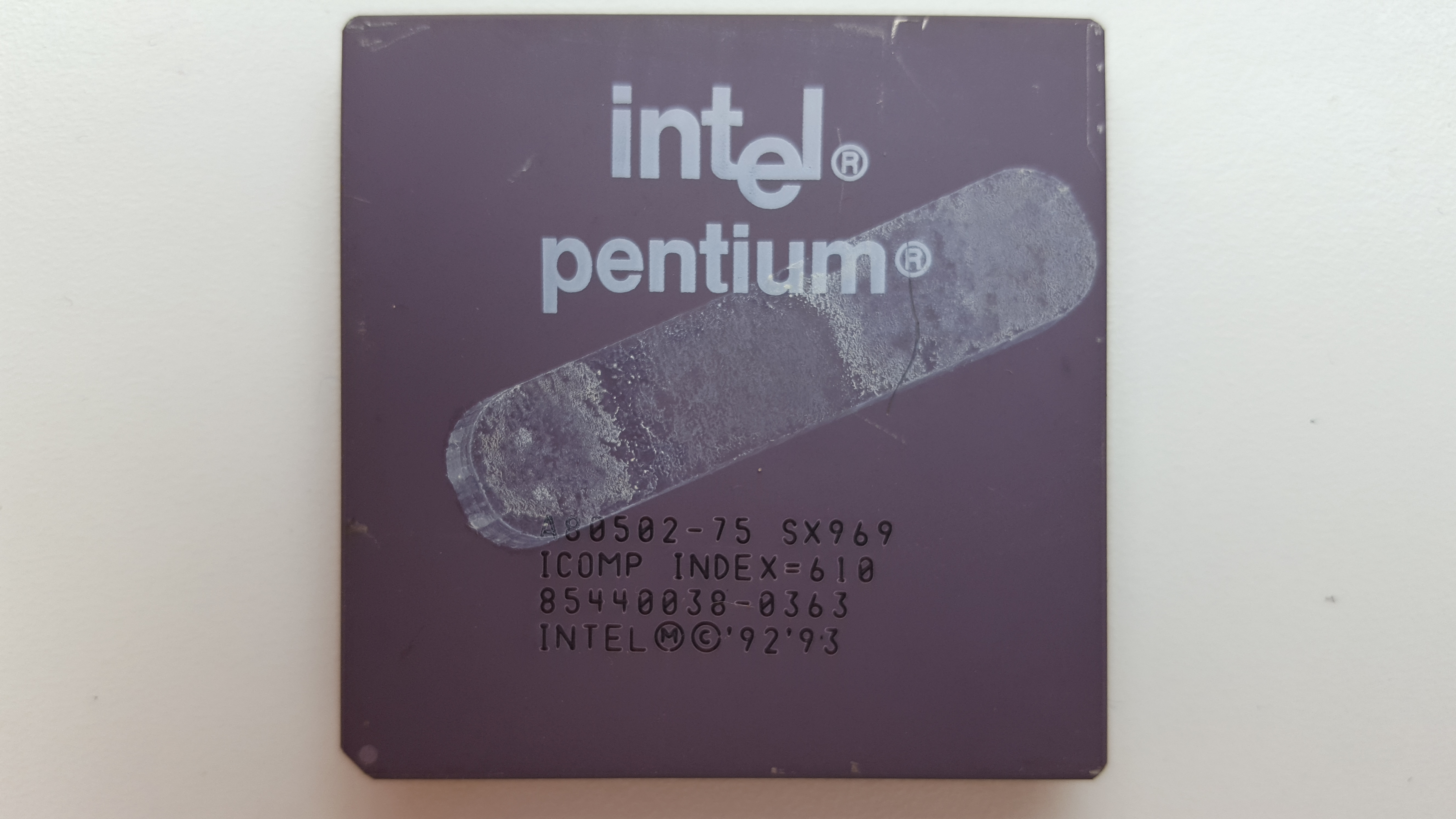

The first of these is part number A80502-75 SX969.
The second of these is also the same part number, but has a sticker on that reads 'MC 16209'.
Intel Pentium (P54C) 90
(March 1994)
90 MHz core clock, 60 MHz FSB, 1.5x multiplier. 3.3V. 16KB L1 WB cache.
**MISSING FROM COLLECTION**
Intel Pentium (P54C) 100
(March 1994)
100 MHz core clock, 66 or 50 MHz FSB, 1.5x or 2x multiplier. 3.3V. 16KB L1 WB cache.
**MISSING FROM COLLECTION**



Socket 7 Processors

Intel Pentium (P54C) 120
(March 1995)
(x3) 120 MHz clock, 60 MHz FSB, 2x multiplier. 3.3V
The first of these is part number A80502-120 with sSpec of SX994 (CPUID=0525h, Stepping=C2, Core=3.4-3.6V). This CPU has reduced minimum valid timings on some output pins.

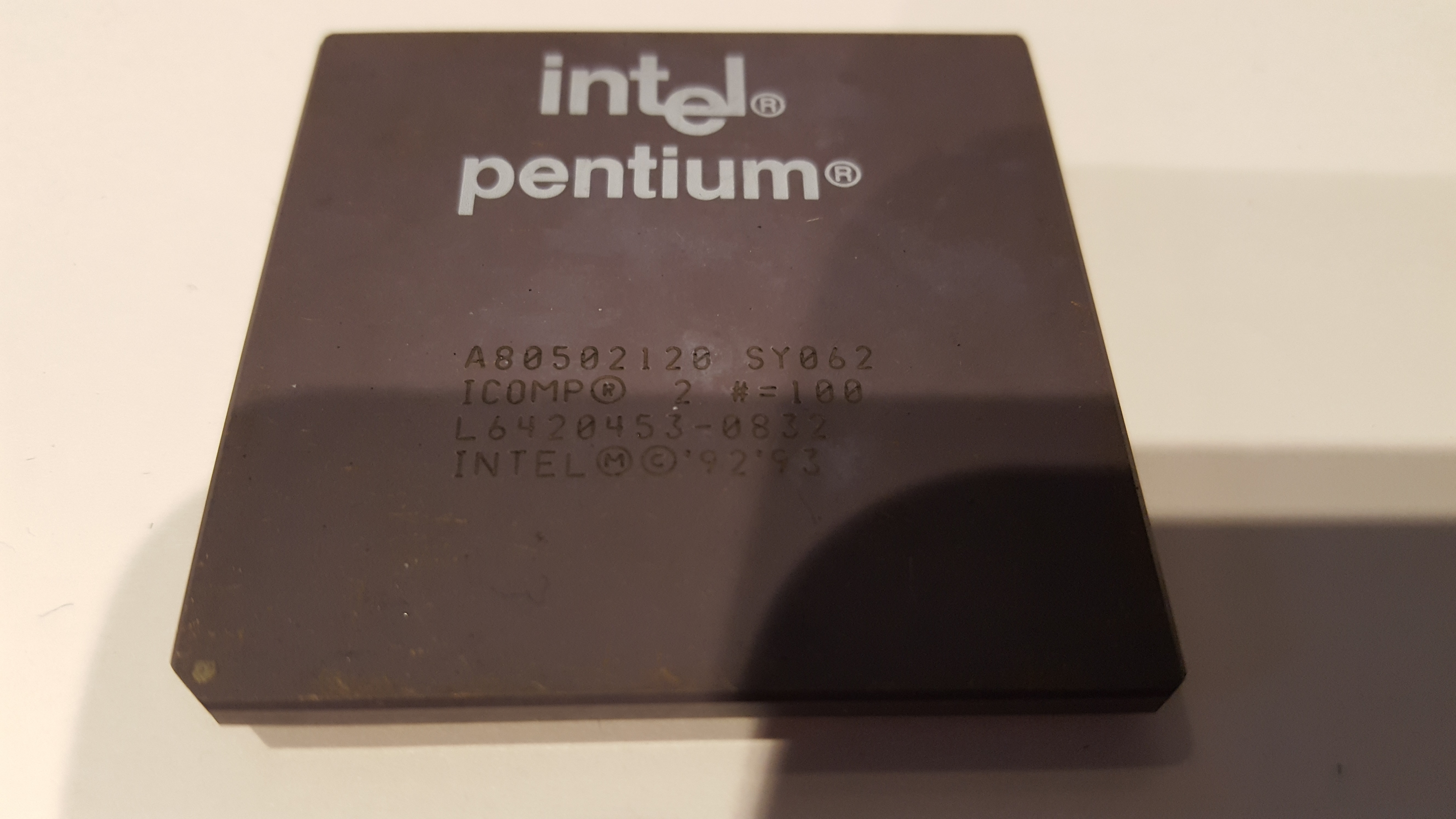

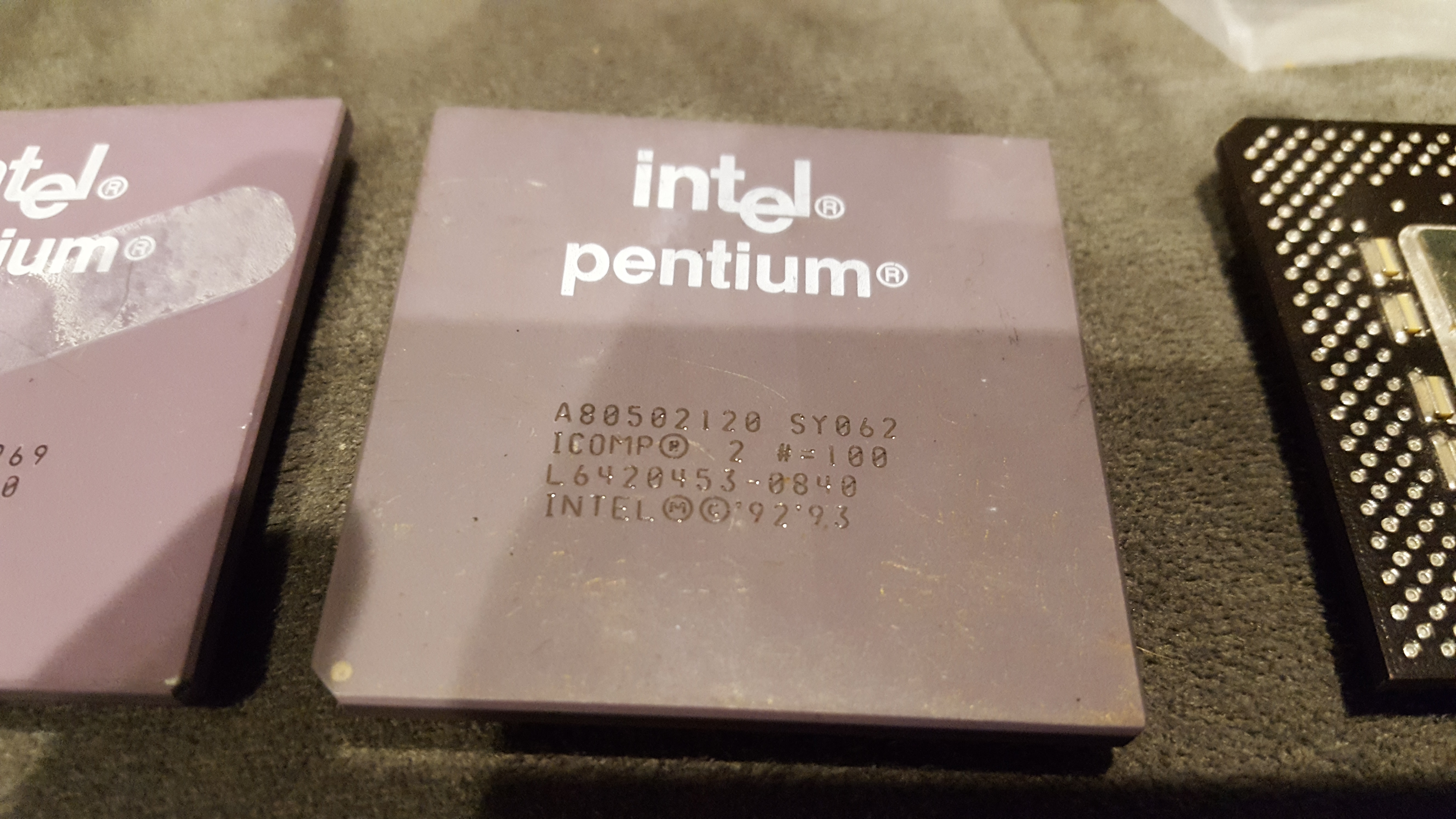

The second of these is part number A80502120 with sSpec of SY062 (CPUID=052Ch or 252Ch, Stepping=12, Core=3.3V). This version got an improved FPU with debugging extensions, machine check exception, model-specific registers, page-size extensions (4MB pages), a time-stamp counter and virtual 8086-mode enhancements.
Intel Pentium (P54C) 133
(June 1995)
**MISSING FROM COLLECTION**
Intel Pentium (P54C) 150
(January 1996)
**MISSING FROM COLLECTION**
Intel Pentium (P54C) 166
(January 1996)
**MISSING FROM COLLECTION**
Intel Pentium (P54C) 200
(June 1996)
**MISSING FROM COLLECTION**
Intel Pentium (P55C) MMX 166
(January 1997)

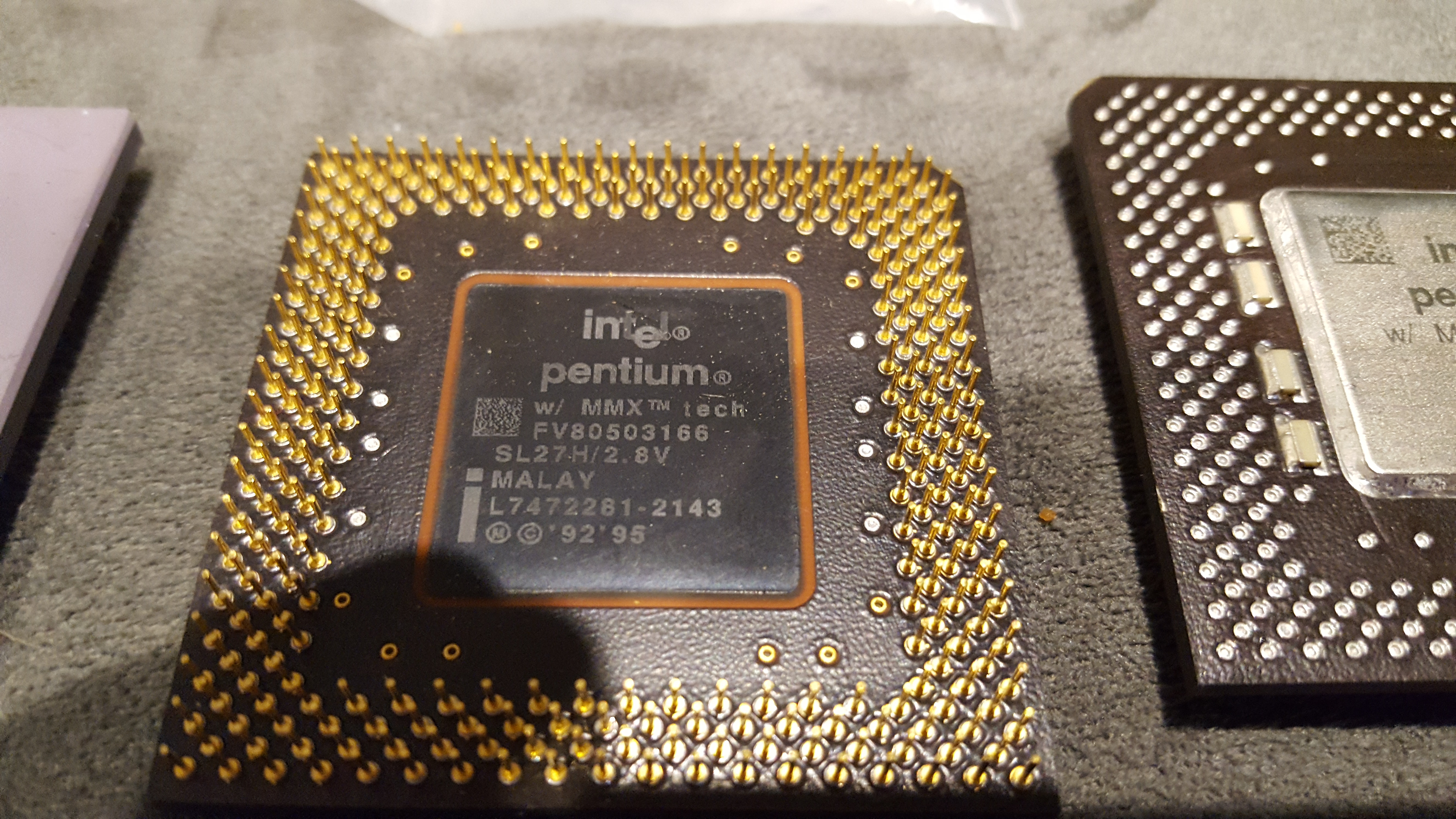

SL27H (FV80503166) 2.8V. 166 MHZ clock, 66 MHz FSB, 2.5x multiplier. 32KB L1 WB cache.
Bought for £7.39 in 2018.
Intel Pentium (P55C) MMX 200 SL27J (FV80503200) 2.8V. 200 MHZ clock, 66 MHz FSB, 3x multiplier. 32KB L1 WB cache.
Bought for £7.82 in 2018.
Intel Pentium (P55C) MMX 233 SL27S (FV80503233) 2.8V. 233 MHZ clock, 66 MHz FSB, 3.5x multiplier. 32KB L1 WB cache.
**MISSING FROM COLLECTION**
Cyrix Cx6x86 P133+GP 100 MHz clock
**MISSING FROM COLLECTION**
Typical prices mid-2021 not incl. P&P: £18

Cyrix Cx6x86 P150+GP 120 MHz clock
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £19.00
Typical prices late-2020 not incl. P&P: £7.50, £14
Typical prices mid-2021 not incl. P&P: £8.50

Cyrix Cx6x86 166GP+ 133 MHz clock
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £16.10
Typical prices late-2020 not incl. P&P: £10, £12
Cyrix 6x86MX PR200 66 MHz bus
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £13.50
Typical prices mid-2021 not incl. P&P: £3, £12, £32
Cyrix 6x86MX PR233 188 MHz clock, 75 MHz bus
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £30, £9
Typical prices mid-2021 not incl. P&P: £12, £15
Cyrix MII-300GP 225 MHz clock, 75 MHz FSB with 3x multiplier. 2.9V
Typical prices late-2020 not incl. P&P: £12.95
Typical prices mid-2021 not incl. P&P: £10, £12
Cyrix Cx6x86 333GP 263 MHz clock, 75 MHz FSB with 3.5x multiplier. 2.9V
Typical prices mid-2020 not incl. P&P: £14.99
Cyrix MII-333GP 263 MHz clock, 75 MHz FSB with 3.5x multiplier. 2.9V
Typical prices late-2020 not incl. P&P: £14.99, £12.95, £27, £8
Typical prices mid-2021 not incl. P&P: £16, £24
Cyrix Cx6x86 366GP 250 MHz clock, 100 MHz FSB with 2.5x multiplier. 3.5V
Cyrix MII-366GP 250 MHz clock, 100 MHz FSB with 2.5x multiplier. 2.9V
Typical prices mid-2021 not incl. P&P: £18
IBM 6x86 P150+ 120 MHz core clock, 60 MHz FSB, 2x multiplier. 3.3V.
Model Number: IBM26 6x86L-2V2P150GE
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £15
IBM 6x86L PR150+ 120 MHz core clock, 60 MHz FSB, 2x multiplier. 2.8V.
Model Number: IBM26 6x86L-2VAP150GB
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £12.95
IBM 6x86 P166+ 133 MHz core clock, 66 MHz FSB, 2x multiplier. 3.3V.
Model Number: IBM26 6X86-2V2P166GE
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £12.95
IBM 6x86L PR166+ 133 MHz core clock, 66 MHz FSB, 2x multiplier. 2.8V.
Model Number: IBM26 6X86L-2VAP166GB
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £25
IBM 6x86L PR200+ 150 MHz core clock, 75 MHz FSB, 2x multiplier. 2.8V.
Model Number: IBM26 6x86L-2VAP200GB
Bought for £12.92 in 2013.
Typical prices late-2020 not incl. P&P: £18
IBM 6x86MX PR166
(May 1997)
166 MHz core clock but rated at 200 MHz. 2.9V. 64 KB L1 WB cache.
Model number IBM26x86MX-AVAPR166GA = 66 MHz FSB with 2.0x mult.
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £13
IBM 6x86MX PR200
AV
BV
(May 1997)
166 MHz core clock but rated at 200 MHz. 2.9V. 64 KB L1 WB cache.
Model numbers:
IBM26x86MX-AVAPR200GB = 75 MHZ FSB with 2.0x multiplier.
IBM26x86MX-BVAPR200GC = 66 MHz FSB with 2.5x multiplier.
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £13, £10, £11, £18
IBM 6x86MX PR233
BV
CV
(May 1997)
188 MHz core clock but rated at 233 MHz. 2.9V. 64 KB L1 WB cache.
Model numbers:
IBM26x86MX-BVAPR233GC = 75 MHz FSB with 2.5x multiplier.
IBM26x86MX-CVAPR233GF = 66 MHz FSB with 3x multiplier.
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £13, £12
IBM 6x86MX PR266
BV
(May 1997)
200(?) MHz core clock but rated at 266 MHz. 2.9V. 64 KB L1 WB cache.
Model numbers:
IBM26x86MX-BVAPR266GE = 83 MHz FSB with 2.5x multiplier.
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £13, £12
IBM 6x86MX PR300
CV
DV
(May 1997)
233 MHz core clock but rated at 300 MHz. 2.9V. 64 KB L1 WB cache.
Model numbers:
IBM26x86MX-CVAPR300GF = 75 MHz FSB with 3.0x multiplier.
IBM26x86MX-CVAPR300HF = 75 MHz FSB with 3.0x multiplier.
IBM26x86MX-DVAPR300HF = 66 MHz FSB with 3.5x multiplier
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £13
IBM 6x86MX PR333
CV
DV
(May 1997)
250 MHz core clock but rated at 333 MHz. 2.9V. 64 KB L1 WB cache.
Model numbers:
IBM26x86MX-CVAPR333HF = 83 MHz FSB with 3x multiplier.
IBM26x86MX-DVAPR333HF = 75 MHz FSB with 3.5x multiplier.
**MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £13
ST 6x86 P150+ **MISSING FROM COLLECTION**
Typical prices late-2020 not incl. P&P: £13





AMD K6 and K6-2 codes:

"A"=321-pin Ceramic PGA, "B"=360-ball Ceramic BGA package.
"C"=2.0V core, "D"=2.1V core, "F"=2.2V core, "L"=2.9V core, "N"=3.2V core, "P"=3.3V core
"R"=70 deg.C max. operating temp, "Z"=85 deg.C max. operating temp.

AMD K6-166
ALR
ALYD
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £9.62, £26.00, £5.00, £8.82
AMD K6-200
AFR
ALR
ALYD
66 MHz FSB, 3x multiplier. 64KB L1 cache.
Mine has a date code of week 36, 1997. Bought for £13.04 in 2019.
Typical prices mid-2020 not incl. P&P: £8.99
AMD K6-233
AFR
ANR
APR
66 MHz FSB, 3.5x multiplier. 64KB L1 cache.
Mine has a date code of week 4, 1998. Bought for £4.49 in 2018.
Typical prices mid-2020 not incl. P&P: £12.99, £12.00
AMD K6-266
AFR
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £6.99
AMD K6-300
AFR
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P:
AMD K6-2 333
66 MHz FSB, 5x multiplier. 64KB L1 cache.
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £6.99

AMD K6-2 350
AFR
(x2) 100 MHz FSB, 3.5x multiplier. 64KB L1 cache. 2.2V
1st CPU came bundled with an M590 motherboard I bought in 2014 for £6.99.
2nd CPU was bought for £4.94 in 2020.
AMD K6-2 400
AFR
66 or 100 MHz FSB, 6x or 4x multiplier. 64KB L1 cache. 2.2V
Typical prices mid-2020 not incl. P&P: £8.99, £6.95
AMD K6-2 450
AFX
100 MHz FSB, 4.5x multiplier. 64KB L1 cache. 2.2V
Bought for £4.20 in 2014.
Typical prices mid-2020 not incl. P&P: £16.00, £19.37
AMD K6-2 475
ACK
95 MHz FSB, 5x multiplier. 64KB L1 cache. 2.0V
Came on a Gigabyte GA-5AX mobo bought for £109 in Sep 2020.
AMD K6-2 500
AFX
(x2) 100 MHz FSB, 5x multiplier. 64KB L1 cache. 2.2V
Bought for £13.44 in 2017.
Bought for £11.46 in 2018.
Typical prices mid-2020 not incl. P&P: £11.99, £8.82, £10.99, £12.00
AMD K6-2 533
AFX
97 MHz FSB, 5.5x multiplier. 64KB L1 cache. 2.2V. These apparently run just fine at 100 MHz FSB and 5.5x multiplier, so good for 550 MHz.
Bought for £14.25 in 2020.
Typical prices mid-2020 not incl. P&P: £14.99
AMD K6-2 550
AGR
**MISSING FROM COLLECTION**
100 MHz FSB, 5.5x multiplier. 64KB L1 cache. 2.3V
Typical prices mid-2020 not incl. P&P: £14.99
AMD K6-2+ 550
AGR
**MISSING FROM COLLECTION**
100 MHz FSB, 5.5x multiplier.
Typical prices mid-2020 not incl. P&P: ?
AMD K6-III 450
AHX

**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £39.00, £57.89, £24.26
AMD K6-III+ 400
ATZ
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £113.07, £108.54
AMD K6-III+ 450
ACZ
**MISSING FROM COLLECTION**
Typical prices mid-2020 not incl. P&P: £42.86




Ancillary Chips

D8237AC Bought in Nov 2020 for £2.68 for 5 chips. The D8237AC is a DMA Controller chip found on the original IBM PC and XT motherboards.
D8253C-2 Bought in Nov 2020 for £2.53. The D8253C is a Programmable Interval Timer IC used on many PC and XT motherboards.
D8255AC Bought in Nov 2020 for £3.34 for 5 chips. The D8255AC is a Programmable Peripheral Interface found on the original IBM PC motherboard and many XT clones.
P8259A Bought in Nov 2020 for £5.00. The P8259A is an Interrupt Controller chip
