Bali 32

The Bali 32 was Western Digital's budget offering of their new 1994 "island" line of Paradise graphics accelerator cards, sold alongside the mid-range Bahamas 64 and premium Barbados 64.


Released August 1994
Bus VESA Local Bus or PCI
Chipset ARK Logic 1000PV
Standards MDA, Hercules, CGA, EGA, VGA
Memory 1 MB DRAM (32-bit)
Ports 15-pin DSUB (RGB analogue out)
Price At launch: $99 (1 MB)
See Also

It was a 32-bit DRAM-based accelerator card for Windows. Based around the ARK Logic 1000PV graphics chipset, it was released in both VESA Local Bus and PCI variants.

It was sold alongside the mid-range Bahamas 32 graphics card (also available in VLB and PCI) which came in 1 MB or 2MB variants of DRAM video memory and retailed for $199. At the top end was the Barbados 64, which was only available in PCI form, but came with 2 MB of VRAM and retailed for $299. All these cards came with Oasis software utilities that enabled picture-in-picture capabilities as well as switching resolutions and refresh rates on the fly.

Western Digital did release a Bali 64 later on (around 1996) which ran on the PCI bus and still came with 1 MB of video memory. it retailed for $79.


Board Revisions

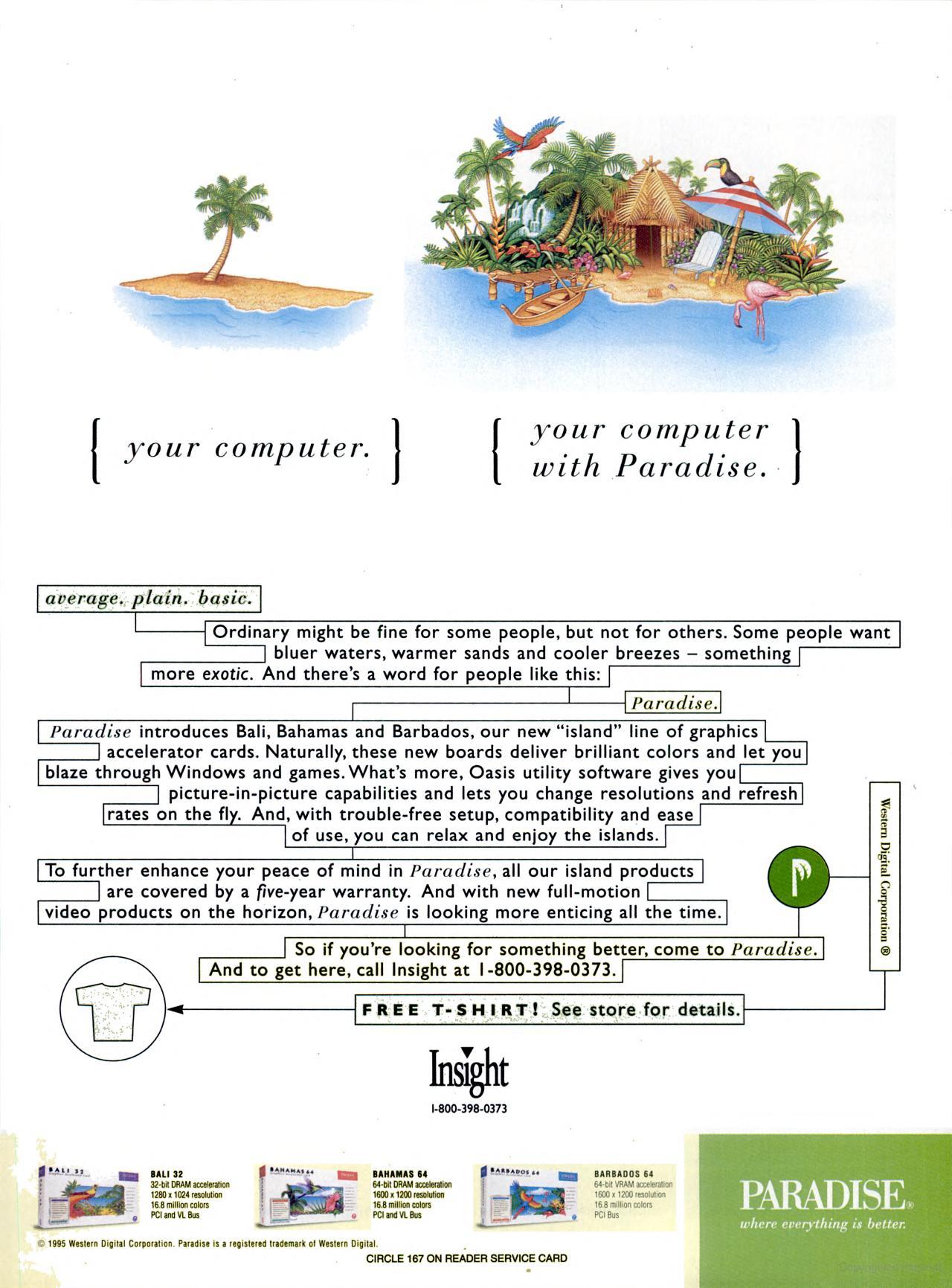

In the Media


Setting it Up


Operation Manual

Get in touch if you can provide this missing item!

Original Utility Disk

Get in touch if you can provide this missing item!



More Pictures
