9FX Motion 331
The Motion 331 was a later addition to Number Nine's "9FX" series from 1995, launching the following year. It was based on the then new S3 Trio64V+ chipset.
|
Released | 1996 |
| Bus | VESA Local Bus or PCI | |
| Chipset | S3 Trio64V+ (86C325) | |
| Standards | MDA, Hercules, CGA, EGA, VGA | |
| Memory | 1 MB DRAM (expandable to 2 MB), or 2 MB DRAM | |
| Ports | 9-pin DSUB (RGB analogue video out) | |
| Part # | 00-331-005-001, 00-331-006-001, 00-331-006-002, PC00JPSO-04 | |
| FCC ID | JF9-S3765PCI | |
| RAMDAC | (embedded in S3 chip) | |
| Price | At launch: | |
| See Also | Number Nine Vision 330 |

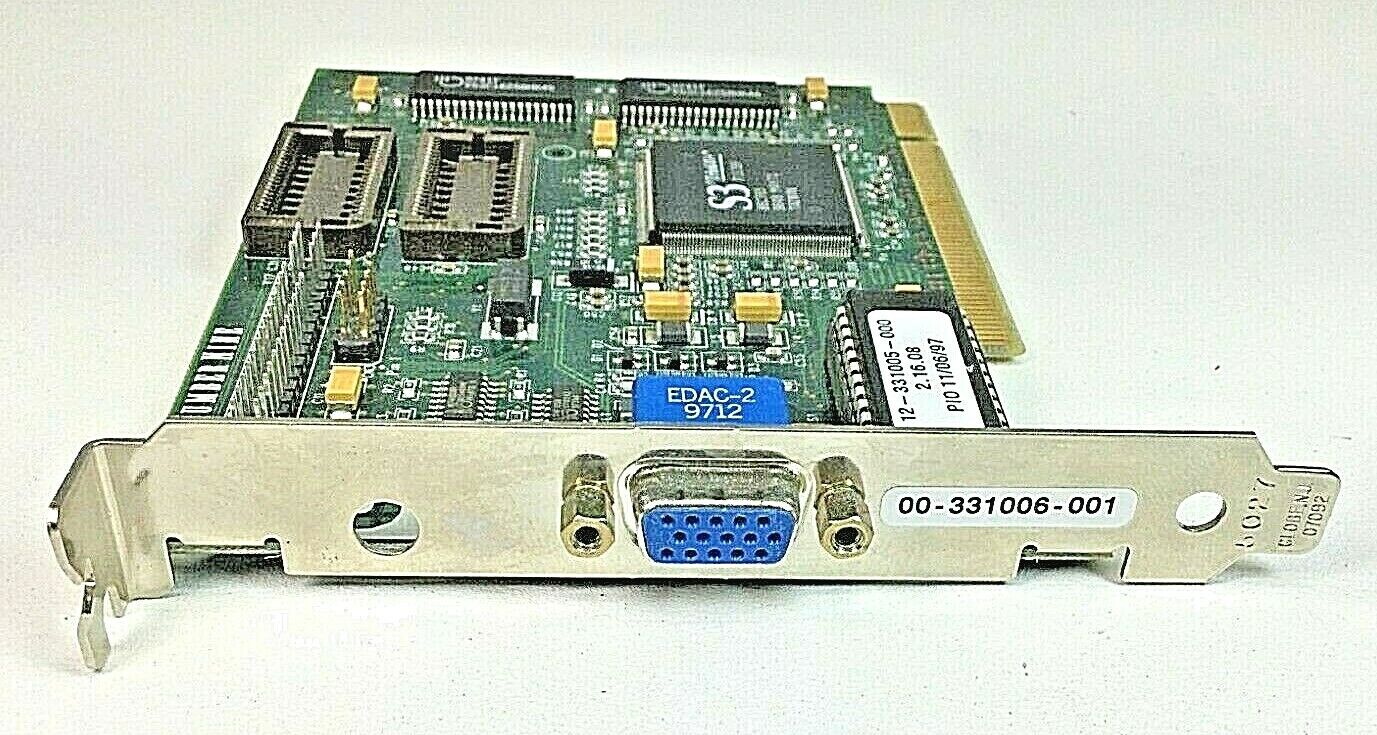

The picture above shows the 2 MB DRAM version that was factory-fitted. The pics below show the 1 MB DRAM version with sockets for expansion to 2 MB.
Board Revisions
Known BIOS versions for the Motion 311 include: 2.16.04MO, 2.16.08, 2.18.08, and 2.36.07
Competition
In the Media
Setting it Up
Downloads
Operation Manual Get in touch if you can provide this missing item! |
Original Utility Disk Get in touch if you can provide this missing item! |
|
