DTK was a manufacturer of motherboards for the IBM PC and its compatibles during the DOS era.







PAM-0054I

Year: 1996
Type: Socket 7
Form Factor: Baby AT
Chipset: Intel 430FX Triton I
Slots: 5 x ISA (16-bit), 3 x PCI
Memory: 4 x 72-pin SIMM (2 banks), 128 MB max.
BIOS: Award 4.50PG
Known Revisions:

CPU Support: Intel Pentium P54C, Cyrix 6x86, AMD 5x86. All from 75 - 166 MHz.
Supports bus speeds of 25, 33 and 40 MHz.

User Manual
Jumper Settings

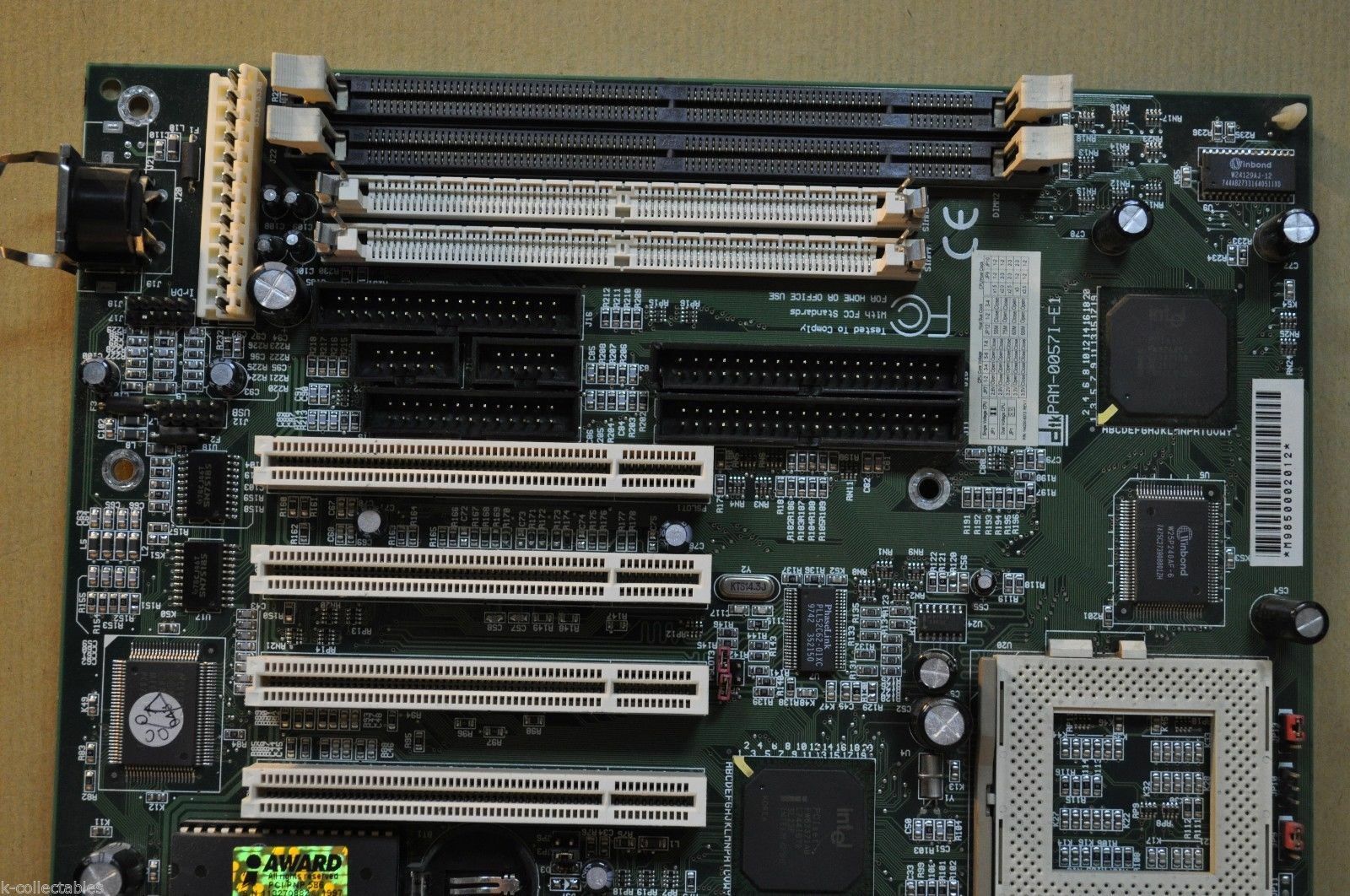

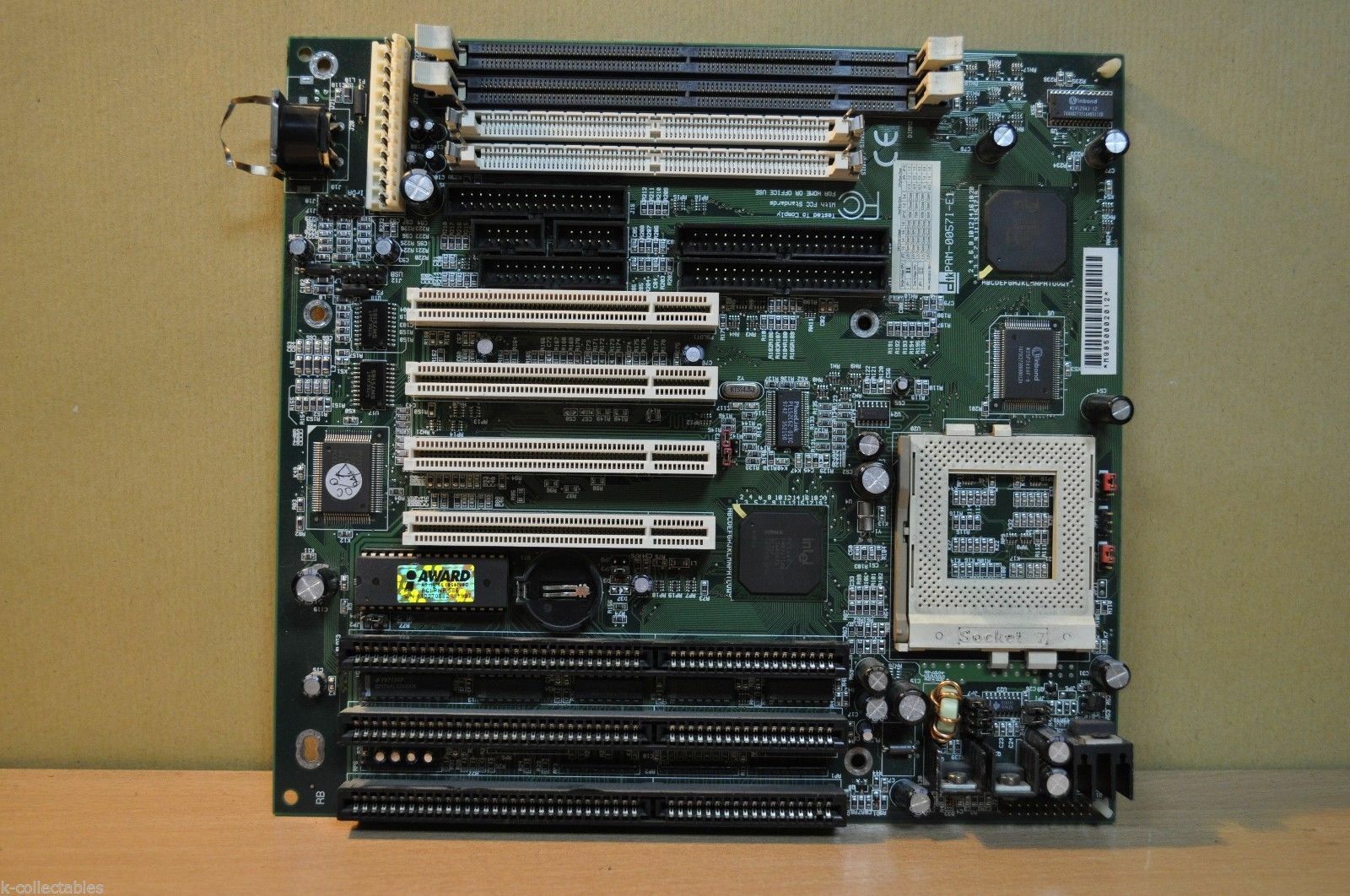

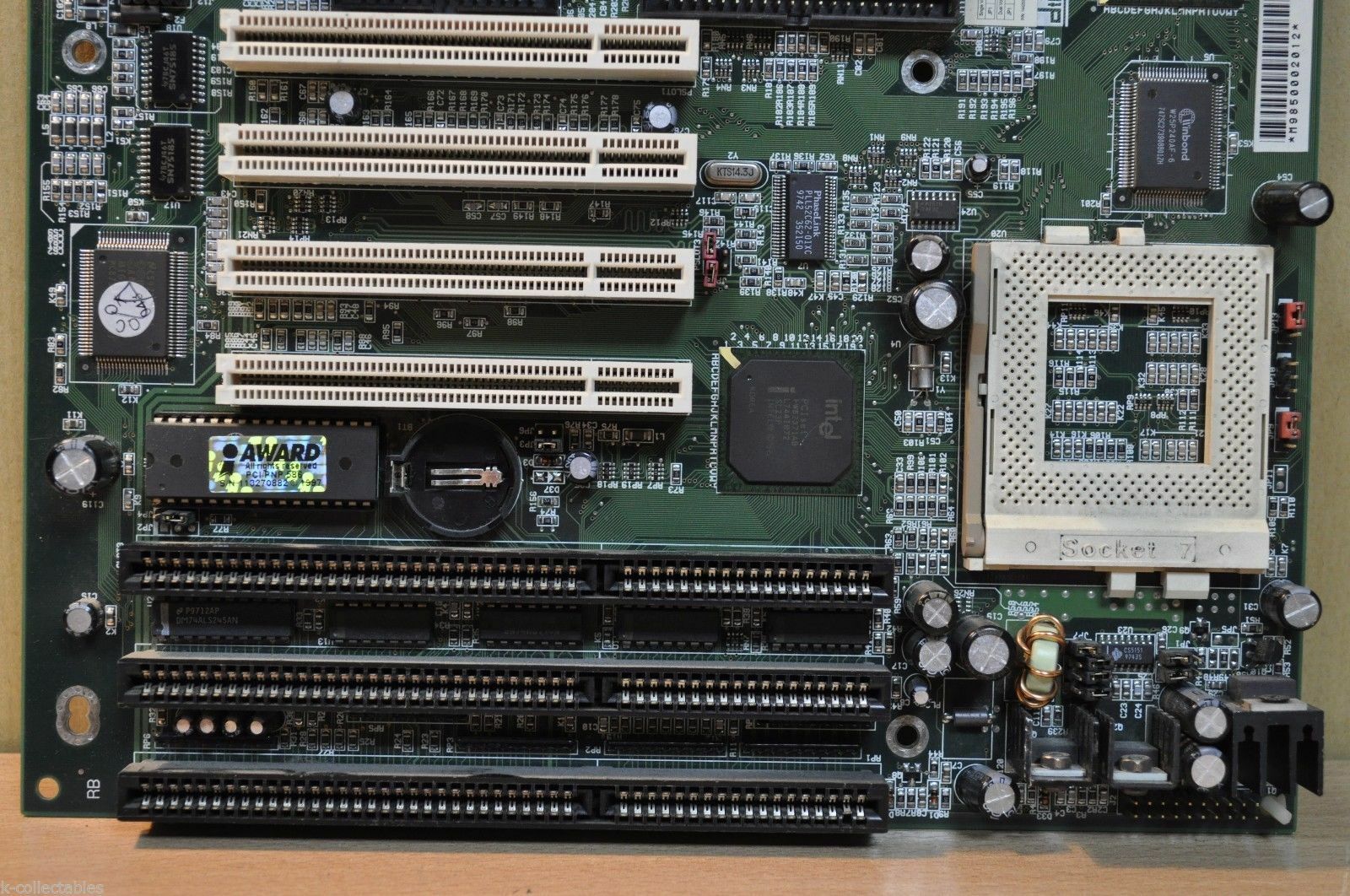

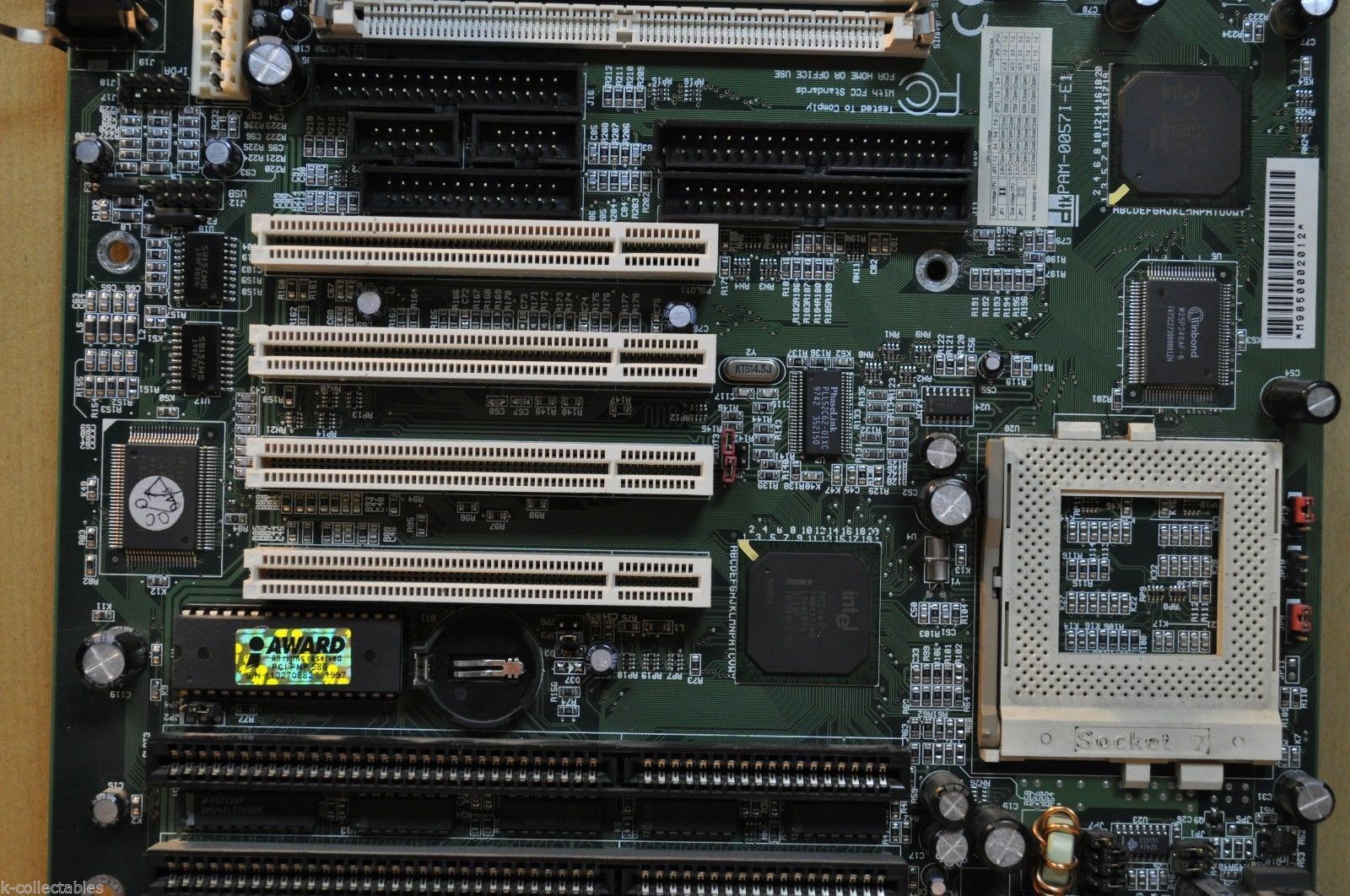

PAM-0057I-E1

Year: 1996
Type: Socket 7
Form Factor: Baby AT
Chipset: Intel 430TX (Triton IV)
Slots: 3 x ISA (16-bit), 4 x PCI
Memory: 2 x 72-pin SIMM (1 bank), 2 x 168-pin DIMM
BIOS: Award 4.50PG
Known Revisions: 1

More Images

PPM-1630C

Year: ?
Type: ?
Form Factor: Baby AT
Chipset: ?
Slots:
Memory:
BIOS:
Known Revisions:
